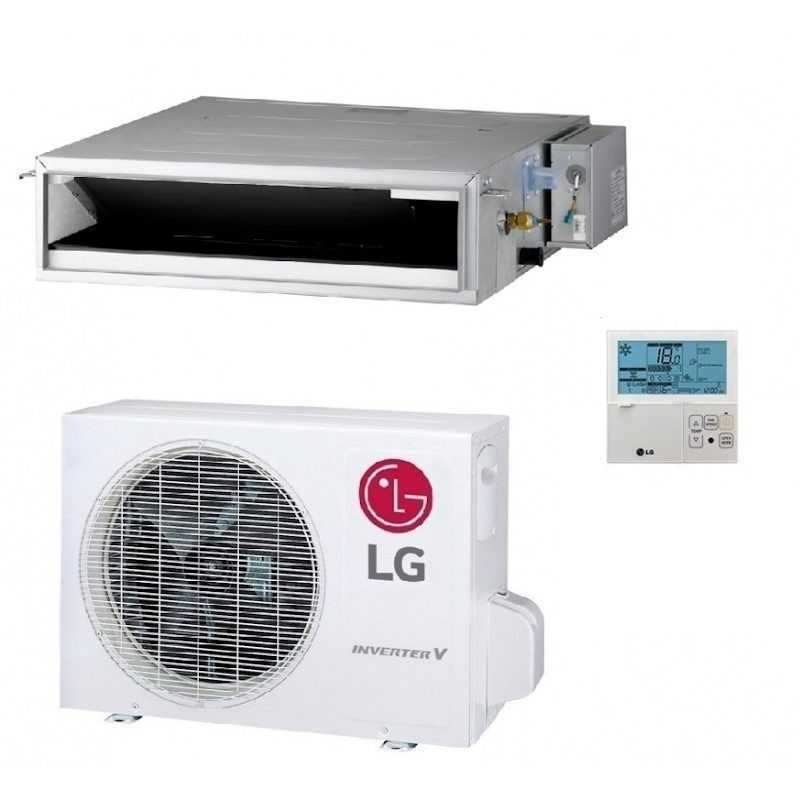

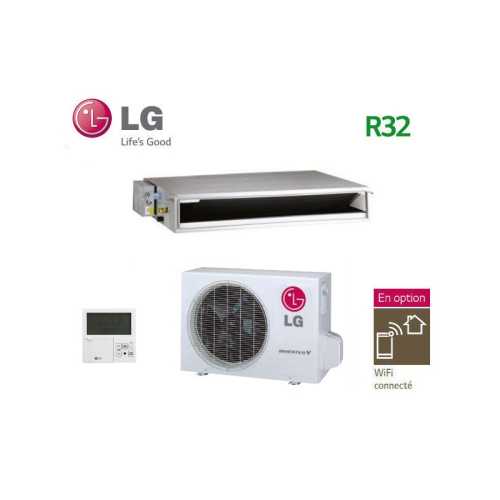

Ducted Air Conditioner Low silhouette LG CL09F CONFORT
Air conditioning system with a low silhouette conduit with 2.8 kW nominal capacity, specially designed for intimate spaces with extremely limited false ceilings. This team of the CONFORT range combines ultra compact design (only 200mm high) with energy efficiency A+/A+ and advanced technology, ideal for intimate studies, small offices and very compact commercial spaces that require discrete professional air conditioning.
- ▷ Low silhouette design with only 200mm height for false minimum ceilings
- ▷ Rated power of 2.8 kW in cold and 3.2 kW in heat for intimate spaces
- ▷ Higher energy efficiency with SEER 5,20 and SCOP 4,00 (A+/A+)
- ▷ Ultra silent operation with only 22/20/19 dB
- ▷ Fully compact system with outdoor Unit ultra-reduced
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL09F CONFORT + UUA1.UL0
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
LG CL09F CONFORT+ Low-Profile Ducts
Referencia: KITCONDCL09
€1,207.14
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Low silhouette LG CL09F CONFORT
Air conditioning system with a low silhouette conduit with 2.8 kW nominal capacity, specially designed for intimate spaces with extremely limited false ceilings. This team of the CONFORT range combines ultra compact design (only 200mm high) with energy efficiency A+/A+ and advanced technology, ideal for intimate studies, small offices and very compact commercial spaces that require discrete professional air conditioning.
- ▷ Low silhouette design with only 200mm height for false minimum ceilings
- ▷ Rated power of 2.8 kW in cold and 3.2 kW in heat for intimate spaces
- ▷ Higher energy efficiency with SEER 5,20 and SCOP 4,00 (A+/A+)
- ▷ Ultra silent operation with only 22/20/19 dB
- ▷ Fully compact system with outdoor Unit ultra-reduced
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL09F CONFORT + UUA1.UL0
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioned by Low Silueta Behavior LG CL09F CONFORT is a high quality air conditioning system specifically designed for intimate spaces with extreme height limitations on false ceilings. This team of the Free Combination CONFORT range LG it combines an ultra compact design of only 200mm high with a nominal power of 2.8 kW in cold and 3.2 kW in heat, offering an exceptional modulant capacity ranging from 1.20 to 3.20 kW in cooling and from 1.50 to 3.60 kW in heating.

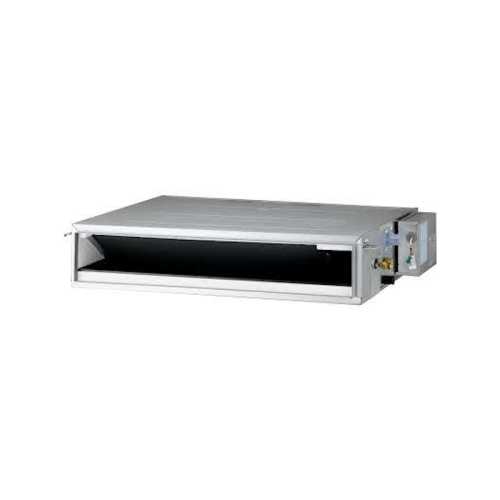

Composed of indoor Unit CL09F low silhouette and outdoor Unit UUA1.UL0, this system stands out for its unique installation capacity in spaces with maximum height and space restrictions, keeping static pressure up to 150 Pa and pipe lengths up to 30 meters. La indoor Unit, with ultra-compact dimensions of 900 x 200 x 700 mm, offers both horizontal and vertical installation flexibility through the ABDAMA0 accessory, providing an airflow of up to 8 m3/min with exceptional sound levels of 22/20/19 dB according to the selected speed.

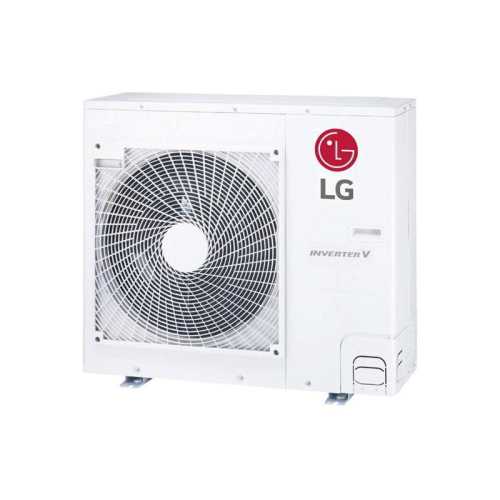

La outdoor Unit UUA1.UL0, with its ultra compact dimensions of 770 x 545 x 288 mm and optimized weight of 33.3 kg, incorporates advanced technology to maximize thermal exchange in minimal spaces. With an extended range of operation ranging from -10°C to 50°C in cooling and from -10°C to 18°C in heating, this system uses only 1.0 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising professional performance that demand the most intimate applications with the most severe architectural restrictions on the market.
Main features
📏
Low Silueta Ultra Compact design
Only 200mm high vs 245mm standard, the definitive solution for the most intimate spaces with absolute height limitations.
▪
Intimate Power Ideal
Nominal power of 2,8 kW in cold and 3.2 kW in heat, with intelligent modulation from 1,20-3,20 kW in cooling and 1,50-3,60 kW in heating.
📐
Complete Ultra Reduced System
Outdoor Unit ultra compact (770x545x288 mm) and minimum weight (33.3 kg), ideal for the most limited outdoor spaces.
🔇
Exceptional Silence
Extraordinary sound levels of 22/20/19 dB indoor Unit, the lowest in the market for intimate spaces.
🔄
Dual Compact Installation
Horizontal or vertical installation capacity by ABDAMA0 accessory, adapting to the most restrictive configurations.
🌱
Sustainable Efficiency Maximum
Refrigerant Gas Ecological R32 with 1.0 kg optimized load and A+/A+ rating for maximum sustainability in compact format.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CL09F CONFORT + UUA1.UL0 |
| Cold Capacity (Mín-Nom-Máx) | 1,20 - 2,80 - 3,20 kW |
| Heat capacity (Mín-Nom-Máx) | 1.50 - 3.20 - 3.60 kW |
| EER / COP | 2,95 / 3,60 |
| SEER / SCOP | 5,20 / 4,00 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 200 x 700 mm (low silhouette) |
| Dimensions Outdoor Unit (AnxAlxProf) | 770 x 545 x 288 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 22 / 20 / 19 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 49 / 52 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 8 / 6,5 / 5 m3/min |
| Air flow rate Outdoor Unit | 28 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.0 kg |
| Length Tuberia (Min/Máx) | 5 / 30 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 26.5 kg |
| Weight Outdoor Unit | 33.3 kg |
| Vertical Installation | ABDAMA0 |
Benefits of Low Silueta Air Conditioning LG CL09F CONFORT
✓
Ideal solution for intimate spaces with extreme limitations
With only 200mm high and 2.8 kW power, it is the perfect choice for intimate studies, very small individual offices and compact commercial spaces in buildings with false ceilings absolutely limited where other equipment is impossible to install.
✓
Absolute silence unmatched
Its exceptional sound levels (since 19 dB) represent the most absolute silence of the market, ideal for intimate professional studies, private consultations and spaces where silence defines the experience of quality and concentration.
✓
Fully compact system without commitments
The combination of indoor Unit low silhouette (200mm), outdoor Unit ultra compact (770x545x288 mm) and dual installation allows to air the most intimate spaces where the installation seemed architecturally impossible.
✓
Higher energy efficiency in compact format
CONFORT technology LG manages to maintain A+/A+ and SEER 5.20 with eco-friendly R32 coolant in the most compact format of the market, ensuring sustainability without compromising performance.
Why choose the Air Conditioning Low Silueta LG CL09F CONFORT?
Main applications
️
Historic Spaces Íntimos
Small studies in heritage buildings where architectural limitations are absolute and any structural modification is prohibited or technically impossible.
🏢
Professional Dispatch
Very small individual offices, intimate professional studies and single-person offices in buildings with the greatest restrictions of space and height.
💎
Compact Commercial Spaces
Small specialized shops, intimate shops and compact commercial spaces that require perfectly air-conditioned environment with absolute silence in architecturally limited spaces.
Installation Information
Important considerations:
- La indoor Unit CL09F allows both horizontal and vertical installation using the ABDAMA0 accessory, with ultra low height of only 200mm.
- Maximum length of pipe: 30 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 10 meters of pipe, it is necessary to add only 20 g/m for upper lengths.
- Uniform fridge connections: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2") in both units.
- La outdoor Unit Ultra compact UUA1.UL0 (770x545x288 mm) facilitates installation in the most limited outdoor spaces.
- The condensate pump is included in series, facilitating the evacuation of the condensed water.
- Installation by technical staff specialized in low silhouette systems and certified by LG to ensure proper functioning and maintain the validity of the CONFORT warranty.
The perfect solution for intimate spaces with extreme architectural limitations!
The Ducted Air Conditioner Low silhouette LG CL09F CONFORT represents the most advanced engineering LG to solve the technical challenge of professional air conditioning in just 200mm high with the most absolute silence of the market. Invest in technology LG for unique spaces that deserve great quality.
Request your custom budget today!
KITCONDCL09
Data sheet
- Brand
- LG
- Indoor Unit
- CL09F.N50
- Outdoor Unit
- UUA1.UL0
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 2.500
- Refrigerator capacity (kcal / h)
- 2.150
- Nominal consumption Cold (W)
- 670
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 3.198
- Heat capacity (Kcal / h)
- 2.750
- Nominal heat consumption (W)
- 750
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 18,0
- Weight Outdoor Unit (Kg)
- 33,3
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 20m2 aprox.
- Dimensions UI (ANXFXH) mm
- 900 x 460 x 190
- EU dimensions (anxfxh) mm
- 770 x 288 x 545
