Ducted Air Conditioner Daikin ADEAS125A
SKY AIR Series Active Δ R-32 Δ 12100W Cold Δ SEER 4,73 Δ Maximum Power Δ 150Pa
The Air Conditioning by Conduct Daikin ADEAS125A of the prestigious Sky Air Active Series represents the highest commercial power with state-of-the-art R-32 coolant. Its exceptional capacity of 12100W in cooling and 13500W in heating, combined with a compact design of 245 mm in height and enlarged dimensions of 1400×245×800 mm, makes it the ultimate solution for maximum commercial spaces, malls and light industrial applications. With SEER 4,73 / SCOP 3,50, static pressure up to 150Pa and higher flow up to 34 m3/min, guarantees maximum power and intensive air conditioning in large spaces up to 110 m2.
12️ 12100W Maximum
13500W heat / R-32 maximum
M Maximum Capacity
1400×245×800 mm / 46 kg
Higher Caudal
34 m3/min / 150Pa maximum
▪ SEER 4,73
Maximum efficient power
Key Specifications Maximum Power
Cold capacity: 12100W
Heat capacity: 13500W
Air flow: 34/23.5 m3/min
Static pressure: 50/150 Pa
Sound pressure: 37/32 dB(A)
Refrigerant Gas: R-32 (2.60 kg)
Connections: Ø9,5"/Ø15,9"
Max pipe: 30 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Daikin ADEAS125A SKY AIR
Referencia: ADEAS125A
€3,178.19
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Daikin ADEAS125A
SKY AIR Series Active Δ R-32 Δ 12100W Cold Δ SEER 4,73 Δ Maximum Power Δ 150Pa
The Air Conditioning by Conduct Daikin ADEAS125A of the prestigious Sky Air Active Series represents the highest commercial power with state-of-the-art R-32 coolant. Its exceptional capacity of 12100W in cooling and 13500W in heating, combined with a compact design of 245 mm in height and enlarged dimensions of 1400×245×800 mm, makes it the ultimate solution for maximum commercial spaces, malls and light industrial applications. With SEER 4,73 / SCOP 3,50, static pressure up to 150Pa and higher flow up to 34 m3/min, guarantees maximum power and intensive air conditioning in large spaces up to 110 m2.
12️ 12100W Maximum
13500W heat / R-32 maximum
M Maximum Capacity
1400×245×800 mm / 46 kg
Higher Caudal
34 m3/min / 150Pa maximum
▪ SEER 4,73
Maximum efficient power
Key Specifications Maximum Power
Cold capacity: 12100W
Heat capacity: 13500W
Air flow: 34/23.5 m3/min
Static pressure: 50/150 Pa
Sound pressure: 37/32 dB(A)
Refrigerant Gas: R-32 (2.60 kg)
Connections: Ø9,5"/Ø15,9"
Max pipe: 30 meters
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin ADEAS125A represents the highest expression of power of the prestigious Sky Air Active Series, designed specifically for top commercial applications that demand exceptional thermal capacity for large spaces. With a nominal capacity of 12100W in refrigeration (10400 kcal/h) and 13500W in heating (11610 kcal/h), this system incorporates the innovative R-32 refrigerant technology with a massive load of 2.60 kg which guarantees maximum energy efficiency for this superior power, maintaining SEER 4.73 and SCOP 3.50, ideal for commercial centers, light industrial spaces, large corporate offices and demanding commercial applications of up to 110 m2.
Its optimized design maintains the compact height of 245 mm with enlarged dimensions of 1400×245×800 mm and weight of 46 kg, facilitating the installation in maximum commercial spaces, while its static pressure of up to 150Pa allows the use of extensive and complex flexible ducts, ideal for challenging architectural configurations and distribution in multiple wide areas. La indoor Unit incorporates series drainage pump, automatic air flow adjustment system that measures the volume and static pressure adjusting to the nominal flow regardless of the length of the duct, and F1/F2 communication port included for advanced commercial centralized control.
The exceptional air conditioning capacity operates with higher airflows of 34 m3/min in refrigeration and 23.5 m3/min in heating with three fan speeds, providing quick and efficient air conditioning for maximum commercial spaces. Its optimized operation with sound levels from 32 dB(A) in low mode up to 38 dB(A) indoor Unit and 53 dB(A) outdoors, ensures acceptable commercial environment even with this maximum power, essential for large commercial applications.
La outdoor Unit AZAS125MV1 with SWING compressor incorporates R-32 coolant load of 2.60 kg (TCO2 eq 1.76 / PCA 675), enlarged dimensions of 990×940×320 mm and weight of 70 kg, with premium anti-red protection and thermal exchange systems optimized for this maximum capacity. The system allows maximum bulk installations with maximum pipe length of 30 meters (50 e.g.) and height of up to 30 meters, with Ø9,5" (3/8") liquid and Ø15.9" (5/8") gas, monophasic power supply 220V with 3+T interconnection threads, ensuring simple installation and reliable operation in high thermal demand intensive commercial applications.
Features Sky Air Active Series Maximum Power
🏭
Maximum Commercial Power
12100W cooling and 13500W heating, the maximum capacity of the series, ideal for shopping centers, light industrial spaces and applications up to 110 m2.
📐
Maximum Capacity
1400×245×800 mm with compact height maintained 245 mm, optimized for commercial applications with maximum thermal capacity.
💨
Higher rate 34 m3/min
Higher air flow up to 34 m3/min with static pressure 150Pa for rapid air conditioning of maximum commercial spaces.
🌿
R-32 Maximum Capacity
R-32 technology with 2,60 kg load optimized for maximum thermal capacity of the series, ensuring superior environmental sustainability.
🔇
Optimized operation
Sound levels from 32 dB(A) interior optimized for acceptable commercial environment even with maximum power of 12100W.
▪
Maximum Power Efficiency
SEER 4,73 and SCOP 3,50 optimized for this maximum capacity, ensuring energy efficiency with 12100W power.
Technical Specifications Active Series Maximum Power
| Feature | Value |
|---|---|
| Model Set | ADEAS125A (Sky Air Active Maximum Power Series) |
| Refrigeration capacity | 12100W (10400 kcal/h) |
| Capacity Heating | 13500W (11610 kcal/h) |
| SEER / SCOP | 4,73 / 3,50 |
| Energy label ( Cold/Calor) | - / - |
| Charge Design Refrigeration | 12.10 kW |
| Charge Design Heating (-10oC) | 6,00 kW |
| Consumption Energy Annual Refrigeration | 1497 kWh |
| Consumption Annual Energy Heating | 2366 kWh |
| Frigorific connections | Liquid Ø9,5" (3/8") - Gas Ø15,9" (5/8") |
| Electrical supply | Monof Classic 220V |
| No Hilos Interconnection | 3 + T |
| Maximum Length Tuberia | 30 meters (50 ev.) |
| Maximum level | 30 meters |
| Refrigerant Gas / Charge | R-32 / 2.60 kg (TCO2 eq 1.76 / GWP 675) |
Specifications Indoor Unit ADEA125A
| Feature | Value |
|---|---|
| Refrigeration air flow | 34 m3/min |
| Air flow heating | 23.5 m3/min |
| Pressure Available Nominal/High | 50 / 150 Pa |
| Ventilator speeds | 3 speeds |
| Dimensions (Alto×Ancho×Fondo) | 245×1400×800 mm |
| Weight | 46 kg |
| Sound pressure Refrigeration (A/B) | 37 / 32 dB(A) |
| Sound pressure Heating (A/B) | 38 / 32 dB(A) |
| Level Acoustic Power | 62 dB(A) |

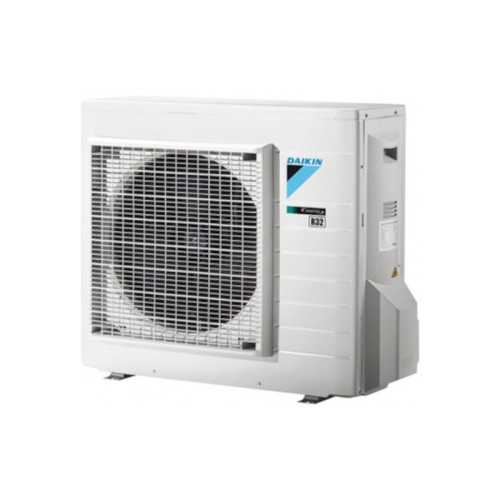

Specifications Outdoor Unit AZAS125MV1
| Feature | Value |
|---|---|
| Refrigeration air flow | 71 m3/min |
| Air flow heating | 82 m3/min |
| Type of Compressor | SWING |
| Dimensions (Alto×Ancho×Fondo) | 990×940×320 mm |
| Weight | 70 kg |
| Sound pressure Refrigeration | 53 dB(A) |
| Sound pressure Heating | 57 dB(A) |
| Level Acoustic Power | 71 dB(A) |
| Charge Refrigerant Gas | 30 meters |
Commercial Advantages Active Series Maximum Power
✓
Maximum commercial power solution
Capacity of 12100W, the maximum of the series, perfectly dimensioned for shopping centers, light industrial spaces and commercial applications of 100-110 m2 that require maximum power.
✓
Upper range for maximum capacity
34 m3/min allow quick and efficient air conditioning of maximum spaces, ensuring homogeneous comfort in demanding commercial applications.
✓
Optimized efficiency for maximum power
SEER 4.73 and SCOP 3.50 specifically optimized for this maximum capacity of 12100W, ensuring energy efficiency in intensive applications.
✓
Compact height maintained
245 mm of height maintained even with maximum capacity, facilitating installation in commercial spaces with height limitations without compromising power.
✓
Large maximum installation
30m pipe (50 equiv.), 30m uneven, drainage pump included and centralized control F1/F2 for maximum complexity commercial installations.
✓
Maximum R-32 technology
2.60 kg of R-32 coolant optimized for maximum thermal capacity of the series, ensuring environmental sustainability in intensive applications.
Commercial applications Maximum scope
🏭
Shopping Centres
Large shopping centers, hypermarkets, large commercial surfaces, large dealerships and maximum retail spaces up to 110 m2.
🏢
Corporate spaces
Complete corporate headquarters, large business centers, massive coworking spaces and top-notch corporate applications.
🏭
Industrial applications
Light industrial ships, air-conditioned warehouses, logistics centers and industrial applications that require maximum air-conditioning.
Advantages of High Power Drive Systems
✓
Homogenous massive air conditioning
With 34 m3/min of flow, it ensures uniform air distribution in larger spaces, eliminating thermally decompensated areas.
✓
Maximum capacity energy efficiency
A single 12100W system is much more efficient than multiple individual units to air large commercial spaces.
✓
Advanced centralized control
Centralized management of all air conditioning from one control point, ideal for complex commercial applications and multizone spaces.
✓
Simplified maintenance
A single unit to air maximum spaces simplifies maintenance and reduces operating costs in intensive commercial applications.
Maximum Power for Large Enlarged Commercial Spaces!
The Daikin ADEAS125A Sky Air Active series represents the maximum power expression with 12100W, 34 m3/min flow, R-32 technology with 2.60 kg and optimized 32dB performance. The ultimate solution for shopping centers, light industrial spaces and commercial applications that demand maximum thermal capacity for spaces up to 110 m2.
Request your budget for maximum applications!
DAIKIN ADEAS125A SKY AIR ACTIVE
12100W MÁXIMA POTENCIA + 34 m3/min + SEER 4.73
M️ Maximum Power Series
12100W cold / 13500W heat
The maximum capacity of the entire series
Higher rate 34 m3/min
Maximum air conditioning
Massive air distribution
Compact Height maintained
245mm even maximum power
Without compromising thermal capacity
▪ SEER 4,73 Optimized
Maximum power efficiency
Optimized for 12100W
🏭 Maximum spaces 100-110m2
🌿 R-32 maximum 2,60kg
🔧 EU enlarged 990×940mm
🔇 Optimized from 32dB
📏 30m pipe (50 ev.)
📡 Centralized control F1/F2
SERIE ACTIVE MÁXIMA POTENCIA ABSOLUTA
12100W with 34 m3/min top flow + 245mm compact + maximum capacity R-32
Perfect for shopping malls, light industrial spaces and high-end applications
▷ MÁXIMA ENVERGADURA
️ Warranty Daikin Officer
🔧 National Technical Service
📋 Maximum Power Series
🏭 Applications Maximum scope
ADEAS125A
Data sheet
- Brand
- Daikin
- Indoor Unit
- ADEA125A
- Outdoor Unit
- AZAS125MV1
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 12.093
- Refrigerator capacity (kcal / h)
- 10.400
- Nominal consumption Cold (W)
- 5.260
- SEER
- 4,7
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- SCOP
- 3,5
- Minimum sound pressure UI DB
- 32
- Weight Indoor Unit (Kg)
- 46,0
- Weight Outdoor Unit (Kg)
- 70,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 100m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 800 x 245
- EU dimensions (anxfxh) mm
- 940 x 380 x 990
