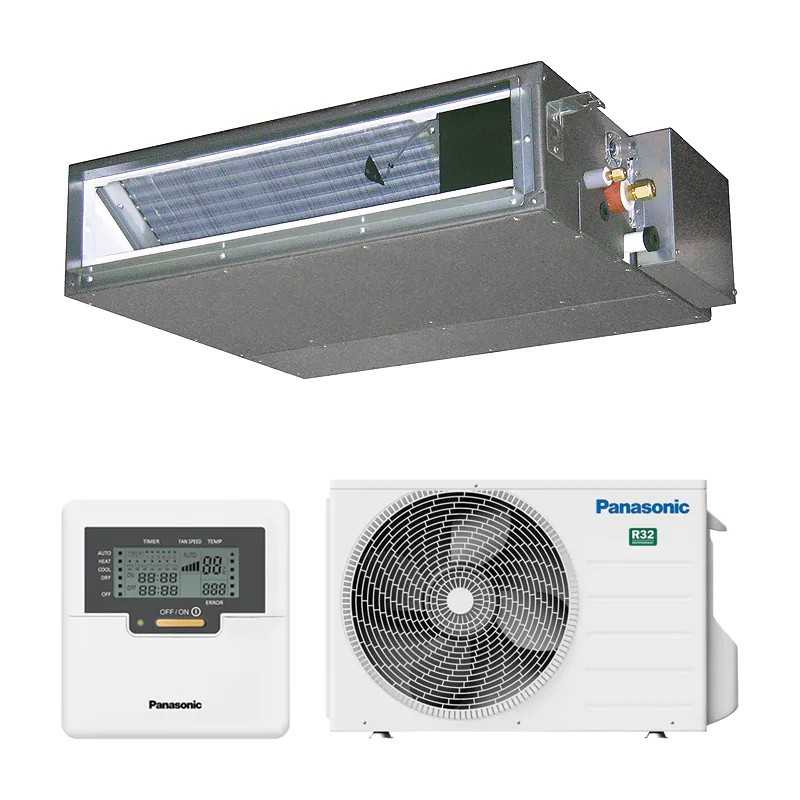

Low Silhouette Conduct Panasonic Inverter
Kit-Z50-CD3 • CS-Z50CD3RAW + CU-Z50UBA • 5.0 kW
Invisible High Capacity and Silent Comfort Air conditioning Specially designed to be integrated into false residential roofs or commercial premises with very limited height. The System through Low Silhouette Panasonic Kit-z50-cd3 It offers a nominal refrigeration capacity of 5.0 kW (4,300 kcal / h), being the perfect solution to air-conditioning spacious rooms, diaphanous day zones or professional offices totally hiddenly. With an interior chassis with a height of only 200 mm, this set optimizes the architectural space to the maximum without sacrificing performance. It has a series integrated drainage pump, a highly silent operation of just 25 dB (A), an optimal air filtering and selectable static pressure control to ensure a homogeneous distribution of the air through the drive grids.
Indoor Unit of low silhouette with only 200 mm of total height
Evaporation pump of high lifting condensate included as standard
Adjustable static pressure and low consumption DC fan engine
Efficient seasonal energy class A + cold / A + heat
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Low Silhouette Conduct Panasonic Kit-z50-cd3
Referencia: KIT-Z50-CD3
€1,576.81
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Low Silhouette Conduct Panasonic Inverter
Kit-Z50-CD3 • CS-Z50CD3RAW + CU-Z50UBA • 5.0 kW
Invisible High Capacity and Silent Comfort Air conditioning Specially designed to be integrated into false residential roofs or commercial premises with very limited height. The System through Low Silhouette Panasonic Kit-z50-cd3 It offers a nominal refrigeration capacity of 5.0 kW (4,300 kcal / h), being the perfect solution to air-conditioning spacious rooms, diaphanous day zones or professional offices totally hiddenly. With an interior chassis with a height of only 200 mm, this set optimizes the architectural space to the maximum without sacrificing performance. It has a series integrated drainage pump, a highly silent operation of just 25 dB (A), an optimal air filtering and selectable static pressure control to ensure a homogeneous distribution of the air through the drive grids.
Indoor Unit of low silhouette with only 200 mm of total height
Evaporation pump of high lifting condensate included as standard
Adjustable static pressure and low consumption DC fan engine
Efficient seasonal energy class A + cold / A + heat
Security policy
Delivery policy
Refund policy
Panasonic Low Silhouette Conduits Kit-Z50-CD3
Set of hidden conduits inverter 5.0 kW high power. Ultra thin interior chassis of 20 cm, R32 refrigerant gas and integrated series drain pump.
High precision invisible air conditioning: maximum comfort without altering architectural aesthetics
The air conditioning system for conduits of the series Low Silhouette of Panasonic it constitutes the perfect air conditioning engineering solution for those who prioritize an absolute and clean aesthetic integration in their home or commercial premises without renouncing a high thermal power. At the indoor Unit completely recessed inside the false ceiling, the end user only perceives comfort through discrete drive and return grids, avoiding the presence of mural equipment or splits on the walls. The model Kit-z50-cd3 it offers a nominal frigoring capacity of 5.0 kW, which places it as the ideal choice for acclimating with total precision large residential rooms, open spaces, corporate offices or considerable dining rooms. Its great competitive advantage lies in the physical compactness of its indoor Unit, which has an ultra-reduced height of only 200 mm, Facilitating your installation in false critical dimensions where other standard market duct machines can not be accommodated.
In the technical section, the outdoor Unit incorporate an engine equipped with the contrasted technology Inverter Panasonic. This system continuously and progressively adapts the rotation speed of the compressor depending on the instantaneous thermal requirements of the stay, completely eliminating the repetitive start and stop cycles that increase spending on electric bills. The system uses the ecological refrigerant gas of high thermal transfer R32, which reduces the volume of load needed and minimizes the environmental impact of the set. Thanks to this mechanical and aerodynamic optimization, the team gets some outstanding seasonal savings rates that give you energy classification A + both in cold mode (SEER) and in heat mode (SCOP).
The great practical advantage of the indoor Unit from this conduit kit Panasonic it lies in its assembly versatility and factory equipment. It incorporates a high-lifting condensate evacuation pump, which substantially simplifies the laying of drain pipes during the work process or reform. Your low-consuming DC centrifugal ventilation allows and adjust the available external static pressure levels, ensuring that the air flow venza can be loosened by the load losses caused by the development of fiber duct or flexible tube, Ensuring a stable, homogeneous and silent air flow that descends to a comfortable 25 dB (A).
Technical characteristics
System performance (Kit-Z50-CD3)
Cooling capacity (nominal): 5.00 kW (Elastic range inverter high modulation)
Capacity Heating (nominal): 5.80 KW (Elastic Inverter Range of Excellent Thermal Comfort)
Seasonal energy classification (cold): A + (High Hidden Efficiency)
Seasonal energy classification (heat): A + (optimal performance in winter)
Efficiency coefficient SEER / SCOP: 5.90 / 4.00
Power supply: 230 V / single-phase (1 phase - 50 Hz)
Gas Refrigerant Gas operation: R32 ecological high performance thermal
Dimensions and components of the installation

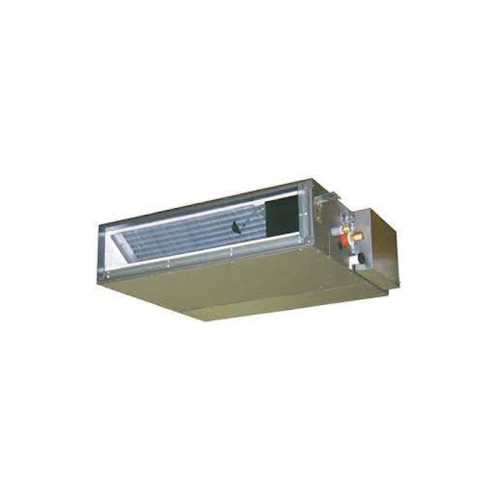

Indoor Unit of ducts: CS-Z50CD3RAW (Low Silhouette)
Dimensions Indoor Unit (At x an x PR): 200 x 750 x 640 mm (ultra compact and slender)
Net weight Indoor Unit: 19.0 kg
Internal sound pressure (high / low / S-low): 39/31 / 25 dB (A)

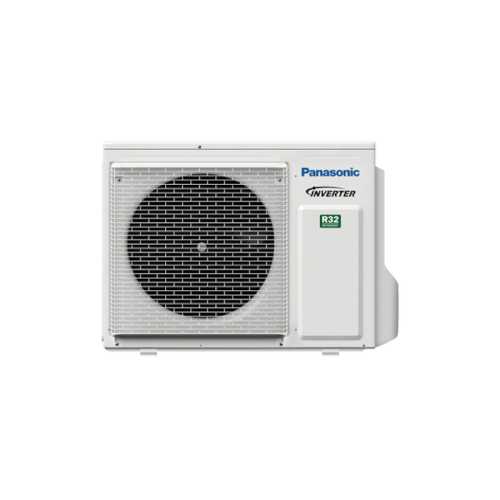

Outdoor Unit (Compressor): Cu-z50ubea
Dimensions Outdoor Unit (At x an x PR): 695 x 875 x 320 mm
Diameter of refrigeration pipes: Liquid 1/4 (6.35 mm) - Gas 1/2 (12.70 mm)
Drainage evaporation pump: Included as standard in the interior chassis
Advanced technologies of the ducts Panasonic Low silhouette
✔️ Ultra-reduced height profile (200 mm): The chassis of the indoor Unit it has been optimized aerodynamics and geometrically to record a height of only 20 centimeters. This drastically minimizes the need to excessively pick up the plasterboards or plastering the false ceiling, preserving the amplitude and free useful height of the stays of your home.
✔️ Integrated high elevation condensate pump: Forget problems of complex slopes in the drain. The inner machine includes pre-installed as standard a powerful drain pump that allows to raise the condensation water accumulated vertically, thus facilitating a comfortable guidance of the plastic pipe towards the downward.
✔️ Flexible management of static pressure (ESP): The DC Inverter type fan motor allows you to adjust the external static pressure of the conduit unit adaptively. This empowers the installers authorized to adjust the air flow according to the length and number of elbows of the duct network installed in the reform.
✔️ Optimized acoustic comfort: Thanks to the dynamic balance of your centrifugal fan and the high-absorption perimeter thermoacoustic isolation incorporated within the envelope of the indoor Unit, The sound pressure level in its silent speed mode is stabilized in only 25 dB (A), an ideal value to take care of your rest or concentration.
✔️ Domotic connectivity and optional intelligent control: The system of conduits of Panasonic it has electronic interconnection terminals compatible with automotive internet control catwalks (systems such as Inteesishome or Connectivity Interfaces Comfort Cloud Panasonic), Facilitating absolute control from smartphones or tablets.
Frequently asked questions

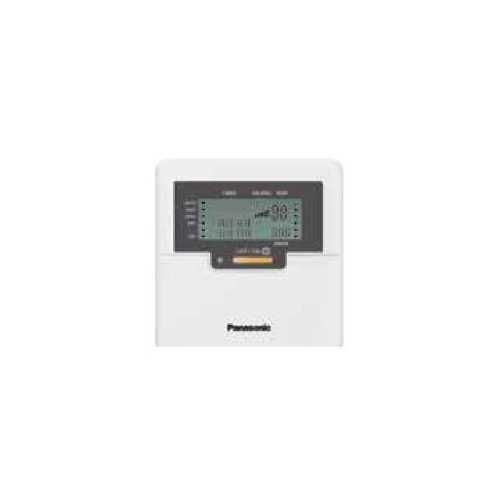

The system for conduits Panasonic Kit-Z50-CD3 includes the control control in the price?
Yes, in a habitual way this set of conduits of Panasonic it incorporates its corresponding cable remote control as standard to fix on the wall (such as the advanced model CZ-RD52CP or equivalent according to the official catalog supply). This wired thermostat acts as the equipment management center, allowing you to select the setpoint temperature in a millimetric manner, program power schedules or electronically adjust the ventilation speeds and static pressure of the machine.
What type of maintenance or cleaning does require the low silhouette duct unit?
As it happens with traditional splits, the indoor Unit of conduits continuously processes the environmental air of the stay, so incorporates mechanical filters of dust retainer particles located in the back rear area. To perform its maintenance, the machine must be accessed through the practicable registration trap enabled on the false ceiling, extract the filters from your guide, wash them with warm water and neutral soap, dry them in the shade and put them back to secure a Flow of hygienic and restrictions free.
What are the maximum refrigeration distances that supports the CU-Z50UBAE compressor?
This set of conduits of Panasonic it offers an excellent flexibility of crowded reforms for reforms. It allows a copper pipe length of up to 30 meters of maximum linear distance between the indoor Unit of low silhouette and the outer compressor. Likewise, the system tolerates a maximum vertical level dimension of up to 20 meters between both machines, ensuring an optimal return of lubricating oil towards the Inverter compressor.
Do you need technical advice to plan your installation for conduits of Panasonic?
On https://tualmacendelclima.com/en/ we are engineers specialists in the design, calculation and dimensioning of networks of ducts and invisible air conditioning systems of Panasonic. If you have doubts about how to plan the section of the fiberglass conduits, calculate the number of drive grids necessary for your space (this 5.0 kW system requires 1/4 liquid interconnections and 1/2 gas) or design the registration trap on The roof, our technical department is at your disposal. Ensure your comfort at the best market price with totally safe shipment.
Call 623 541 934
KIT-Z50-CD3
Data sheet
- Brand
- Panasonic
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.100
- Refrigerator capacity (kcal / h)
- 4.386
- Nominal consumption Cold (W)
- 1.560
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 6.100
- Heat capacity (Kcal / h)
- 5.246
- Nominal heat consumption (W)
- 1.820
- Energy class (heat)
- A+
- Minimum sound pressure UI DB
- 26
- Weight Indoor Unit (Kg)
- 19,0
- Weight Outdoor Unit (Kg)
- 43,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with CZ-TACG1 module
- Recommended area
- Estancia de 38m2 aprox.
- Dimensions UI (ANXFXH) mm
- 750 x 640 x 200
- EU dimensions (anxfxh) mm
- 875 x 320 x 695
