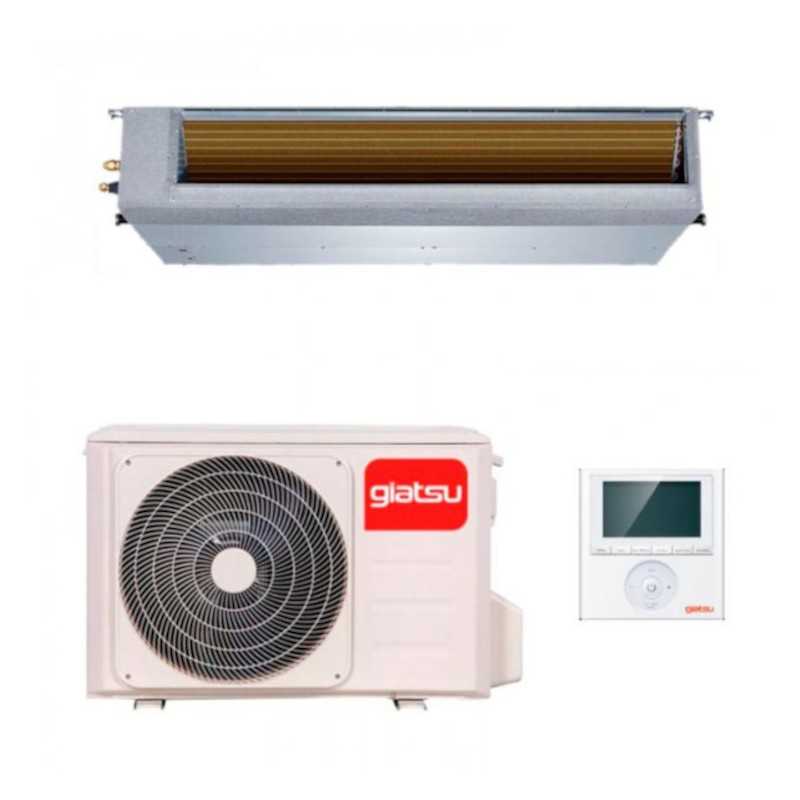

Ducted Air Conditioner Giatsu GIA-D-30ADM2R32-WF
Admira Plus Series 30,000 BTU Δ A++/A+ Δ Maximum Power Δ 50m Tube
The Air Conditioning by Conduct Giatsu GIA-D-30ADM2R32-WF represents the maximum expression of the Admira Plus Series with 8,79 kW in cooling and 9,38 kW in heating. Its cutting-edge DC inverter technology allows modulation from 7600 to 34000 BTU/h, while its outdoor Unit expanded and airflow up to 1500 m3/h guarantee air conditioning large spaces. With superior energy classification A++/A+ (SEER 6,6 / SCOP 4,2), multi-position installation, up to 50 meters of organic R32 pipe and coolant, constitutes the definitive solution for commercial and institutional applications that demand maximum professional power with exceptional energy efficiency.
30️ 3000 BTU Maximum
8,79 kW cold / 9,38 kW heat
Outdoor Unit Enlarged
946×810×410 mm
Higher Caudal
Up to 1500 m3/h
▪ SEER 6.6
A++/A+ maximum efficiency
Key Specifications Maximum Power
Capacity: 30,000 BTU/h
Modulation: 7600-34000 BTU/h
Cold consumption: 2800W (190-3450W)
Consumption heat: 2400W (430-2550W)
Static pressure: 0-160 Pa
Air flow: 900-1500 m3/h
Refrigerant Gas: R32 (1.8 kg)
Pipe length: Up to 50m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducts Giatsu GIA-D-30ADM2R32-WF Series Admires Plus Monof.
Referencia: GIA-D-30ADM2R32-WF
€1,274.36
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-D-30ADM2R32-WF
Admira Plus Series 30,000 BTU Δ A++/A+ Δ Maximum Power Δ 50m Tube
The Air Conditioning by Conduct Giatsu GIA-D-30ADM2R32-WF represents the maximum expression of the Admira Plus Series with 8,79 kW in cooling and 9,38 kW in heating. Its cutting-edge DC inverter technology allows modulation from 7600 to 34000 BTU/h, while its outdoor Unit expanded and airflow up to 1500 m3/h guarantee air conditioning large spaces. With superior energy classification A++/A+ (SEER 6,6 / SCOP 4,2), multi-position installation, up to 50 meters of organic R32 pipe and coolant, constitutes the definitive solution for commercial and institutional applications that demand maximum professional power with exceptional energy efficiency.
30️ 3000 BTU Maximum
8,79 kW cold / 9,38 kW heat
Outdoor Unit Enlarged
946×810×410 mm
Higher Caudal
Up to 1500 m3/h
▪ SEER 6.6
A++/A+ maximum efficiency
Key Specifications Maximum Power
Capacity: 30,000 BTU/h
Modulation: 7600-34000 BTU/h
Cold consumption: 2800W (190-3450W)
Consumption heat: 2400W (430-2550W)
Static pressure: 0-160 Pa
Air flow: 900-1500 m3/h
Refrigerant Gas: R32 (1.8 kg)
Pipe length: Up to 50m
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Giatsu GIA-D-30ADM2R32-WF constitutes the highest technological expression of the prestigious Admira Plus Series, representing the ultimate solution for large commercial and institutional applications that demand exceptional power without compromising energy efficiency. With a nominal capacity of 8,79 kW in refrigeration (30000 BTU/h) and 9,38 kW in heating (32000 BTU/h), this system employs state-of-the-art DC inverter technology that allows intelligent modulation from 7600 to 34000 BTU/h in cold mode, ensuring precise adaptation to the variable demands of large commercial spaces, shopping centers, corporate offices and demanding institutional applications.
The extraordinary combination of high-efficiency GMCC inverter compressor and optimized DC fan ensures superior A++ energy rating in cooling (SEER 6,6) and A+ in heating (SCOP 4,2), maintaining the highest efficiency standards even with this maximum power. The system employs eco-friendly R32 coolant with 1.8 kg optimized load, maximizing thermal efficiency while maintaining environmental commitment and ensuring long-term operational sustainability, crucial for responsible commercial applications.

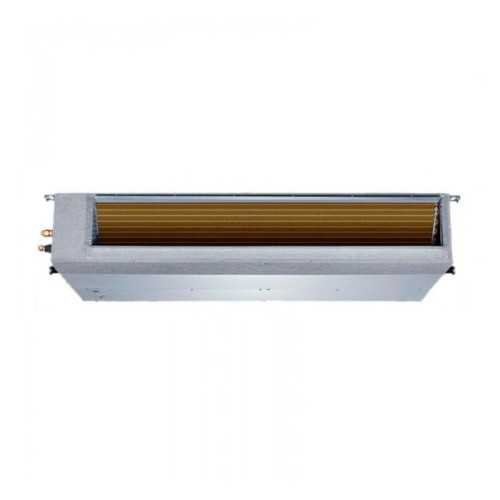

La indoor Unit maintains the optimized dimensions of 1000×245×750 mm with weight of 32.7 kg, keeping the versatility of horizontal and vertical multiposition installation while providing airflows above 900 to 1500 m3/h with static pressure of up to 160 Pa. These specifications allow maximum complexity facilities with distribution in multiple areas, complete plants and challenging architectural configurations. Its optimized sound levels of 39/37/35 dB(A) at speed guarantee discreet professional performance even with this maximum power, essential for commercial and institutional applications that require a quiet environment.

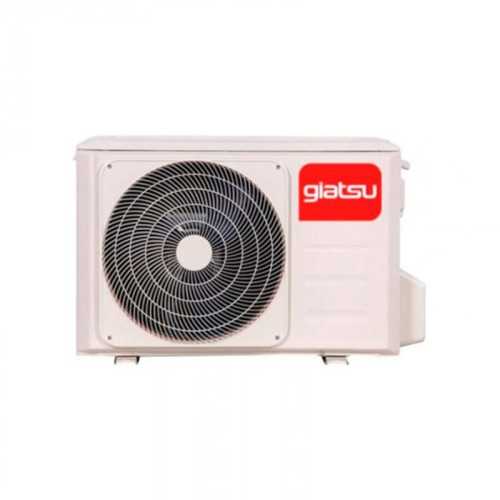

La outdoor Unit GMCC has been redesigned with enlarged dimensions of 946×810×410 mm and weight of 51 kg to support the thermal demands of this maximum capacity, incorporating protection Golden Fin premium anticorrosion and optimized thermal exchange systems. The system allows maximum expansion installations with pipe length of up to 50 meters and height of up to 25 meters, while the 3/8" - 5/8" refrigerator connections guarantee optimal flow. The included cable control offers complete weekly programming for automatic optimization in complex commercial applications and intelligent management of multiple climate zones.
Features Maximum Professional Power
🏭
Institutional Capacity Maximum
30,000 BTU/h with modulation 7600-34000 BTU/h. Designed for commercial centers, corporate offices and large enterprise applications.
💨
High Air Caudal
Up to 1500 m3/h for quick and efficient air conditioning of spacious spaces. Massive distribution of air conditioning.
️
Outdoor Unit Enlarged
Dimensions 946×810×410 mm specifically designed to support maximum thermal capacity with commercial durability.
▪
Maximum Efficiency
SEER 6.6 and SCOP 4.2 with advanced DC inverter technology. Higher efficiency even with 30,000 BTU power.
🔇
Professional performance
Sound levels from 35 dB for peaceful professional commercial environment even with maximum power.
🌿
R32 Maximum Capacity
1.8 kg R32 optimized for maximum power maintaining environmental sustainability and thermal efficiency.
Technical Specifications Maximum Power
| Feature | Value |
|---|---|
| Model Set | GIA-D-30ADM2R32-WF (Admira Plus Series Maximum Power) |
| Refrigeration capacity | 8,79 kW (2,23~9,97) - 30,000 BTU/h (7600~34000) |
| Capacity Heating | 9,38 kW (2,70~10) - 32000 BTU/h (9200~34100) |
| Consumption Refrigeration | 2800W (190~3450W) |
| Consumption Heating | 2400W (430~2550W) |
| SEER / SCOP | 6.6 / 4.2 (Superior) |
| Energy label ( Cold/Calor) | A++ / A+ |
| Installation Available | Horizontal & Vertical (Multiposition) |
| Sonic pressure Indoor Unit | 39/37/35 dB(A) (Alto/Medium/Bajo) |
| Sonic pressure Outdoor Unit | 60 dB(A) |
| Air flow rate | 1500/1200/900 m3/h (Alto/Medium/Bajo) |
| Static pressure | 37 Pa nominal (0-160 Pa maximum) |
| Dimensions Indoor Unit | 1000×245×750 mm |
| Dimensions Outdoor Unit | 946×810×410 mm (Enlarged) |
| Weight Indoor Unit | 32.7 kg |
| Weight Outdoor Unit | 51 kg |
| Refrigerant Gas / Charge | R32 / 1.8 kg |
| Length Tuberia Maximum | 50 meters |
| Maximum level | 25 meters |
| Frigorific connections | Liquid 3/8" - Gas 5/8" |
Institutional Benefits Maximum Power
✓
Solution for enterprise applications
30,000 BTU ideal for shopping centers, corporate offices, hotels, convention centers and institutional spaces of 100+ m2 that require maximum professional power.
✓
Massive cause for rapid air conditioning
1500 m3/h allow quick and efficient air conditioning of spacious spaces, ensuring homogeneous comfort in large applications.
✓
Maximum efficiency with maximum power
It maintains SEER 6,6 and SCOP 4,2 even with 30,000 BTU, ensuring exceptional energy savings in high consumption applications.
✓
Premium commercial durability
Outdoor Unit enlarged and reinforced components ensure maximum reliability and durability of commercial intensive operation.
Main Institutional Applications
🏭
Shopping Centres
Small-medium shopping centers, large commercial surfaces, large showrooms and large retail spaces.
🏢
Corporate offices
Corporate headquarters, business centers, large coworking spaces and institutional offices that require maximum capacity.
🏨
Hostelry and Institutions
Hotels, convention centres, auditoriums, educational centres and high-capacity institutional applications.
Maximum Professional Power for Great Applications!
The Giatsu Admira Plus 30,000 BTU series represents the highest level of professional air conditioning with 1500 m3/h of flow, SEER 6.6 and DC inverter technology. The ultimate solution for commercial centers, corporate offices and large enterprise applications.
Request your institutional budget today!
GIATSU ADMIRA PLUS 30,000 BTU G
MÁXIMA POTENCIA Institutional + 1500 m3/h + SEER 6,6
Maximum Power Series
3000 BTU/h institutional
Massive modulation 7600-34000 BTU/h
Higher range 1500 m3/h
Rapid air conditioning wide spaces
Massive air conditioning
️ Outdoor Unit Enlarged
946×810×410 mm - 51 kg
Design for maximum thermal capacity
▪ Efficiency SEER 6,6
A++/A+ even 30,000 BTU
Maximum savings with maximum power
🏭 Ideal spaces 100+ m2
🔄 Multiposition H+V
📏 50m pipe + 25m
🔇 Quiet since 35 dB
📐 Pressure 160 Top
🌿 Organic R32 1.8 kg
🏆 MAXIMUM POWER AVAILABLE
30,000 BTU with 1500 m3/h flow and efficiency SEER 6.6 maintained
Perfect for shopping centers, corporate offices and institutions
▷ SPECIALIZED INSTITUTIONAL INSTALMENT
️ Warranty 3+5 years
🔧 National Technical Service
📋 Certification A++/A+
🏭 Institutional applications
GIA-D-30ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 8.790
- Refrigerator capacity (kcal / h)
- 7.559
- Nominal consumption Cold (W)
- 2.800
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 9.380
- Heat capacity (Kcal / h)
- 8.067
- Nominal heat consumption (W)
- 2.400
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 35
- Weight Indoor Unit (Kg)
- 32,7
- Weight Outdoor Unit (Kg)
- 51,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Incluido de serie
- Recommended area
- Estancia de 70m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 750 x 245
- EU dimensions (anxfxh) mm
- 946 x 410 x 810
