Ducted Air Conditioner Soil Daikin NAS50A
SKY AIR Series Advance 日本語 R-32 5000W Cold Only 200mm Depth Δ SEER 5,77 A+/A+
The Air Conditioning by Soil Behaviors Daikin NAS50A of the prestigious Sky Air Advance Series represents revolutionary innovation for ground or wall installation with advanced R-32 coolant. Its exceptional capacity of 5000W in cooling and 5800W in heating, combined with a revolutionary design of only 200 mm deep, makes it the ideal choice for residential applications, medium stores and offices where space is critical. Power rating A+/A+ (SEER 5,77 / SCOP 4,09), static pressure up to 49Pa and optional WiFi control, guarantees maximum efficiency and total flexibility in spaces with severe architectural restrictions.
️ 5000W Cold
5800W heat / R-32 innovative
Just 200mm
Revolution in minimum depth
Pressure 49Pa
16 m3/min optimized flow rate
▪ SEER 5.77
A+/A+ maximum efficiency
Product Specifications Advance Series
Cold capacity: 5000W
Heat capacity: 5800W
Cold consumption: 1480W
Consumption heat: 1740W
Air flow: 16 m3/min
Dimensions: 620×1150×200mm
Refrigerant Gas: R-32 (1.4 kg)
Max pipe: 30 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

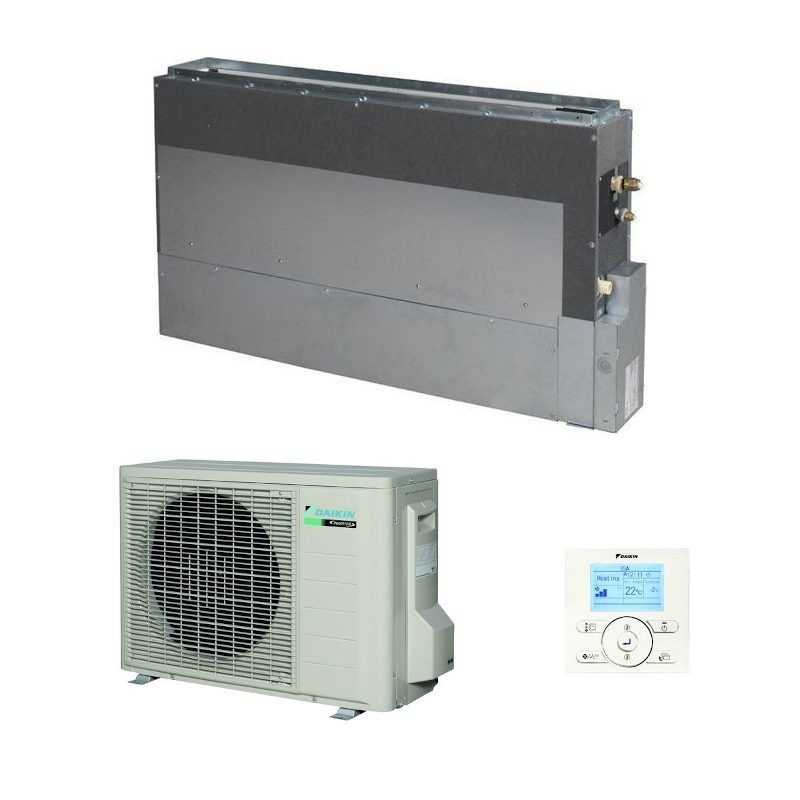

Air Conditioning Vertical Conduct Daikin NAS50A SKY AIR SERIE ADVANCE
Referencia: NAS50A
€2,293.70
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Soil Daikin NAS50A
SKY AIR Series Advance 日本語 R-32 5000W Cold Only 200mm Depth Δ SEER 5,77 A+/A+
The Air Conditioning by Soil Behaviors Daikin NAS50A of the prestigious Sky Air Advance Series represents revolutionary innovation for ground or wall installation with advanced R-32 coolant. Its exceptional capacity of 5000W in cooling and 5800W in heating, combined with a revolutionary design of only 200 mm deep, makes it the ideal choice for residential applications, medium stores and offices where space is critical. Power rating A+/A+ (SEER 5,77 / SCOP 4,09), static pressure up to 49Pa and optional WiFi control, guarantees maximum efficiency and total flexibility in spaces with severe architectural restrictions.
️ 5000W Cold
5800W heat / R-32 innovative
Just 200mm
Revolution in minimum depth
Pressure 49Pa
16 m3/min optimized flow rate
▪ SEER 5.77
A+/A+ maximum efficiency
Product Specifications Advance Series
Cold capacity: 5000W
Heat capacity: 5800W
Cold consumption: 1480W
Consumption heat: 1740W
Air flow: 16 m3/min
Dimensions: 620×1150×200mm
Refrigerant Gas: R-32 (1.4 kg)
Max pipe: 30 meters
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Soil Behaviors Daikin NAS50A represents the optimized evolution of the revolutionary Sky Air Advance Series, designed specifically for floor or wall installation where space is a critical factor and intermediate power is required. With an optimized rated capacity of 5000W in refrigeration (4300 kcal/h) and 5800W in heating (4987 kcal/h), this system incorporates the innovative R-32 coolant technology that guarantees maximum energy efficiency and environmental sustainability, maintaining a higher A+/A+ energy rating with SEER 5,77 and SCOP 4,09, ideal for medium sized residential applications, mid-size stores, offices and hotels that demand flexibility.
Its revolutionary design maintains the innovative 200 mm depth with dimensions of 620×1150×200 mm and weight of 30 kg, allowing installation in spaces where it was traditionally impossible to place equipment of ducts of this capacity. The high external static pressure (ESP) up to 49Pa allows flexible installation with ducts to the ceiling, while the downward-oriented connecting port eliminates the need to connect auxiliary pipes, significantly simplifying the installation and reducing labor costs.
The system operates with optimized airflows of 16 m3/min in both cooling and heating with A/B speeds (16.0/13.5 m3/min), providing efficient and homogeneous air conditioning for medium spaces. Its silent operation and optional WiFi technology compatibility using the ES.DKNWSERVER adapter allows intelligent remote control from smartphone, computer or tablet from any location, representing the maximum evolution in domotic control of residential and commercial light air conditioning.
La outdoor Unit RXM50N9 with SWING compressor incorporates 1.4 kg R-32 coolant load (TCO2 eq 0.9 / PCA 675), dimensions of 734×940×320 mm and weight of 47 kg, with operating limits extended to -15oC in both cooling and heating. The system allows installations with maximum pipe length of 30 meters and height of up to 20 meters, with frigorphic connections of Ø6,4" (1/4") liquid and Ø12,7" (1/2") gas, monophasic power 220V with 3+T interconnection threads, ensuring maximum installation flexibility in residential and light commercial applications that require optimized power.
Features Sky Air Advance Series Optimized
▪
Optimized Power 5000W
5000W refrigeration and 5800W heating optimized for medium residential applications, mid-size stores and offices that require intermediate power.
🏆
Higher efficiency A+/A+
SEER 5,77 and SCOP 4,09 with superior energy rating A+/A+, the maximum efficiency available for this optimized capacity.
📐
200mm Revolution Stay
It maintains the revolutionaries 200 mm deep even with optimized 5000W power, allowing installation where other equipment does not fit.
💨
Optimized range 16 m3/min
Optimized 16 m3/min air flow with static pressure 49Pa for efficient air conditioning of medium spaces with maximum flexibility.
📱
Intelligent WiFi Control
Optional smart control from smartphone, tablet and PC with ES.DKNWSERVER adapter, representing the maximum evolution in residential home automation.
🌿
R-32 Optimized
R-32 technology with optimized load of 1.4 kg guarantees maximum energy efficiency and environmental sustainability for this intermediate power.
Technical Specifications Advance Series Optimized
| Feature | Value |
|---|---|
| Model Set | NAS50A (Sky Air Advance Series Optimized) |
| Refrigeration capacity | 5000W (4300 kcal/h) |
| Capacity Heating | 5800W (4987 kcal/h) |
| Consumption Refrigeration | 1480W |
| Consumption Heating | 1740W |
| SEER / SCOP | 5,77 / 4,09 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Charge Design Refrigeration | 5,00 kW |
| Charge Design Heating (-10oC) | 4,00 kW |
| Consumption Energy Annual Refrigeration | 303 kWh |
| Consumption Annual Energy Heating | 1369 kWh |
| Frigorific connections | Liquid Ø6,4" (1/4") - Gas Ø12.7" (1/2") |
| Electrical supply | Monof Classic 220V |
| No Hilos Interconnection | 3 + T |
| Maximum Length Tuberia | 30 meters |
| Maximum level | 20 meters |
| Refrigerant Gas / Charge | R-32 / 1.4 kg (TCO2 eq 0.9 / PCA 675) |

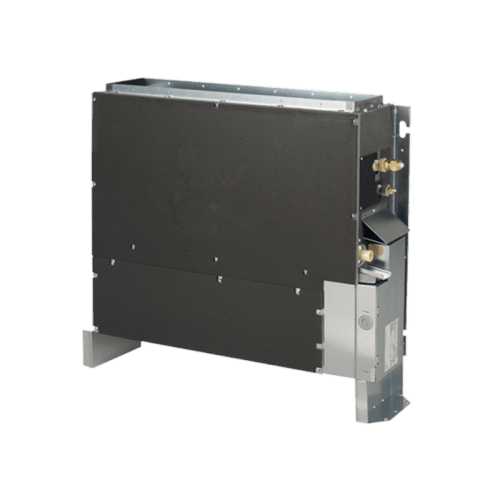

Specifications Indoor Unit FNA50A9
| Feature | Value |
|---|---|
| Air flow rate (A/B) | 16,0 / 13,5 m3/min |
| High/Nominal Available Pressure | 49 / 40 Pa |
| Dimensions (Alto×Ancho×Fondo) | 620×1150×200 mm |
| Weight | 30 kg |
| Revolutionary Depth | Only 200 mm |
| Installation type | Floor or Pared |
| Connection port | Focus down |
| Control WiFi | Optional with ES.DKNWSERVER |

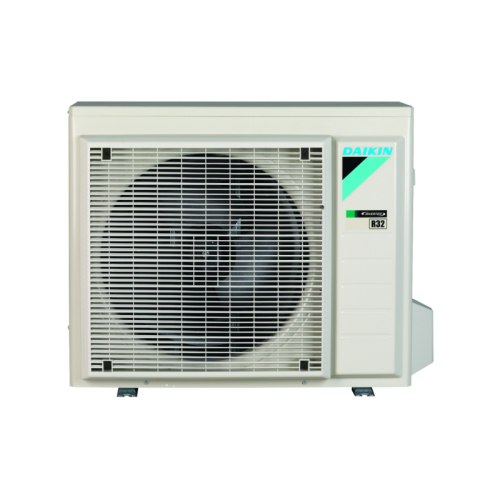

Specifications Outdoor Unit RXM50N9
| Feature | Value |
|---|---|
| Type of Compressor | SWING |
| Dimensions (Alto×Ancho×Fondo) | 734×940×320 mm |
| Weight | 47 kg |
| Sound pressure Refrigeration (A/B) | 48 / 44 dB(A) |
| Sound pressure Heating | 49 / 45 dB(A) |
| Level Acoustic Power | 62 dB(A) |
| Charge Refrigerant Gas | 10 meters |
| Additional charge | 20 gr/m |
| Limits Functioning | -15oC cooling and heating |
Advantages Sky Air Advance Series Optimized
✓
Optimized power for medium spaces
5000W perfectly dimensioned for medium-sized residential applications, mid-size stores and offices that require intermediate power with maximum efficiency.
✓
Higher energy efficiency A+/A+
SEER 5,77 and SCOP 4,09 with A+/A+ rating, the maximum energy efficiency available, ensuring minimum consumption and maximum savings.
✓
Revolution 200mm maintained
It keeps revolutionaries 200 mm deep even with 5000W of power, allowing installation in impossible spaces for conventional equipment.
✓
Advanced Smart WiFi Control
Optional control from smartphone, tablet and PC with ES.DKNWSERVER, allowing smart management from any location with advanced automation.
Main applications Optimized
▪
Medium Residential Applications
Middle-family homes, large apartments, duplex and residential applications that require intermediate power with maximum efficiency.
🏪
Shops Medium size
Medium stores, spacious boutiques, medium-sized commercial spaces that require powerful air conditioning with space limitations.
🏢
Offices and Hotels
Medium offices, large offices, premium hotel rooms and corporate spaces that demand optimized power.
Optimized Power with Higher Efficiency A+/A+!
The Daikin NAS50A Sky Air Advance Series combines optimized 5000W power, 200mm deep revolution, superior A+/A+ efficiency (SEER 5,77), R-32 technology and optional WiFi control. The perfect solution for medium spaces that demand intermediate power with maximum efficiency and total installation flexibility.
Request your budget for optimized applications!
▪ DAIKIN NAS50A SKY AIR ADVANCE ⋅
5000W + SOLO 200mm + WIFI + A+
️ 5000W Optimized
5000W cold / 5800W heat
Ideal power medium stores
Revolution 200mm
Only 200mm depth
Floor or wall installation
Control WiFi
Smartphone, tablet, PC
Optional ES.DKNWSERVER adapter
▪ SEER 5,77 A+/A+
Maximum efficiency
1480W optimized consumption
SERIE ADVANCE OPTIMIZED 5000W
Optimized power with 200mm depth + WiFi + A+/A+
Perfect for medium stores, offices and residential applications
NAS50A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FNA50A9
- Outdoor Unit
- RXM50R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.480
- Energy class (cold)
- A+
- SEER
- 5,8
- Heat capacity (W)
- 5.800
- Heat capacity (Kcal / h)
- 4.987
- Nominal heat consumption (W)
- 1.740
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 30,0
- Weight Outdoor Unit (Kg)
- 49,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 38m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1150 x 200 x 620
- EU dimensions (anxfxh) mm
- 954 x 401 x 734
