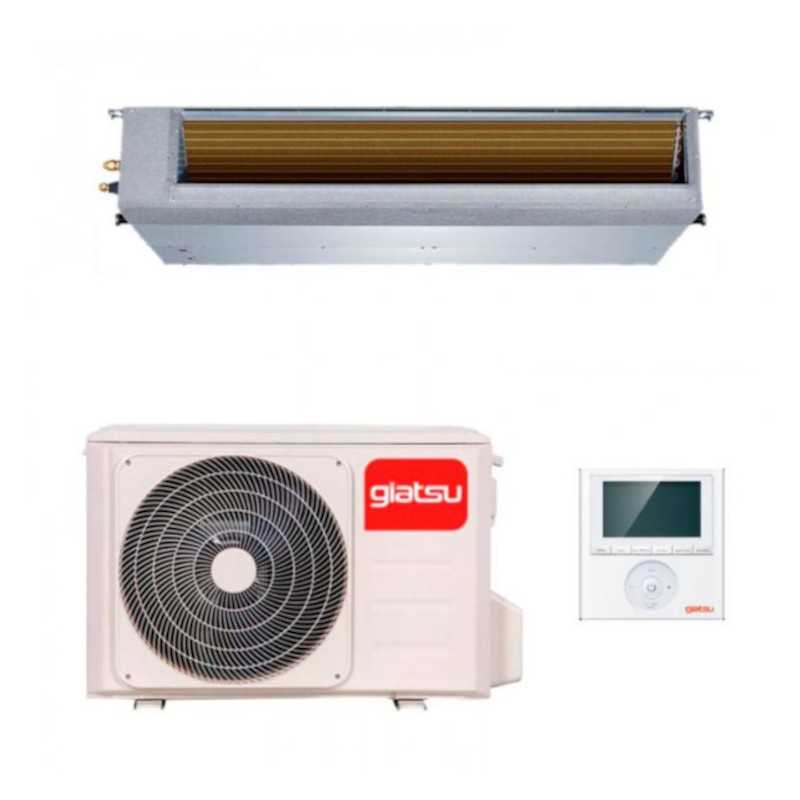

Ducted Air Conditioner Giatsu GIA-DT3-60ADM2R32-WF
Admira Plus Series Δ 60000 BTU Triphasic A++/A+ Δ Maximum Industrial Power
The Air Conditioning by Conduct Giatsu GIA-DT3-60ADM2R32-WF represents the highest exponent of the Admira Plus Series 60000 Three-phase BTU. Designed for large industrial, commercial and corporate buildings, it offers exceptional performance with energy rating A++/A+, technology inverter DC advanced and 380-415V triphasic feeding ensures maximum stability and efficiency. Its capacity of 2500 m3/h and pipe length up to 100m make it the ultimate solution for large-scale projects that demand strong, silent and economic climate control.
60000 BTU Triphasic
380-415V maximum power
2 2500 m3/h
Maximum industrial flow
100 100m
Maximum installation length
Ultra Quiet
39 dB(A) operation
Key Specifications
Power: 60000 BTU/h
SEER: 6.6 (A++)
SCOP: 4.0 (A+)
Food: 380-415V triphase
Air flow: 2500 m3/h
Sound level: 39 dB(A)
Refrigerant Gas: Organic R32
Pipe length: 100m max.
Reference: GIA-DT3-60ADM2R32-WF Δ Giatsu Admira Plus Triphase Series
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-DT3-60ADM2R32-WF series Admira Plus Trif.
Referencia: GIA-DT3-60ADM2R32-WF
€2,252.66
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-DT3-60ADM2R32-WF
Admira Plus Series Δ 60000 BTU Triphasic A++/A+ Δ Maximum Industrial Power
The Air Conditioning by Conduct Giatsu GIA-DT3-60ADM2R32-WF represents the highest exponent of the Admira Plus Series 60000 Three-phase BTU. Designed for large industrial, commercial and corporate buildings, it offers exceptional performance with energy rating A++/A+, technology inverter DC advanced and 380-415V triphasic feeding ensures maximum stability and efficiency. Its capacity of 2500 m3/h and pipe length up to 100m make it the ultimate solution for large-scale projects that demand strong, silent and economic climate control.
60000 BTU Triphasic
380-415V maximum power
2 2500 m3/h
Maximum industrial flow
100 100m
Maximum installation length
Ultra Quiet
39 dB(A) operation
Key Specifications
Power: 60000 BTU/h
SEER: 6.6 (A++)
SCOP: 4.0 (A+)
Food: 380-415V triphase
Air flow: 2500 m3/h
Sound level: 39 dB(A)
Refrigerant Gas: Organic R32
Pipe length: 100m max.
Reference: GIA-DT3-60ADM2R32-WF Δ Giatsu Admira Plus Triphase Series
Security policy
Delivery policy
Refund policy
The Summit for Industrial Air Pollution
The Air Conditioning by Conduct Giatsu GIA-DT3-60ADM2R32-WF represents the highest technological exponent of the Admira Plus Series, designed specifically for large industrial facilities, shopping centers, corporate buildings and larger projects that demand maximum power and energy efficiency.
With 60000 BTU/h of three-phase power and 380-415V power supply, this equipment guarantees exceptional performance energy rating A++/A+, latest generation DC inverter technology and airflow 2500 m3/h capable of effectively airing spaces of up to 300-400 m2 with uniform distribution through ducts.
▪
Maximum Triphasic Power
60000 BTU/h with 380-415V triphase power. Higher electrical stability, lower consumption and higher life of compressor for large industrial installations.
🏢
Max Industrial Caudal
2500 m3/h airflow for large spaces. Uniform and efficient distribution up to 100m of pipe length with optimized static pressure.
🌿
Efficiency A+/A+
SEER 6,6 (A++) and SCOP 4.0 (A+) with eco-friendly R32 coolant. Up to 40% energy savings on conventional systems and significant carbon footprint reduction.
🔧
Technology Inverter DC
Variable speed control of the compressor. Soft opening, silent operation 39 dB(A), constant temperature and maximum comfort throughout the installation.
Complete Technical Specifications
| Feature | Specification | Unit |
|---|---|---|
| Model | GIA-DT3-60ADM2R32-WF | - |
| Frigorific power | 60000 | BTU/h |
| Calorific power | 64000 | BTU/h |
| SEER (Stational efficiency) | 6.6 (A++) | - |
| SCOP ( Heating efficiency) | 4.0 (A+) | - |
| Electrical supply | 380-415V Triphase | V |
| Maximum Air flow rate | 2500 | m3/h |
| External sound level | 39 | dB(A) |
| Internal sound level | 31 | dB(A) |
| Refrigerant Gas | R32 Ecological | - |
| Length Tuberia Maximum | 100 | meters |
| Maximum level | 30 | meters |
| Installation type | Multiposition | - |

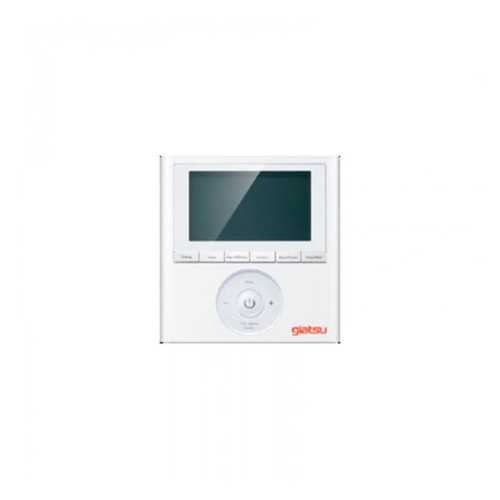

| Temperature Control | Programmer Termostato | - |
Main Benefits of GIA-DT3-60ADM2R32-WF
Maximum Industrial Power
Ideal for large installations of 300-400 m2 with uniform distribution through ducts
A Maximum Energy Saving
Up to 40% lower consumption vs conventional A+/A+ classification systems
▪ Triphasic stability
380-415V power supply for maximum electrical stability and lower wear
Ultra Quiet
Only 39 dB(A) exterior and 31 dB(A) interior for maximum acoustic comfort
️ Control Precision
DC inverter technology for constant temperature and soft startup
M Maximum Flexibility
100m pipe length, 30m uneven, multiposition installation
Why choose to choose Giatsu GIA-DT3-60ADM2R32-WF?
Es Ideal applications:
- Large malls and corporate offices
- Industrial ships and production plants
- Hospitals, clinics and health centres
- Colleges, universities and educational institutions
- Hotels and hotels
- Any space of 300-400 m2 that requires duct air conditioning
▼ Competitive advantages:
- Maximum power output 60000 BTU with efficiency A++/A+
- Three-phase food for superior stability
- Industrial range 2500 m3/h for large spaces
- 100m maximum pipe length
- Ultra silent 39/31 dB(A) for absolute comfort
- Refrigerant Gas New generation ecological R32
Professional Installation Included
🔧
Certified Installation
Technicians specializing in three-phase systems
️
Well done in Marcha
Complete configuration and operating tests
️
Total
Full coverage manufacturer + installation
📞
Technical Support
Specialized post-installation assistance
GIA-DT3-60ADM2R32-WF
Data sheet
- Brand
- Giatsu

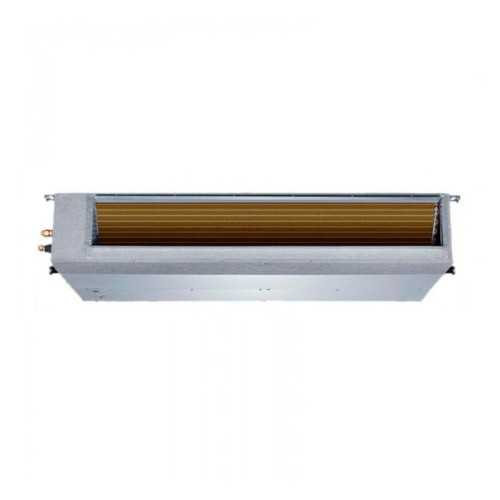

- Indoor Unit

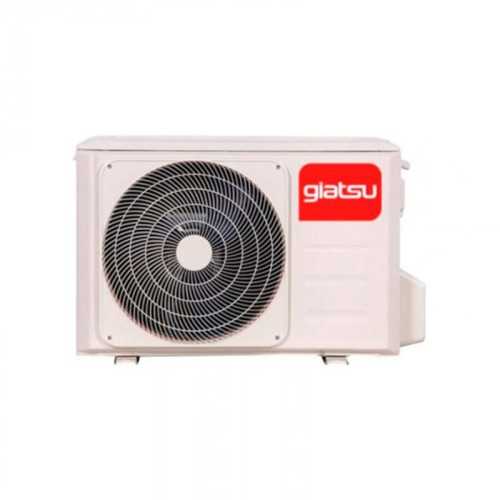

- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 15.240
- Refrigerator capacity (kcal / h)
- 13.106
- Nominal consumption Cold (W)
- 5.250
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 18.680
- Heat capacity (Kcal / h)
- 16.065
- Nominal heat consumption (W)
- 5.150
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 42
- Weight Indoor Unit (Kg)
- 42,9
- Weight Outdoor Unit (Kg)
- 92,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Incluido de serie
- Recommended area
- Estancia de 130m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1200 x 750 x 300
- EU dimensions (anxfxh) mm
- 980 x 375 x 975
