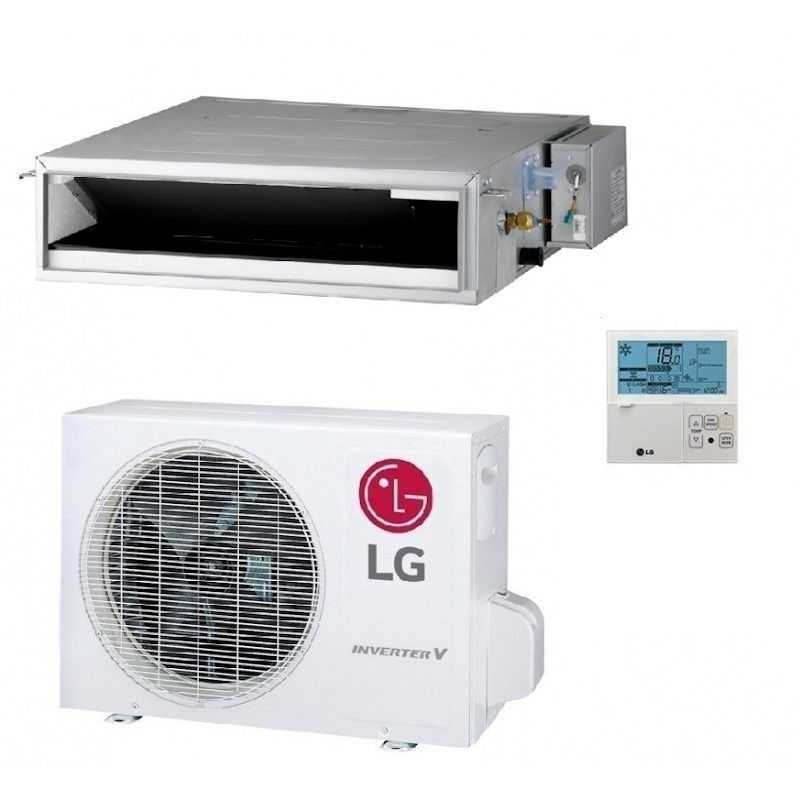

Ducted Air Conditioner Low silhouette LG CL12F CONFORT+
Air conditioning system through low silhouette ducts with 3.5 kW nominal capacity, specially designed for very small spaces with extremely limited false ceilings. This team of the CONFORT+ range combines ultra compact design (only 200mm high) with energy efficiency A+/A and advanced technology, ideal for small studies, intimate consultations and very compact commercial spaces with severe height restrictions.
- ▷ Low silhouette design with only 200mm height for false minimum ceilings
- ▷ Nominal power of 3.5 kW in cold and 4.0 kW in heat for very small spaces
- ▷ High energy efficiency with SEER 5,60 and SCOP 3,90 (A+/A)
- ▷ Absolute silent operation with only 25/23/22 dB
- ▷ Fully compact system with outdoor Unit minimum
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL12F CONFORT+ + UUA1.UL0
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Low silhouette LG CL12F CONFORT+
Referencia: KITCONDCL12
€1,230.90
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Low silhouette LG CL12F CONFORT+
Air conditioning system through low silhouette ducts with 3.5 kW nominal capacity, specially designed for very small spaces with extremely limited false ceilings. This team of the CONFORT+ range combines ultra compact design (only 200mm high) with energy efficiency A+/A and advanced technology, ideal for small studies, intimate consultations and very compact commercial spaces with severe height restrictions.
- ▷ Low silhouette design with only 200mm height for false minimum ceilings
- ▷ Nominal power of 3.5 kW in cold and 4.0 kW in heat for very small spaces
- ▷ High energy efficiency with SEER 5,60 and SCOP 3,90 (A+/A)
- ▷ Absolute silent operation with only 25/23/22 dB
- ▷ Fully compact system with outdoor Unit minimum
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL12F CONFORT+ + UUA1.UL0
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioned by Low Silueta Behavior LG CL12F CONFORT+ is a high-end air conditioning system specifically designed for very small spaces with extreme height limitations on false ceilings. This team of the prestigious Free Combination CONFORT+ range LG it combines an ultra compact design of only 200mm high with a nominal power of 3.5 kW in cold and 4.0 kW in heat, offering an exceptional modulant capacity ranging from 1.50 to 4.20 kW in cooling and from 1.80 to 4.50 kW in heating.
Composed of indoor Unit CL12F low silhouette and outdoor Unit UUA1.UL0, this system stands out for its unique installation capacity in spaces with height restrictions and extreme space, keeping static pressure up to 150 Pa and pipe lengths up to 25 meters. La indoor Unit, with ultra-compact dimensions of 900 x 200 x 700 mm, offers both horizontal and vertical installation flexibility through the ABDAMA0 accessory, providing an airflow of up to 10 m3/min with practically inaudible sound levels of 25/23/22 dB according to the selected speed.
La outdoor Unit UUA1.UL0, with its ultra compact dimensions of 770 x 545 x 288 mm and optimized weight of 33.3 kg, incorporates advanced technology to maximize thermal exchange in minimal spaces. With an extended range of operation ranging from -10°C to 50°C in cooling and from -10°C to 18°C in heating, this system uses only 0.8 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising professional performance that demand the most select applications with the most challenging architectural restrictions on the market.
Main features
📏
Low Silueta design
Only 200mm high vs 245mm standard, the ultimate solution for smaller spaces with absolute height limitations without compromising professional quality.
▪
Perfect Minimum Power
Rated power of 3.5 kW in cold and 4.0 kW in heat, with intelligent modulation from 1.50-4.20 kW in cooling and 1.80-4.50 kW in heating.
📐
Total Ultra Compact System
Outdoor Unit ultra compact (770x545x288 mm) and minimum weight (33.3 kg), ideal for the most limited outdoor spaces in the market.
🔇
Silence Extreme
Exceptional sound levels of 25/23/22 dB indoor Unit, practically unheard even in the quietest and most sensitive spaces.
🔄
Minimum Dual Installation
Horizontal or vertical installation capacity by ABDAMA0 accessory, adapting to the most restrictive architectural configurations.
🌱
Sustainable Efficiency Maximum
Refrigerant Gas Ecological R32 with an ultra minimum load of 0.8 kg and A+/A classification for maximum sustainability in minimal format.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CL12F CONFORT+ + UUA1.UL0 |
| Cold Capacity (Mín-Nom-Máx) | 1.50 - 3.50 - 4.20 kW |
| Heat capacity (Mín-Nom-Máx) | 1.80 - 4.00 - 4.50 kW |
| EER / COP | 3,10 / 3,60 |
| SEER / SCOP | 5,60 / 3,90 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 200 x 700 mm (low silhouette) |
| Dimensions Outdoor Unit (AnxAlxProf) | 770 x 545 x 288 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 25 / 23 / 22 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 49 / 52 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 10 / 8 / 6 m3/min |
| Air flow rate Outdoor Unit | 28 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 0.8 kg |
| Length Tuberia (Min/Máx) | 5 / 25 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 26.5 kg |
| Weight Outdoor Unit | 33.3 kg |
| Vertical Installation | ABDAMA0 |
Benefits of Low Silueta Air Conditioning LG CL12F CONFORT+
✓
Unique solution for very small spaces with extreme limitations
With only 200mm high and 3.5 kW power, it is the only viable option for very small studies, tiny individual offices and intimate commercial spaces in historical buildings or with false ceilings absolutely limited where no other equipment can be installed.
✓
Fully minimum system without commitments
The combination of indoor Unit low silhouette (200mm), outdoor Unit ultra compact (770x545x288 mm), minimal weight and dual installation allows airing spaces where the installation seemed architecturally impossible.
✓
Maximum efficiency and sustainability in minimum format
CONFORT+ technology LG manages to maintain A+/A and SEER 5,60 with ultra minimum R32 refrigerant load (0.8 kg) in the most compact format of the market, demonstrating excellence engineering without compromising sustainability.
✓
Absolute silence in intimate premium spaces
Its exceptional sound levels (from 22 dB) make it completely inaudible, ideal for high-end studies, exclusive consultations and premium intimate spaces where absolute silence defines the quality experience.
Why choose the Air Conditioning Low Silueta LG CL12F CONFORT+?
Main applications
️
Historical Buildings Innermos
Very small spaces in heritage buildings where architectural limitations are absolute and any structural modification is strictly prohibited.
🏢
Individual Professional Studies
Very small professional staff, individual studies, single-person offices and intimate workspaces in buildings with the greatest restrictions of space.
💎
Exclusive Premium Spaces
Very small exclusive jewelry, luxury intimate boutiques and ultra compact premium commercial spaces that require perfectly air-conditioned environment with absolute silence in impossible architectural conditions.
Installation Information
Important considerations:
- La indoor Unit CL12F allows both horizontal and vertical installation by ABDAMA0 accessory, with ultra-low height of only 200mm.
- Maximum length of pipe: 25 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 10 meters of pipe, it is necessary to add only 15 g/m for upper lengths.
- Uniform fridge connections: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2") in both units.
- La outdoor Unit UUA1.UL0 ultra compact (770x545x288 mm) facilitates installation in the most restrictive outdoor spaces on the market.
- R32 refrigerant load (0.8 kg) for maximum environmental sustainability.
- Installation is required by highly specialized technical staff in low silhouette systems and certified by LG to ensure proper operation and maintain the validity of the exclusive premium CONFORT+ warranty.
The exclusive solution for very small spaces with absolute architectural limitations!
The Ducted Air Conditioner Low silhouette LG CL12F CONFORT+ represents the most exclusive engineering of LG to solve the most extreme technical challenge: premium professional air conditioning in just 200mm high for very small spaces. It invests in the most select technology for architecturally unique spaces.
Request your custom budget today!
KITCONDCL12
Data sheet
- Brand
- LG
- Indoor Unit
- CL12F.N50
- Outdoor Unit
- UUA1.UL0
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.395
- Refrigerator capacity (kcal / h)
- 2.920
- Nominal consumption Cold (W)
- 1.050
- Energy class (cold)
- A+
- SEER
- 5,6
- Heat capacity (W)
- 4.000
- Heat capacity (Kcal / h)
- 3.440
- Nominal heat consumption (W)
- 1.080
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 18,0
- Weight Outdoor Unit (Kg)
- 33,3
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 28m2 aprox.
- Dimensions UI (ANXFXH) mm
- 900 x 460 x 190
- EU dimensions (anxfxh) mm
- 770 x 288 x 545
