Air Conditioning Mitsubishi Electric MSPEZ-35VJA
Refrigeration 3600W 日本語 Heating 4100W ̄s Efficiency A+ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-35VJA is the compact solution of the Standard Inverter series with 3600W in cooling and 4100W heating. With indoor Unit only 250mm high, this hidden duct system offers efficient and discreet air conditioning for small residential and commercial spaces that require maximum discretization.
3️ 3600W Refrigeration
EER 3.90 - Efficient
4 4100W Heating
COP 4,00 - Excellent
▪ SEER 6,3 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M35JA
Outdoor Unit: SUZ-M35VA
Air flow: 10,0-14,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 199 kWh/year
Refrigerant Gas: R-32 (0.90 kg)
PAR-41MAA Command: Advanced control
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MSPEZ-35VJA Standard Inverter Single-Phase Ducted Air Conditioning
Referencia: MSPEZ-35VJA
€1,404.99
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MSPEZ-35VJA
Refrigeration 3600W 日本語 Heating 4100W ̄s Efficiency A+ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-35VJA is the compact solution of the Standard Inverter series with 3600W in cooling and 4100W heating. With indoor Unit only 250mm high, this hidden duct system offers efficient and discreet air conditioning for small residential and commercial spaces that require maximum discretization.
3️ 3600W Refrigeration
EER 3.90 - Efficient
4 4100W Heating
COP 4,00 - Excellent
▪ SEER 6,3 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M35JA
Outdoor Unit: SUZ-M35VA
Air flow: 10,0-14,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 199 kWh/year
Refrigerant Gas: R-32 (0.90 kg)
PAR-41MAA Command: Advanced control
Security policy
Delivery policy
Refund policy
Mitsubishi Electric MSPEZ-35VJA
Ducted Air Conditioner 3600W Standard Inverter Series
Higher Performance Standard Series
The MSPEZ-35VJA represents excellence in compact air conditioning with Inverter technology. With 3600W in cooling and 4100W heating, offers a perfect balance between power and efficiency. Your rating SEER 6,3 A++ guarantees ultra-efficient consumption of only 199 kWh/year, ideal for spaces of 30-45m2.
Tecnología Ecological R32 Technology
Equipped with refrigerant R32, reduces environmental impact by 68% vs R410A. The load of only 0.90 kg minimizes emissions while maximizing efficiency. Its ecological design complies with the strictest regulations and prepares the equipment for the future of sustainable climate control.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 3600W
- • Operation Range: 0.8-3.9 kW
- • EER: 3.90 (Excellent)
- • SEER: 6.3 A++ (Ultraefficient)
- • Consumption: 0.92 kW nominal
Performance Heating
- • Nominal power: 4100W
- • Operation Range: 1.1-5.0 kW
- • COP: 4,00 (Excellent)
- • SCOP: 4.1 A+ (High Efficiency)
- • Consumption: 1.02 kW nominal
S Technical characteristics
- • Indoor Unit: PEAD-M35JA
- • Outdoor Unit: SUZ-M35VA
- • Dimensions: 250x900x732mm
- • Interior weight: 25.0 kg
- • Tuberia: Ø6,35/9,52mm
Y Control and Functionality
- • PAR-41MAA Command: Advanced control
- • Air flow: 10,0-14,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 23-30 dBA
- • Food: 230V/1~ 9,6A
▼ Ultra-efficient annual consumption
Only 199 kWh/year cooling Δ 884 kWh/year heating
Maximum energy saving with state-of-the-art Inverter technology
Installation and Dimensions Standard Series

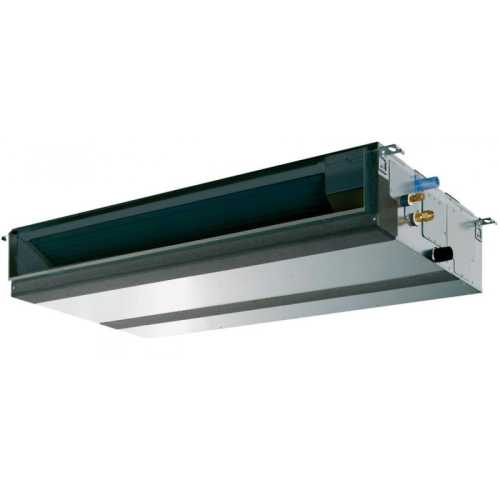

📐 Indoor Unit PEAD-M35JA
- • Dimensions: 250 x 900 x 732 mm
- • Ultra compact height: Only 250mm
- • Weight: 25.0 kg (comfortable handle)
- • Air flow: 10,0-12,0-14,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 23-27-30 dBA

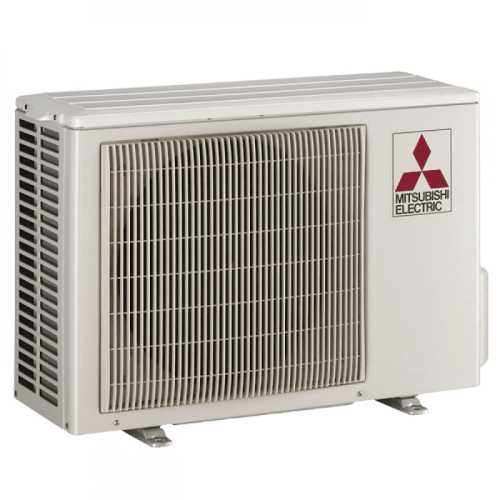

🏢 Outdoor Unit SUZ-M35VA
- • Dimensions: 550 x 800 x 285 mm
- • Weight: 35 kg (compact)
- • Air flow: 34 m3/min
- • Sound level: 48 dBA
- • Food: 230V/1~ - 9.6A
- • Operation range: -10°C to +46°C

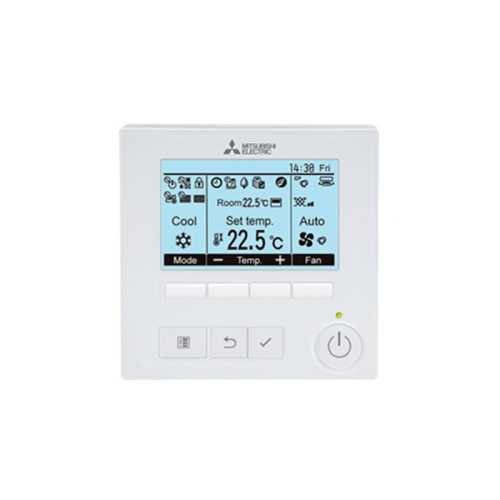

PAR-41MAA Advanced Control
Includes command PAR-41MAA with total system control. Weekly programming, precise temperature control, automatic operating modes and consumption monitoring. Compatible with domotic systems and remote control by WiFi (optional accessory).
Featured functions: Programming 7 days, Zone control by area, Automatic economic mode
Y Connectivity and Expansion
Prepared for integration with home automation systems. Optional WiFi connection MAC-587IF for smartphone control. Interface M-NET for integration with centralized energy management systems.
Available options: WiFi, M-NET, External signals, Remote sound temperature
Y️ Installation and Maintenance
Requirements Installation
- • Tuberia: Ø6,35/9,52mm
- • Max length: 20m total / 12m vertical
- • Electrical connection: 230V/1~ monophasic
- • Minimum space: According to installation standards
S️ Included Protections
- • Condensing control: Incorporated
- • Dehydrator filter: Standard series
- • Overload protection: Automatic
- • Self-diagnosis: Complete system
Gos️ Rangos Operation
- • Refrigeration: -10°C to +46°C ext.
- • Heating: -10°C to +24°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Y Warranty and Certifications
Warranty Mitsubishi Electric 日本語 CE Certification Cumple ErP 2021
Japanese quality with specialized technical support España
El Transform your Space with MSPEZ-35VJA
Smart 3600W air conditioning with maximum efficiency A++ and advanced control PAR-41MAA
🔇
23 dBA Silent
Ultrasilious operation
📏
250mm Compact
Standard discreet series
PAR-41MAA Control Include + Ecological R32
Advanced command with weekly programming • Refrigerant Gas R32 reduced environmental impact • Japanese Inverter technology • Installation occult ducts • Spaces 30-45m2

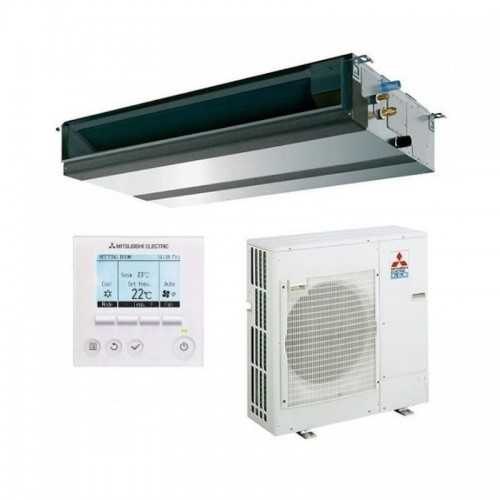

▷ Includes in the Price
- • Indoor Unit PEAD-M35JA
- • Outdoor Unit SUZ-M35VA
- • PAR-41MAA
- • Basic installation kit
S Unique benefits
- • Warranty Mitsubishi Electric
- • Professional installation available
- • Specialized technical support
- • Certified A++ Efficiency
↓ Intelligent acclimatization Available!
MSPEZ-35VJA technology Inverter and efficiency A++ - Standard compact series
🎯 Spaces: 30-45m2
▪ Consumption: 199 kWh/year
🌿 Gas: R32 Ecological
📱 Control: PAR-41MAA
🏆 Mitsubishi Electric Standard MSPEZ-35VJA series
Efficient air conditioning with Japanese technology • Advanced control PAR-41MAA included • Professional installation available
blur(5px)
️
SEER 6,3 A++
Ultra-efficient 199 kWh/year
🔥
COP 4,00
Excellent 4100W heating
MSPEZ-35VJA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-M35JA
- Outdoor Unit
- SUZ-M35VA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.600
- Refrigerator capacity (kcal / h)
- 3.096
- Nominal consumption Cold (W)
- 920
- Energy class (cold)
- A++
- SEER
- 6,3
- Heat capacity (W)
- 4.100
- Heat capacity (Kcal / h)
- 3.526
- Nominal heat consumption (W)
- 1.020
- Energy class (heat)
- A+
- SCOP
- 4.1
- Minimum sound pressure UI DB
- 23
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 35,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 30m2 aprox.
- Dimensions UI (ANXFXH) mm
- 900 x 732 x 250
- EU dimensions (anxfxh) mm
- 800 x 285 x 550
