Air Conditioning Haier Health Connect 140 Monofásico
Refrigeration 13400W 日本語 Heating 15000W ̄s Efficiency A++ Δ R-32 Δ Conductors Media Pressure
The Air Conditioning Haier Health Connect 140 Monofásico is the maximum sanitary monophase power with 13400W in cooling and 15000W heating. With indoor Unit ultra-compact single 248mm high, double rotary inverter and food standard monophase, this hidden duct system integrates technology Health Connect max with UVC sterilization, Wi-Fi hOn, outdoor air and drainage pump for large commercial and residential applications that require standard installation.
13️ 13400W Refrigeration
Rank 4.0-15.0 kW
15000W Heating
Rank 4.0-16.0 kW
▪ SEER 6,1 / SCOP 4,8
Efficiency A+ / A++
Monof Classic 220-240V
Maximum Power
Key Specifications Health Connect Maximum Power
Indoor Unit: AD140S2SM9FA(H)
Outdoor Unit: 1U140S2SN2FA
Air flow: 1500-2500 m3/h
Sonic Pressure: 39 dBA
Wi Wi-Fi hOn: Maximum power control
▼ Sterilization: Maximum UVC power
Refrigerant Gas: R-32 (2.50 kg)
Maximum Length: 70m pipe
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

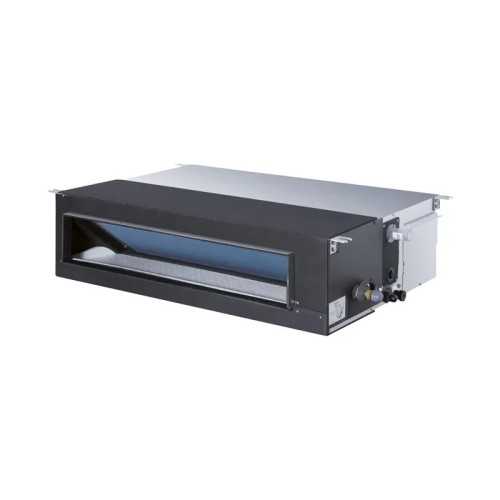

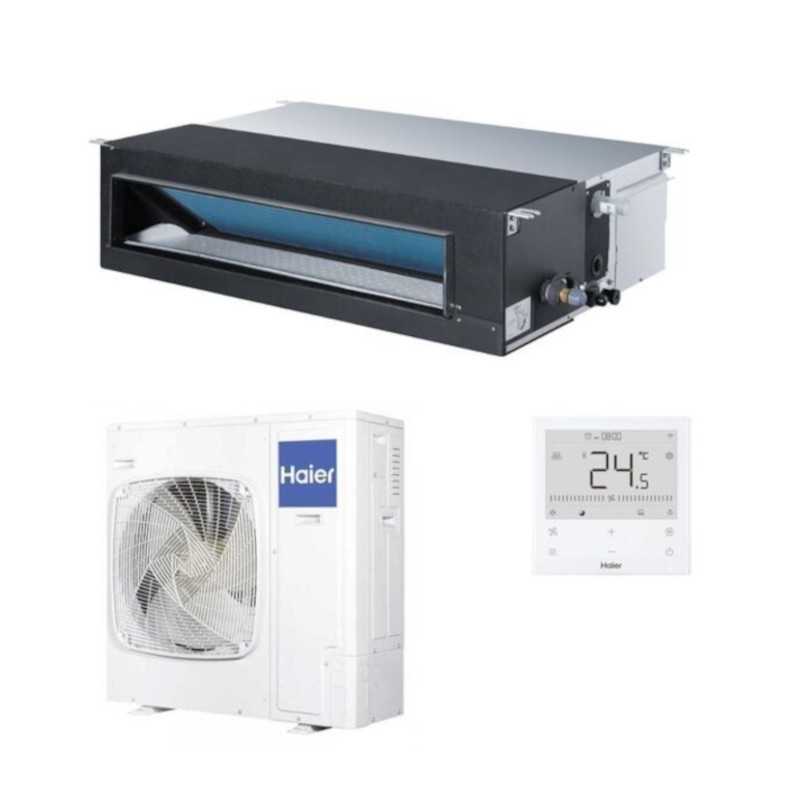

Ducts Haier Health Connect 140 AD140S2SM9FA (H) + 1U140S2SN2FA (1 fan) Monof.
Referencia: CONDUCTOS140HCM
€2,156.96
Tax included
Available!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Haier Health Connect 140 Monofásico
Refrigeration 13400W 日本語 Heating 15000W ̄s Efficiency A++ Δ R-32 Δ Conductors Media Pressure
The Air Conditioning Haier Health Connect 140 Monofásico is the maximum sanitary monophase power with 13400W in cooling and 15000W heating. With indoor Unit ultra-compact single 248mm high, double rotary inverter and food standard monophase, this hidden duct system integrates technology Health Connect max with UVC sterilization, Wi-Fi hOn, outdoor air and drainage pump for large commercial and residential applications that require standard installation.
13️ 13400W Refrigeration
Rank 4.0-15.0 kW
15000W Heating
Rank 4.0-16.0 kW
▪ SEER 6,1 / SCOP 4,8
Efficiency A+ / A++
Monof Classic 220-240V
Maximum Power
Key Specifications Health Connect Maximum Power
Indoor Unit: AD140S2SM9FA(H)
Outdoor Unit: 1U140S2SN2FA
Air flow: 1500-2500 m3/h
Sonic Pressure: 39 dBA
Wi Wi-Fi hOn: Maximum power control
▼ Sterilization: Maximum UVC power
Refrigerant Gas: R-32 (2.50 kg)
Maximum Length: 70m pipe
Security policy
Delivery policy
Refund policy
Haier Health Connect 140 - Maximum Monophase Power
Behavior Media Pressure - 13400W Refrigeration / 15000W Heating
Monophosic Feeding Δ Double Inverter Δ UVC Δ 248mm
M High Power Health Connect Monophase
The Haier Health Connect 140 Monofásico represents a technological milestone by combining maximum power of 13400W cooling and 15000W heating with standard monophasic power and the most advanced technology on the market. This system of single ultra-compact ducts 248mm high is specifically designed for applications that require maximum air power with advanced technology but only have standard monophase electrical infrastructure.
This unique unit allows efficient air conditioning of large commercial spaces, large housing, corporate offices and semi-industrial applications without the need for three-phase electrical installation, offering the maximum versatility of installation. Equipped with rotary inverter double compressor optimized for single-phase feeding, this model offers maximum energy efficiency with efficiency SEER 6,1 A++ and SCOP 4,8 A++, keeping energy consumptions optimized despite its exceptional power.
The series Health Connect 140 integrates all the most advanced air purification technologies: maximum power UVC sterilization, 99.9% antibacterial filtration, controlled external air exchange, advanced Wi-Fi smart control, and high capacity drainage pump. Its design allows efficient air conditioning of up to 110-170m2 with fully purified air, renovated and with maximum guarantees, all with standard electrical installation.
️
Maximum Refrigeration
13400W
Modulant range 4.0-15,0 kW
🔥
Absolute heating
15000W
Modulant range 4.0-16,0 kW
📐
Maximum coverage
110-170 m2
Large spaces
▪
Monof
220-240V
Standard installation
S Technologies Health Connect Maximum Power
UVC Sterilization Maximum Power
La lED UV light incorporated maximum power eliminates real-time aerial pathogens at the entrance of the appliance with the highest sterilization capacity of the Health Connect range, ensuring a completely sterilized and healthy air output for high demand applications. This hospital grade UVC sterilization technology neutralizes viruses, bacteria, fungi and harmful microorganisms with an efficacy greater than 99.9%, providing an ultra-safe and hygienic interior environment for large commercial spaces, large homes and semi-industrial applications.

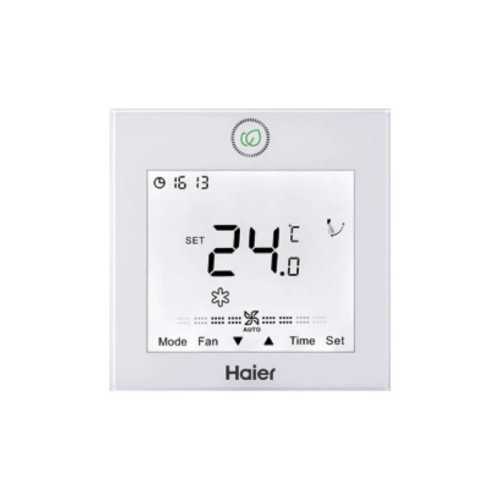

Intelligent Control Wi-Fi hOn Maximum Power
The wi-Fi control integrated with maximum power hOn application provides complete intelligent system management from any location with high demand optimized features. Includes programmable remote on/off, advanced selection of operating modes, ultra-precise multi-zone temperature control, variable fan speed up to 2500 m3/h, optimized airflow adjustment, advanced time programming, high-power programmable UV function, Steri-Clean technology at 56°C for deep disinfection of the entire system, real-time monitoring of energy consumption, and predictive maintenance functions.
De️ External Air System Maximum Capacity
The maximum capacity outdoor air system allows controlled and dosed introduction of clean air from the outside with optimized flows for high demand applications, constantly renewing the inner air and avoiding the concentration of CO2, contaminants and harmful particles. This function is critical in large spaces, corporate offices, shopping centers, large homes, or facilities with high occupancy, ensuring a healthy, well oxygenated interior environment and according to stricter internal air quality regulations.
Antibacterial Filtration 99.9% Maximum Effectiveness
La highest efficiency Air Guard technology integrated offers an antibacterial filtration of 99.9% with the highest capacity of the range, eliminating ultrafine particles, allergens, bacteria, viruses, spores and circulating air pollutants with optimized flow rates for high demand applications. This multilayer protection barrier, combined with maximum-power UVC sterilization, creates a hospital-grade air purification system that guarantees the highest quality and safety of the interior air.
▪ Advantages Maximum Power Monophosic Food
La monophasic power supply 220-240V allows you to install maximum air power in any standard electrical infrastructure, without the need for three-phase installation. With 3 x 6.0 mm2 power cable and maximum intensity 30.0A, this configuration offers maximum installation versatility, being ideal for large homes, offices, small shops or applications that require maximum power with standard electrical infrastructure.
De Maximum Drainage Pump Capacity
Health Connect 140 units include a series of maximum capacity drainage pump which allows a maximum height difference of 600mm measured from the base of the machine, optimized for high power installations with maximum condensate flow rates. In addition, it offers reversible gravity drainage on both sides, providing maximum flexibility in the design of maximum power facilities and adapting to any demanding architectural configuration.
Performance and Maximum Efficiency
S Energy Certifications A+++ Maximum Power
SEER 6,1
Seasonal efficiency Refrigeration
Class A++
SCOP 4,8
Seasonal efficiency Heating
Class A++
EER 2,55
Energy efficiency Refrigeration
Optimized
COP 3,30
Coefficient Performance Heating
Efficient
S Technical Specifications Maximum Potential
De Maximum Ventilation System Capacity
The variable airflow from 1500 to 2500 m3/h with four maximum capacity speeds (Q/L/M/H) allows perfect adaptation to different operating needs in large spaces. The highest efficiency centrifugal fan with state-of-the-art EC engine ensures controlled operation from 39 dBA at minimum speed up to 48 dBA at maximum speed, maintaining exceptional acoustic comfort even in maximum power for applications with standard monophase power.
Media Static Pressure Average Variable Maximum
The system external static pressure 25 to 150 Pa (determined 37 Pa) provides maximum flexibility in the design of ducts for maximum complexity facilities with monophase feeding. This superior capacity allows installations with extended lengths up to 70 meters (maximum of the monophase range), multiple complex forks, advanced multi-zone distribution, and overcoming significant load losses in large-scale installations with standard electrical infrastructure.
Ultra-Compact Design Technical Agreement
📦 Indoor Unit Récord
Dimensions: 1500 x 700 x 248 mm
Weight: 48,0 kg
: Récord: 248mm with 13400W

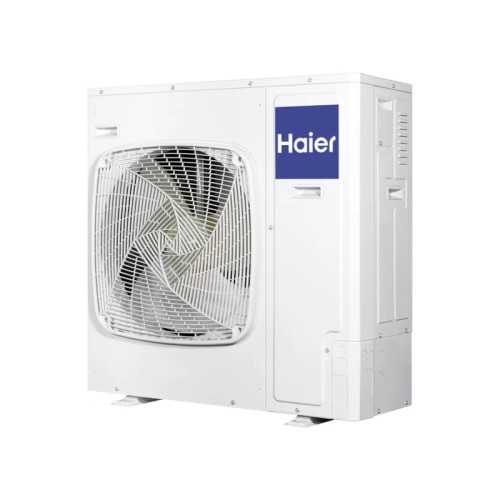

▪ Outdoor Unit Monof
Dimensions: 950 x 370 x 965 mm
Weight: 68.0 kg
▪ Unique Advantages Maximum Monophosic Power
This unit represents a technological milestone in offering maximum power of 13400W with standard monophase power, eliminating the need for costly and complex triphasic installation. With 3 x 6.0 mm2 power cable and maximum intensity 30.0A, allows you to make the most of the existing monophase electrical infrastructure, ideal for large housing, large offices, small shops or applications that require maximum air power without major electrical modifications.
Installation Maximum Simplified Power
La connection of simplified cables by single screw facilitates the installation of maximum power, while the options of double air return (after or below) provide maximum architectural adaptability. Connections are optimized for maximum power installations: 3/8" liquid pipe and 5/8" gas pipe", allowing exceptional lengths up to 70 meters with maximum height of 30 meters, record for single-phase equipment of this power.
🌿 Refrigerant Gas R32 Ecological Maximum Charge
The coolant Organic R32 (2.50 kg of load) reduces environmental impact by 68% compared to traditional refrigerants, optimized for maximum power. The factory load includes 30 meters of standard pipe, requiring additional charge of 45g/m only in higher installations, facilitating the installation and commissioning of this maximum power equipment with standard procedures.
Maximum Flexible Air Distribution Capacity
Health Connect 140 units are compatible with the most demanding installation solutions through circular or rectangular channels of large section, allowing the distribution of air personalized according to the most complex architectural needs. This maximum capacity flexibility is ideal for large homes, large offices, small malls, or facilities that require maximum power, discreet and completely healthy air conditioning with standard electrical infrastructure.
Tecnología Dual Inverter Technology Maximum Power
The rotary inverter double compressor optimized for maximum monophasic power provides ultra-sound boots, ultra-precise power modulation, exceptional silent operation, and maximum energy efficiency. This technology allows to reach 13400W with standard monophasic power supply, ensuring superior operating stability, greater durability of intensive equipment, and optimized energy consumption for high-power applications that require continuous operation and maximum reliability.
á Maximum Applications Health Connect 140 Monophosic
▪
Wide housing
🏢
Large Offices
🏬
Small Trades
🏥
Great Consultations
️
Restaurants
🎓
Wide Wings
CONDUCTOS140HCM
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 5.510
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 5.770
- Energy class (heat)
- A++
- SCOP
- 4,8
- Minimum sound pressure UI DB
- 39
- Weight Indoor Unit (Kg)
- 48,0
- Weight Outdoor Unit (Kg)
- 84,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Integrated WiFi
- Recommended area
- Estancia de 110m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1500 x 700 x 248
- EU dimensions (anxfxh) mm
- 950 x 370 x 965
