Air Conditioning Panasonic KIT-140PF3Z5
Refrigeration 13400W 日本語 Heating 15000W 日本語 A+ Δ R-32 Δ Maximum Power
The Air Conditioning Panasonic KIT-140PF3Z5 is the maximum power solution of the PACi NX Standard Series with 13400W in cooling and 15000W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included for large surface spaces that require powerful and efficient air conditioning.
13️ 13400W Refrigeration
EER 4,16 - Large surface
15000W Heating
COP 3.81 - Maximum power
▪ SEER 6,1 / SCOP 4,2
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Specifications Key Conduct Maximum Power

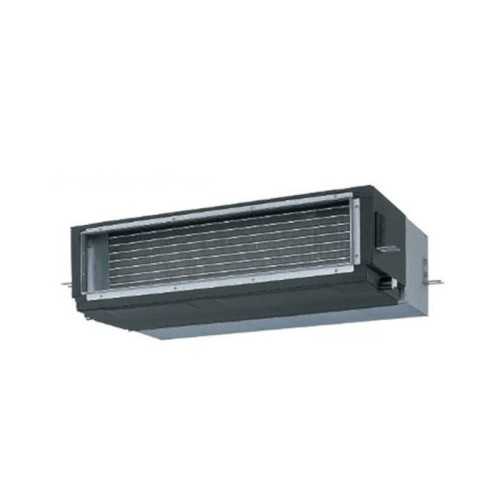

Indoor Unit: CS-140PF3Z5EAW

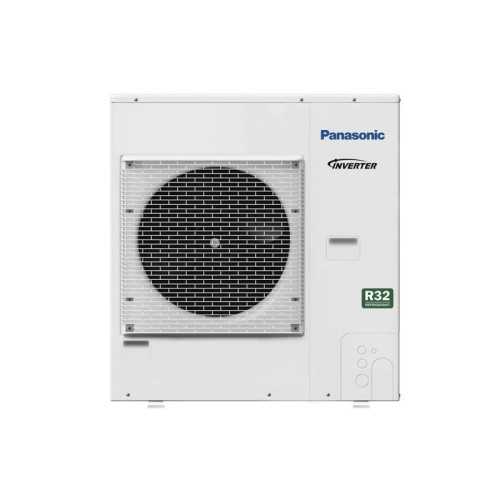

Outdoor Unit: CU-140PF3Z5EA
Air flow: 34,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 27 dBA
Annual consumption: 767 kWh/year
Refrigerant Gas: R-32 (3.1 kg)
Length Tuberia: 5-50m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Panasonic KIT-140PF3Z5-6W PACi NX Standard Series
Referencia: KIT-140PF3Z5-6W
€3,350.27
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-140PF3Z5
Refrigeration 13400W 日本語 Heating 15000W 日本語 A+ Δ R-32 Δ Maximum Power
The Air Conditioning Panasonic KIT-140PF3Z5 is the maximum power solution of the PACi NX Standard Series with 13400W in cooling and 15000W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included for large surface spaces that require powerful and efficient air conditioning.
13️ 13400W Refrigeration
EER 4,16 - Large surface
15000W Heating
COP 3.81 - Maximum power
▪ SEER 6,1 / SCOP 4,2
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Specifications Key Conduct Maximum Power
Indoor Unit: CS-140PF3Z5EAW
Outdoor Unit: CU-140PF3Z5EA
Air flow: 34,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 27 dBA
Annual consumption: 767 kWh/year
Refrigerant Gas: R-32 (3.1 kg)
Length Tuberia: 5-50m
Security policy
Delivery policy
Refund policy
Air Conditioning Panasonic KIT-140PF3Z5
Maximum Power 13400W Δ PACi NX Standard Δ nanoeTM X Mark 2 Δ A+
Ciones Maximum Power and Benefits
The Panasonic KIT-140PF3Z5 represents the summit of the PACi NX Standard Series, offering 13400W of frigorific power and 15000W heat power with monophasic power 220-240V. This maximum capacity unit is designed for large surface spaces that require powerful, efficient and reliable air conditioning, maintaining the same level of silence and advanced performance of the series.
De Features of Maximum Power
Area: 120-160m2 large capacity
▪ Frigorific power: 13400W maximum
Calorific power: Top 15000W
Food: Monofs 220-240V
: Air flow: 34,0 m3/min high
🔧 Indoor Unit: 1400mm professional
NanoeTM X Mark 2 Advanced Technology
Technology nanoetm X Mark 2 series generates 9.6 billion hydroxyl radicals per second, providing continuous and effective air purification. This technology eliminates bacteria, viruses, odors and allergens from the environment, creating a healthier and more comfortable space for large surfaces and spaces with high occupation.
Zada Advanced Purification
- 9.6 billion radical hydroxyl/second
- Removing bacteria and viruses
- Reduction of persistent odors
- Environmental allergen control
Salud Benefits Health
- Cleaner and healthy air
- Allergic symptoms reduction
- More hygienic environment
- Continuous silent operation
Energy Efficiency A+ Superior
With SEER 6,1 A+ in cooling and SCOP 4,2 A+ in heating, the KIT-140PF3Z5 maintains excellent energy efficiency despite its maximum power. The system consumes only 767 kWh annual, optimizing energy performance for large surface spaces.
▼ Economic advantages
- Reduced annual operating cost
- Fast repayment
- Energy classification A+
Efficiency
SEER:
6.1 A+
6.1 A+
SCOP:
4.2 A+
4.2 A+
EER:
4,16
4,16
COP:
3,81
3,81
Dual PF3 Advanced Installation
The system PF3 dual installation allows mounting indoor Unit so much horizontal position as vertical using the same drainage tray, providing maximum flexibility to fit any false ceiling settings. This versatility is particularly valuable in large surface spaces where architectural limitations require adaptable solutions.
Flexibility Installation
- Horizontal: Standard configuration
- Vertical: reduced height spaces
- Misma tray both positions
- Total architectural adaptation
S️ Technical advantages
- Professional 1400mm unit
- Optimized false ceiling height
- Maintenance accessibility
- Uniform air distribution
Miento Operation Ultra Silent 27dBA
Despite its maximum power 13400W, the KIT-140PF3Z5 maintains exceptionally silent operation with only 27 dBA sound pressure. This feature is fundamental for spaces that require high power without compromising acoustic comfort, such as large offices, commercial spaces or large housing.
Tiva Comparison Sonora
- 27 dBA: Very soft whisper
- Less than whispered conversation
- Ideal sensitive noise spaces
Nivel Sound level
27 dBA
Ultra Quiet
Perfect for spaces that require maximum power with minimal noise
Advanced Drying and Control System
Included Dry Pump
Drainage pump included in series capacity 2.7 L/h, allowing elevation to 680mm and efficient condensate evacuation for any space configuration.
- No additional cost installation
- Efficient Condensed Evacuation
- Automatic operation
- Lift height 680mm

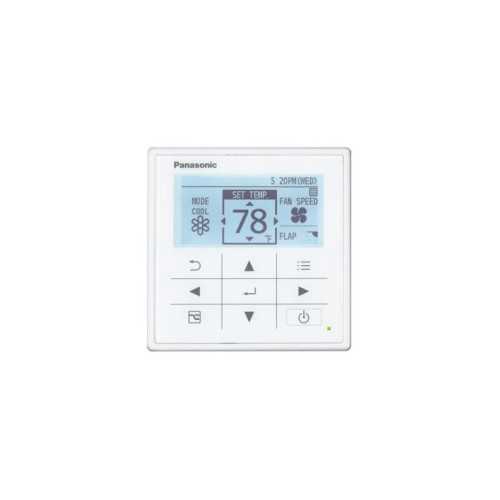

Bluetooth® Control
CZ-RTC6BL Bluetooth® included series for full wireless control from smartphone, with weekly programming and intelligent system management.
- IOS/Android Smartphone Control
- Advanced weekly programme
- Monitoring consumption
- Complete remote management
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Coolant load: 3.1 kg
- Low potential warming
- Increased energy efficiency
- Respectful environment
Dimensions System
- Indoor Unit: 1400mm
- Pipe length: 5-50m
- Maximum level: 20/30m
- Static pressure: 150 Pa
️ Operation
- Outer temperature: -10°C to +46°C
- Air flow: 34,0 m3/min
- Power supply: 220-240V 1~
- Annual consumption: 767 kWh
KIT-140PF3Z5 - Maximum Power PACi NX Standard Series
13400W Power Δ nanoeTM X Mark 2 ̄s 27dBA Silence Δ A+ Efficiency Δ Dual Installation
Maximum Power Panasonic KIT-140PF3Z5!
13400W Power Δ nanoeTM X Mark 2 Δ Solo 27dBA Δ Dual PF3 Installation
Why Choose the KIT-140PF3Z5?
✓ Maximum Power: 13400W cooling, 15000W heating
✓ Ultra Silence: Only 27dBA, ideal any space
✓ nanoeTM X Mark 2: 9.6 billion radical hydroxyl
✓ Dual installation: Horizontal/vertical same tray
✓ Bluetooth® Control: CZ-RTC6BL included
✓ Drying Pump: Included without additional cost
Online Exclusive Offer
PARTICULAR PRICE
Consult exclusive conditions
Consult exclusive conditions
Series includes:
- Internal and outer units
- CZ-RTC6BL Bluetooth®
- Integrated drainage pump
- Official guarantee Panasonic
S Featured Technical Specifications
️ Frigorific Power
13400WCalorific power
15000WEfficiency SEER
6.1 A+Nivel Sound level
27 dBASurface
120-160m2Food
220-240VKIT-140PF3Z5 - The Maximum Power Solution
13400W Δ nanoeTM X Mark 2 ̄s 27dBA Ultra Silent Installation Dual Δ Control Bluetooth® Δ Pump Included
KIT-140PF3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PF3E
- Outdoor Unit
- U-140PZ3E5
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 4.240
- Heat capacity (W)
- 13.400
- Heat capacity (Kcal / h)
- 11.524
- Nominal heat consumption (W)
- 3.560
- Minimum sound pressure UI DB
- 29
- Weight Indoor Unit (Kg)
- 39,0
- Weight Outdoor Unit (Kg)
- 87,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 110m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 730 x 250
- EU dimensions (anxfxh) mm
- 980 x 370 x 996
