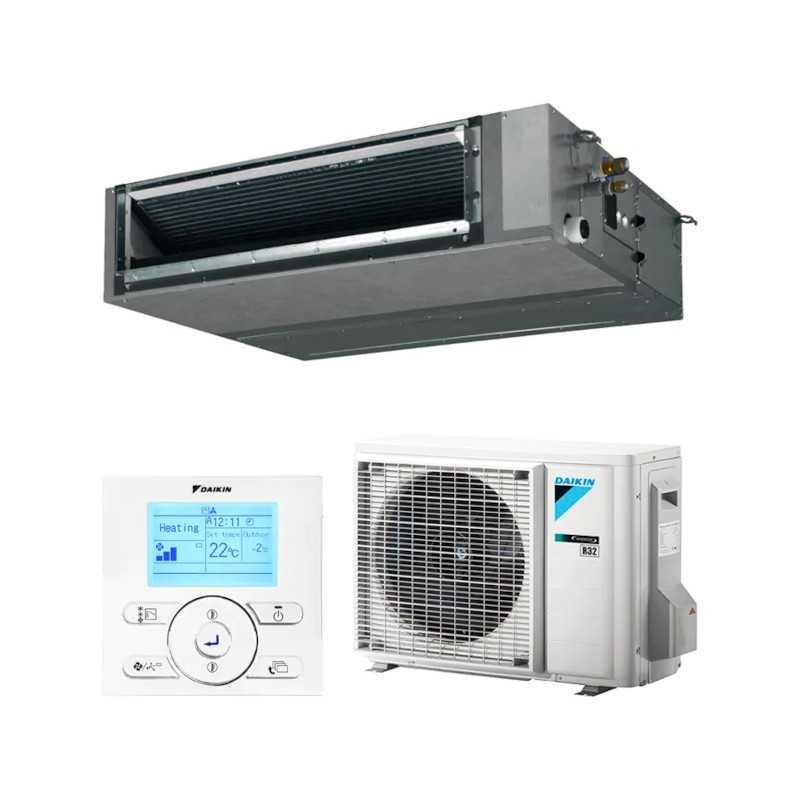

Ducted Air Conditioner Daikin BA35A SKY AIR SERIE ADVANCE
Referencia: BA35A
€1,521.15
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
DAIKIN BA35A SKY AIR ADVANCE
Conductors Pressure Available Δ 30/150 Pa Δ 3400W Δ A+/A+
The Daikin BA35A sets a new standard in commercial air conditioning with its advanced system dual pressure available 30/150 Pa. Designed specifically for applications of 30-35 m2 that require complex or long duct networks, this team combines unprecedented power, efficiency and versatility of installation in its category.
With 3400W cold capacity and 4000W heating, guarantees perfect air conditioning with exceptional energy classification A++/A+ (SEER 6,23 / SCOP 4,07). Its state-of-the-art Inverter technology with refrigerant Organic R-32 (0.76kg) ensures efficient and sustainable operation, while its variable pressure system allows adaptation to any duct design.
Ideal for offices, shops, restaurants and commercial applications where the duct network presents high load losses, BA35A shows that technology Daikin you can overcome the most demanding technical challenges while maintaining maximum energy efficiency and acoustic comfort.
CHARACTERISTICS PRESS
💨
Dual pressure 30/150 Pa
Automatic adaptation to short ducts (30 Pa) or complex networks (150 Pa).
▪
Commercial power
3400W cold / 4000W heat. Professional air conditioning for 30-35 m2.
🌟
Efficiency A+/A+
SEER 6,23 and SCOP 4,07. Maximum commercial energy saving.
🌿
R-32 Ecological
Just 0.76kg load. . Refrigerant Gas next generation with minimal impact.
🔇
Ultra-silent
Just 29-35 dB(A). Total acoustic comfort in commercial environment.
️
3 Speed
Total flow control: 15/10.5 m3/min according to needs.
GENERAL TECHNICAL SPECIFICATIONS

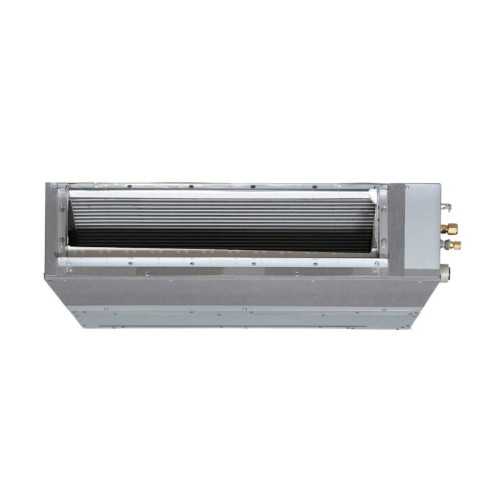

▪ SPECIFICATIONS Indoor Unit FBA35A9

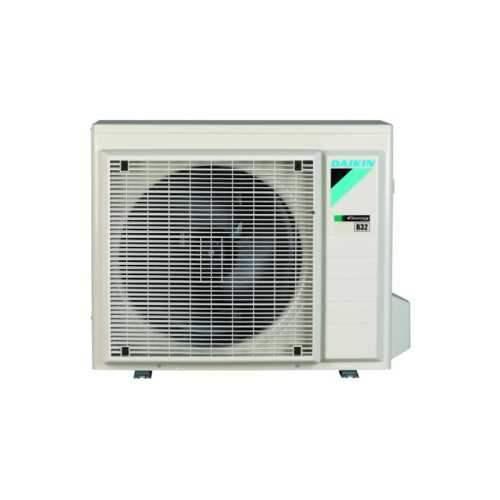

SPECIFICATIONS Outdoor Unit RXM35R
COMMERCIAL BENEFITS PRESS
💨
Dual pressure 30/150 Pa
Automatic adaptation to short ducts or complex networks of high loss
🏆
Efficiency A+/A+
SEER 6,23 and SCOP 4,07 - The maximum commercial energy classification
💰
Annual Extreme Saving
Only 191 kWh cold and 996 kWh heat - Minimum annual consumption
🌿
R-32 Ecological
Only 0.76kg with PCA 675 - Minimum environmental impact
️
Total flow control
3 speeds: 15/10.5 m3/min for perfect adaptation
🔇
Quiet Commercial
29-37 dB(A) - Total acoustic comfort in professional environments
SPECIALIZED TRADE IMPLEMENTATIONS
S Offices and Offices
- Medium offices 30-35 m2
- Comprehensive meeting rooms
- Professional staff
- Studies and consultancies
Y Commercial and Retail
- Medium stores and boutiques
- Pharmacies and optics
- Beauty centers
- Hairdressers and spa
Hostel️ Hostelería Especializada
- Small-medium restaurants
- Coffee shops and pastry shops
- Bars and cocktails
- Corporate eaters
Es Professional services
- Comprehensive medical consultations
- Dental clinics
- Small laboratories
- Physical therapy centers
▪ SYSTEMS PREMISSION
De Flexibility of Conduct
Dual system 30/150 Pa allows installation in short ducts (30 Pa) or extensive networks with multiple derivations and high load losses (150 Pa), adapting automatically.
Clima️ Homogenic air conditioning
15/10.5 m3/min adjustable flow rate guarantees uniform distribution in commercial spaces up to 35 m2, eliminating temperature differences between zones.
E Extreme efficiency A++/A+
SEER 6,23 and SCOP 4,07 represent maximum commercial efficiency. Minimum annual consumption: 191 kWh cold and 996 kWh heat for maximum operating savings.
Professional Installation
Connections Ø6,4" liquid and Ø9,5" gas with maximum pipe 20m and uneven 15m. Extra charge only 20gr/m for flexible installations.
Sustainability R-32
Refrigerant Gas R-32 with only 0.76kg load, PCA 675 and TCO2 equivalent 0.52. Minimum environmental impact with maximum energy efficiency.
Confort Commercial Acoustic
Sound pressure 29-37 dB(A) according to speed. Ideal for commercial environments that require quiet environment: offices, queries, premium shops.
COMPARATIVE PRECISION
BA35A - The Definitive Advantage: The unique combination of dual pressure 30/150 Pa, A+/A+ efficiency and R-32 coolant position BA35A as the most advanced and sustainable solution for demanding commercial applications.
DAIKIN BA35A - PROFESSIONAL DISPONIBLE PRESS
30/150 Pa Δ 3400W Δ A++/A+ Δ R-32 Ecological Δ 3 Speeds
The ultimate commercial solution for complex duct networks with maximum efficiency
CLAVE TECHNICAL SPECIFICATIONS
√ RECOMMENDATION
- Cold capacity: 3400W
- Capacity Heat: 4000W
- SEER/SCOP: 6,23 / 4,07
- Application: 30-35 m2
DIMENSIONS
- IU: 700×245×800 mm (28kg)
- EU: 840×552×350 mm (32kg)
- Pressure: 30/150 Pa dual
- Total weight: 60 kg
INSTALATION
- Connections: Ø6,4" - Ø9,5"
- Max pipe: 20m
- Max: 15m
- Additional charge: 20gr/m
SUSTAINABLE
- Refrigerant Gas: R-32 Ecological
- Charge: Only 0.76 kg
- PCA: 675 (vs 2088 R-410A)
- Annual summary: 191/996 kWh
WHERE'S THE DAIKIN BA35A?
▷ UNIQUE DUAL PRESS
30/150 Pa - automatic adaptation to any network of ducts
▷ A++/A+
SEER 6,23 - The maximum commercial energy classification
▷ R-32 ECOLOGICO
68% less environmental impact vs R-410A
▷ TECHNOLOGY DAIKIN
Guarantee and reliability of the world leader in climate control
💨 Final solution for commercial facilities with complex duct networks
BA35A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FBA35A9
- Outdoor Unit
- RXM35R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.400
- Refrigerator capacity (kcal / h)
- 2.924
- Nominal consumption Cold (W)
- 850
- Energy class (cold)
- A++
- SEER
- 6,2
- Heat capacity (W)
- 4.000
- Heat capacity (Kcal / h)
- 3.440
- Nominal heat consumption (W)
- 1.000
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 29
- Weight Indoor Unit (Kg)
- 28,0
- Weight Outdoor Unit (Kg)
- 32,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 28m2 aprox.
- Dimensions UI (ANXFXH) mm
- 700 x 800 x245
- EU dimensions (anxfxh) mm
- 840 x 350 x 552
