Air Conditioning Panasonic KIT-100PF3Z8-6W
Refrigeration 9500W Δ Heating 9500W ̄s Efficiency A++ Δ R-32 Δ Triphasic
The Air Conditioning Panasonic KIT-100PF3Z8-6W is the high-power triphase solution of the PACi NX Standard Series with 9500W in cooling and 9500W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for large surface spaces that require 380-415V triphase power.
9️ 9500W Refrigeration
EER 3.57 - Triphasic
9 9500W Heating
COP 4,09 - High performance
▪ SEER 6,5 / SCOP 3,9
Efficiency A++ / A
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Triphasic Conduct
Indoor Unit: S-1014PF3E
Outdoor Unit: U-100PZ3E8
Air flow: 32,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 33 dBA
Annual consumption: 508 kWh/year
Refrigerant Gas: R-32 (2.40 kg)
Length Tuberia: 5-50m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

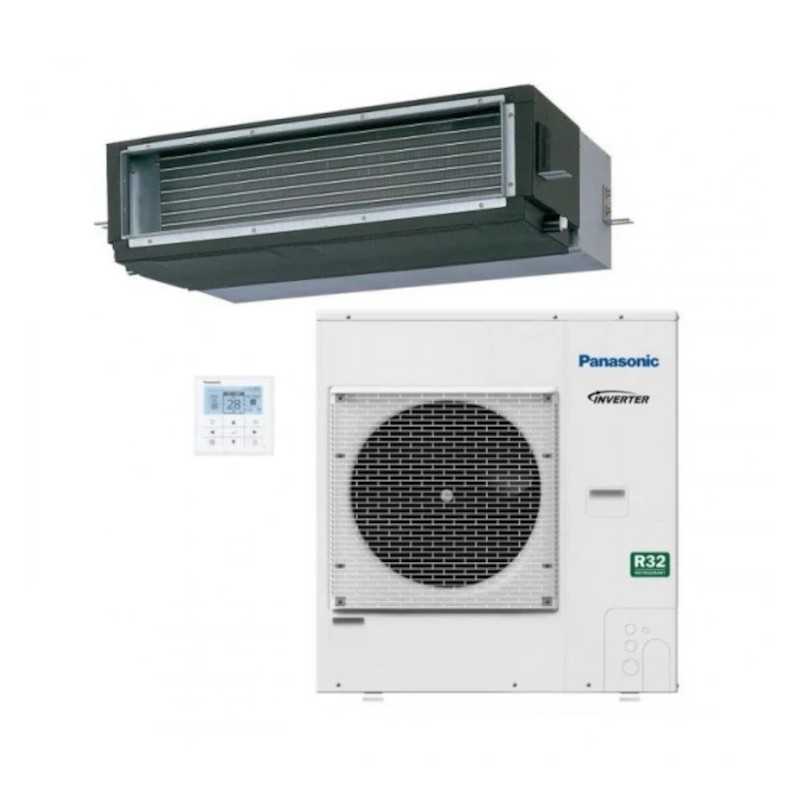

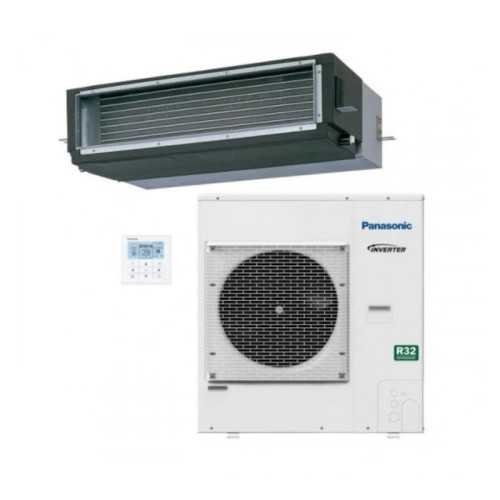

Ducted Air Conditioner Panasonic KIT-100PF3Z8-6W PACi NX Standard Series
Referencia: KIT-100PF3Z8-6W
€2,676.47
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-100PF3Z8-6W
Refrigeration 9500W Δ Heating 9500W ̄s Efficiency A++ Δ R-32 Δ Triphasic
The Air Conditioning Panasonic KIT-100PF3Z8-6W is the high-power triphase solution of the PACi NX Standard Series with 9500W in cooling and 9500W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for large surface spaces that require 380-415V triphase power.
9️ 9500W Refrigeration
EER 3.57 - Triphasic
9 9500W Heating
COP 4,09 - High performance
▪ SEER 6,5 / SCOP 3,9
Efficiency A++ / A
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Triphasic Conduct

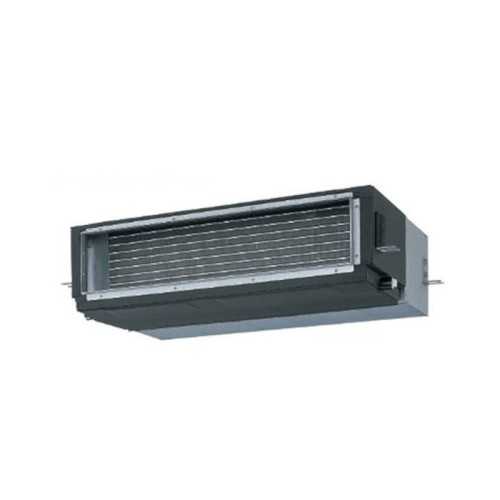

Indoor Unit: S-1014PF3E

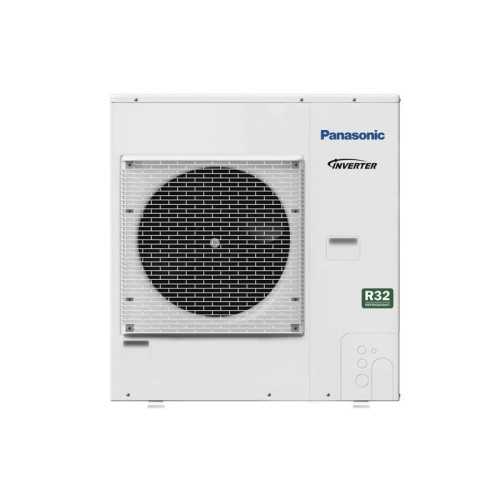

Outdoor Unit: U-100PZ3E8
Air flow: 32,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 33 dBA
Annual consumption: 508 kWh/year
Refrigerant Gas: R-32 (2.40 kg)
Length Tuberia: 5-50m
Security policy
Delivery policy
Refund policy
Air Conditioning Panasonic KIT-100PF3Z8-6W
High-Power 9500W Δ PACi NX Standard Δ nanoeTM X Mark 2 Δ A+++
▪ High Power with Triphatic Feeding
The Panasonic KIT-100PF3Z8-6W represents the high-power triphase solution of the PACi NX Standard Series, offering 9500W of frigorific power and 9500W heat power with 380-415V triphase feeding. This model is designed for large spaces that require high air conditioning power with the stability and efficiency that provides the three-phase power for demanding applications.
Alta Characteristics High Power
Area: 85-120m2 large capacity
▪ Frigorific power: 9500W high
Calorific power: 9500W balanced
Food: 380-415V
: Air flow: 32,0 m3/min high
🔧 Indoor Unit: 1400mm professional
NanoeTM X Mark 2 Advanced Technology
Technology nanoetm X Mark 2 series generates 9.6 billion hydroxyl radicals per second, providing continuous and effective air purification. This technology eliminates bacteria, viruses, odors and allergens from the environment, especially important in large spaces with high occupation where air quality is essential for well-being and productivity.
Alta High Power Purification
- 9.6 billion radical hydroxyl/second
- Removing bacteria and viruses
- Reduction of persistent odors
- Environmental allergen control
S Benefits Great Spaces
- Cleaner air over a large area
- Allergic symptoms reduction
- More hygienic environment
- Continuous silent operation
Energy Efficiency A++ Superior
With SEER 6,5 A++ in cooling and SCOP 3.9 A in heating, the KIT-100PF3Z8-6W offers excellent energy efficiency for its high three-phase power. The system consumes only 508 kWh annual, optimizing energy performance for large spaces where operational efficiency is crucial for profitability.
▼ Triphase benefits
- Reduced annual operating cost
- Three-phase feeding stability
- Energy rating A++
Efficiency
SEER:
6.5 A++
6.5 A++
SCOP:
3.9 A
3.9 A
EER:
3,57
3,57
COP:
4,09
4,09
Professional Dual PF3 Installation
The system PF3 dual installation allows mounting indoor Unit so much horizontal position as vertical using the same drainage tray, providing maximum flexibility to adapt to any large space configuration. La indoor Unit of 1400mm professional offers maximum capacity and performance for applications that require high three-phase power.
Professional flexibility
- Horizontal: Standard configuration
- Vertical: reduced height spaces
- Misma tray both positions
- Professional 1400mm unit
S️
- Up to 50m maximum range
- Static pressure 150 Pa
- Maintenance accessibility
- Higher professional performance
Miento Quiet operation 33dBA
Despite its high three-phase power 9500W, KIT-100PF3Z8-6W maintains silent operation 33 dBA sound pressure. This feature is important for large spaces that require high power without excessively compromising acoustic comfort, maintaining a productive and comfortable environment.
Tiva Comparison Sonora
- 33 dBA: Moderate level for high power
- Equilibrium power-silence
- Suitable for large spaces
Nivel Sound level
33 dBA
Silence for High Power
Perfect balance between power and silence
Advanced Drying and Control System
Included Dry Pump
Drainage pump included in series capacity 3.2 L/h, allowing elevation to 680mm and efficient condensate evacuation for any large space configuration.
- No additional cost
- Efficient Condensed Evacuation
- Automatic operation
- Lift height 680mm
Wi-Fi Control + Bluetooth®

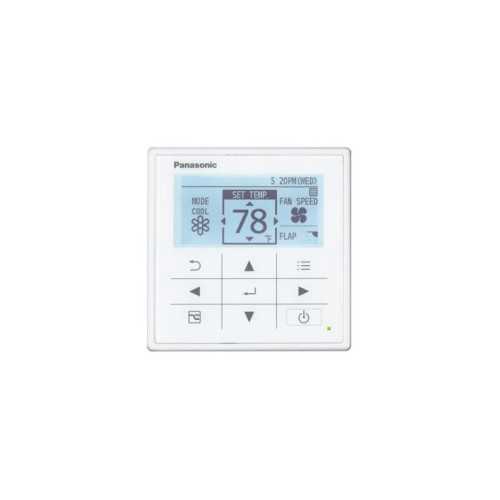

CZ-RTC6BLW Wi-Fi + Bluetooth® included series for full wireless control from smartphone, with advanced connectivity and smart system management.
- Total Remote Wi-Fi Control
- Local Bluetooth®
- Advanced monitoring
- Complete Smart Management
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Coolant load: 2.40 kg
- Low potential warming
- Increased energy efficiency
- Respectful environment
S Triphasic dimensions
- Indoor Unit: 1400mm
- Pipe length: 5-50m
- Maximum level: 15/30m
- Static pressure: 150 Pa
️ Operation
- Outer temperature: -10°C to +43°C
- Air flow: 32,0 m3/min
- Power supply: 380-415V 3~
- Annual consumption: 508 kWh
▪ High Triphasic Power Panasonic KIT-100PF3Z8-6W!
9500W Triphasic Δ nanoeTM X Mark 2 Δ Wi-Fi + Bluetooth® Δ SEER 6,5 A++ Δ Dual Installation
▪ Why choose the KIT-100PF3Z8-6W?
✓ High Triphasic Power: 9500W power supply 380-415V
✓ Maximum Efficiency: SEER 6,5 A++ market leader
✓ nanoeTM X Mark 2: 9.6 billion radical hydroxyl
✓ Wi-Fi Control + Bluetooth®: Advanced CZ-RTC6BLW
✓ Tube 50m: Maximum professional scope
✓ Dual installation: Horizontal/vertical same tray
Professional Triphase Offer
▪ WEB TRIFACTIC PRICE
Check high power special conditions
Check high power special conditions
Triphasic Pack Includes:
- Internal units (1400mm) and exterior
- CZ-RTC6BLW Wi-Fi + Bluetooth®
- Integrated drainage pump
- Official guarantee Panasonic extended
S Triphase Technical Specifications
️ Frigorific Power
9500WCalorific power
9500WEfficiency SEER
6.5 A++Nivel Sound level
33 dBASurface
85-120m2Food
380-415V▪ KIT-100PF3Z8-6W - The High Power Triphasic Solution
9500W Triphasic Δ SEER 6,5 A++ Δ nanoeTM X Mark 2 Δ Wi-Fi + Bluetooth® Δ Tubería 50m Δ Pump Drenage
KIT-100PF3Z8-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PF3E
- Outdoor Unit
- U-100PZ3E8
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.660
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 9.500
- Heat capacity (Kcal / h)
- 8.170
- Nominal heat consumption (W)
- 2.320
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 39,0
- Weight Outdoor Unit (Kg)
- 83,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 80m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 730 x 250
- EU dimensions (anxfxh) mm
- 980 x 370 x 996
