Ducted Air Conditioner Soil Daikin NAS25A
SKY AIR Series Advance 日本語 2600W Cold Only 200mm Depth Δ SEER 5,68 Δ A+/A+
The Air Conditioning by Soil Behaviors Daikin NAS25A of the prestigious Sky Air Advance Series represents the most compact and efficient solution for floor or wall installation with eco-friendly R-32 coolant. Its optimized capacity of 2600W in cooling and 3200W in heating, combined with a revolutionary design of only 200 mm depth and ultra-compact dimensions of 620×750×200 mm, makes it the ideal choice for small residential applications, studios, compact apartments and minimum spaces. Power rating A+/A+ (SEER 5,68 / SCOP 4,24), static pressure up to 48Pa and optional WiFi control, guarantees maximum efficiency in ultra-reduced spaces where the traditional installation is impossible.
️ 2600W Cold
3200W heat / R-32 minimum
Ultra-Compact
620×750×200mm / 23kg
Pressure 48Pa
8.7 m3/min compact flow rate
▪ SEER 5.68
A+/A+ maximum efficiency
Specifications Ultra-Compact Key
Cold capacity: 2600W
Heat capacity: 3200W
Cold consumption: 680W
Consumption heat: 800W
Air flow: 8.7 m3/min
Dimensions: 620×750×200mm
Refrigerant Gas: R-32 (0.76 kg)
Max pipe: 20 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

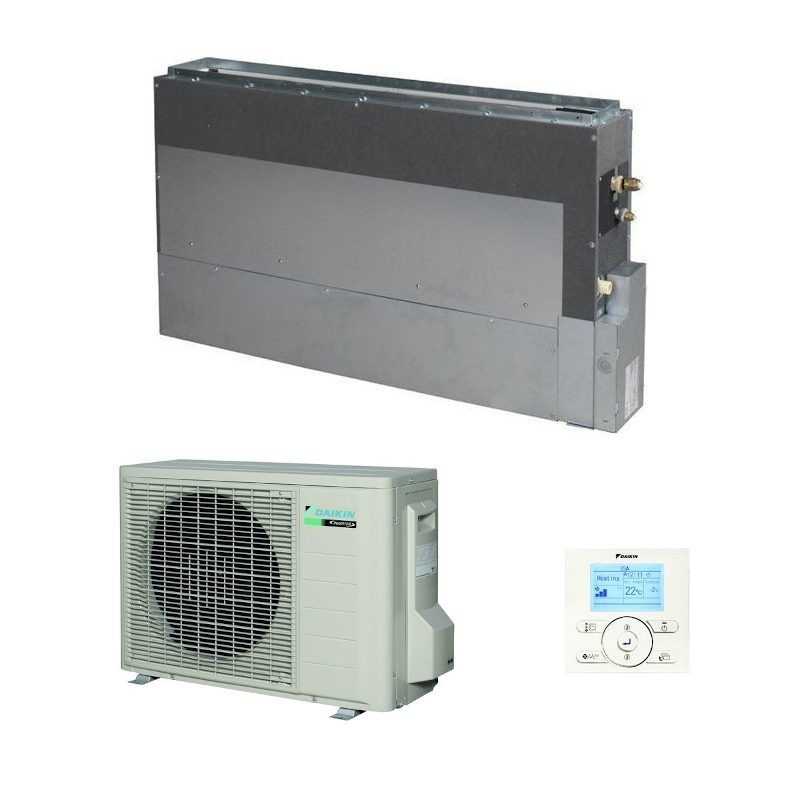

Air Conditioning Vertical Conduct Daikin NAS25A SKY AIR SERIE ADVANCE
Referencia: NAS25A
€1,432.57
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Soil Daikin NAS25A
SKY AIR Series Advance 日本語 2600W Cold Only 200mm Depth Δ SEER 5,68 Δ A+/A+
The Air Conditioning by Soil Behaviors Daikin NAS25A of the prestigious Sky Air Advance Series represents the most compact and efficient solution for floor or wall installation with eco-friendly R-32 coolant. Its optimized capacity of 2600W in cooling and 3200W in heating, combined with a revolutionary design of only 200 mm depth and ultra-compact dimensions of 620×750×200 mm, makes it the ideal choice for small residential applications, studios, compact apartments and minimum spaces. Power rating A+/A+ (SEER 5,68 / SCOP 4,24), static pressure up to 48Pa and optional WiFi control, guarantees maximum efficiency in ultra-reduced spaces where the traditional installation is impossible.
️ 2600W Cold
3200W heat / R-32 minimum
Ultra-Compact
620×750×200mm / 23kg
Pressure 48Pa
8.7 m3/min compact flow rate
▪ SEER 5.68
A+/A+ maximum efficiency
Specifications Ultra-Compact Key
Cold capacity: 2600W
Heat capacity: 3200W
Cold consumption: 680W
Consumption heat: 800W
Air flow: 8.7 m3/min
Dimensions: 620×750×200mm
Refrigerant Gas: R-32 (0.76 kg)
Max pipe: 20 meters
Security policy
Delivery policy
Refund policy
DAIKIN NAS25A SKY AIR ADVANCE
Ultra-Compact Soil Behaviors Only 200mm Depth 2600W
The Daikin NAS25A represents the maximum evolution in compact air conditioning through ducts, specifically designed for spaces of 20-25 m2 where space limitation is critical. With their revolutionaries 200mm deep and 750mm wide ultra-compact, this team establishes a new standard in architectural integration, allowing installation on floor or wall where no other system can reach.
Equipped with 2600W of cold power and 3200W heat, guarantees perfect air conditioning with maximum energy classification A+/A+ (SEER 6,10 / SCOP 4,60). Its ultra-compact design maximizes efficiency: incorporates state-of-the-art R-32 coolant, optional WiFi control, and the exclusive down-oriented connection that revolutionizes the installation by removing auxiliary pipes.
Perfectly adapted for ultra-compact residential applications, studies, small offices and spaces with severe architectural limitations, the NAS25A demonstrates that power and efficiency are not confined to the minimum space, offering technology Daikin cutting edge in the most compact format of the market.
ULTRA-COMPACT FEATURES
🎯
Ultra-Compact Total
Just 200mm deep and 750mm wide. The most compact of the whole series.
▪
Revolutionary Installation
Floor or wall. Final solution for ultra-limited spaces.
▪
Optimized Power
2600W cold / 3200W heat. Perfect air conditioning for 20-25 m2.
🌟
Maximum A+/A+ Efficiency
SEER 6,10 and SCOP 4,60. The maximum efficiency in compact format.
📱
Advance WiFi Control
Optional with ES.DKNWSERVER. Smart management from any device.
🔧
Simplified installation
Port oriented down. Zero auxiliary pipes, minimum installation.
GENERAL TECHNICAL SPECIFICATIONS

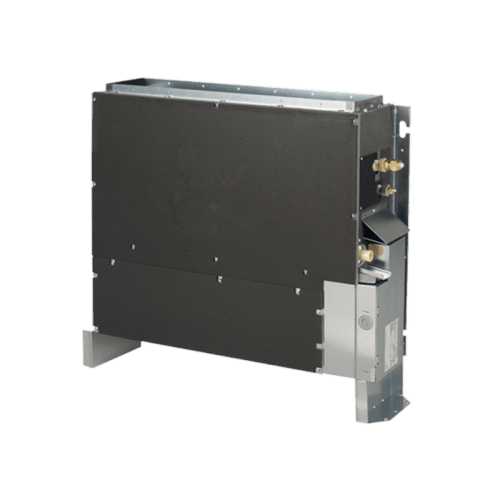

▪ SPECIFICATIONS Indoor Unit FNA25A9

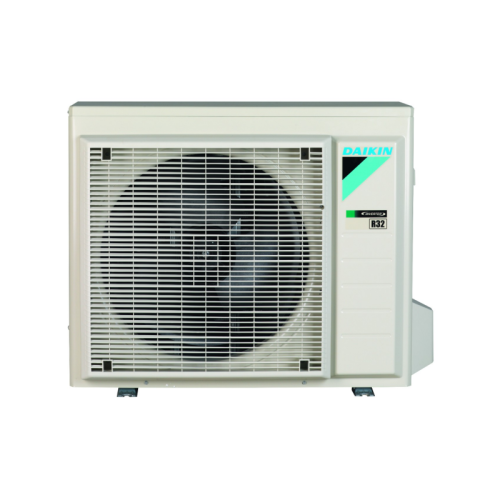

SPECIFICATIONS Outdoor Unit RXM25N9
ULTRA-COMPACTOS
🎯
Ultra-Compact Total
The most compact: 200mm × 750mm allows installation where nothing else fits
🔧
Minimum installation
Zero auxiliary pipes, downward connection, revolutionary installation
💰
Maximum Saving A+/A+
SEER 6,10 and SCOP 4,60 ensure minimum consumption in compact format
📱
Control WiFi Total
Smart management optional from any mobile device
🌿
R-32 Ecological
Only 0.69kg organic refrigerant, minimum environmental impact
🔇
Ultra-silent
Only 24-27 dB(A) - The quietest of the compact series
ULTRA-COMPACT IMPLICATIONS
▪ Residencial Ultra-Compacto
- Studies and small lofts
- Single bedrooms
- Spaces with severe limitations
- Ultra-compact apartments
Specialized commercial
- Small cabins and offices
- Reduced meeting rooms
- Commercial premises mini
- Individual medical consultations
Hotel Hotelero Compacto
- Standard hotel rooms
- Cabins of ships and trains
- Tourist apartments mini
- Pensions
Cases
- Where 200mm is absolutely critical
- Facilities under stairs
- Reforms without possibility of work
- Architecturally impossible spaces
▪ ULTRA-COMPACTES SYSTEMS BY CONDUCTS
▪ Impossible integration
Only 200mm deep allow air conditioning through channels where it was previously architecturally impossible. Completely hidden unit with homogeneous air distribution.
A️ Perfect air conditioning
Uniform distribution in spaces of 20-25 m2 by multiple impulsion points, eliminating dead areas and ensuring total comfort in ultra-compact format.
Silence Ultra-Compact
Only 24-27 dB(A) - the most silent operation of the series. Total physical separation between unit and inhabited space ensures absolute acoustic comfort.
Revolutionary Installation
Port facing down completely eliminates the auxiliary pipes. Floor or wall installation with minimal intervention and maximum architectural flexibility.
Efficiency A+/A+ Compact
SEER 6,10 and SCOP 4,60 in ultra-compact format. Refrigerant Gas Ecological R-32 with only 0,69kg load guarantees maximum environmental respect and minimum consumption.
Te Intelligent Control WiFi
Optional management from smartphone, tablet or PC via ES.DKNWSERVER. Total temperature control, programming and diagnosis from any location.
SERIE SKY AIR ADVANCE
NAS25A - The Ultra-Compact Election: When each millimeter counts, the NAS25A offers the ultimate solution with only 750mm wide and 200mm depth, maintaining maximum A+/A+ efficiency and professional performance Daikin.
DAIKIN NAS25A - ULTRA-COMPACTO DEFINITIVE
200mm × 750mm Δ2600W power Δ A+/A+ maximum efficiency Δ WiFi optional
The most compact air conditioning of the market - where nothing else fits
CLAVE TECHNICAL SPECIFICATIONS
√ RECOMMENDATION
- Cold capacity: 2600W
- Capacity Heat: 3200W
- SEER/SCOP: 6,10 / 4,60
- Application: 20-25 m2
DIMENSIONS
- IU: 750×300×200 mm (15kg)
- EU: 658×550×275 mm (26kg)
- Depth: Just 200mm
- Total weight: 41 kg
INSTALATION
- Amount: Floor or Pared
- Connections: Ø6,4" - Ø9,5"
- Max pipe: 25m
- Port: Downwards
ECOLOGIC
- Refrigerant Gas: R-32 Ecological
- Charge: Only 0.69 kg
- Efficiency A+/A+
- Control: Optional WiFi
WHERE'S THE DAIKIN NAS25A?
▷ THE MOST COMPACT
Only 200mm deep - installation where it is impossible for other systems
▷ MÁXIMA EFICIENCIA
A+/A+ with SEER 6,10 - superior energy saving in compact format
▷ INSTALATION SIMPLE
Port down - no auxiliary pipes, revolutionary installation
▷ TECHNOLOGY DAIKIN
Guarantee and reliability of the world's leading brand in air conditioning
🎯 The ultimate solution for ultra-limited spaces where each centimeter counts
NAS25A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FNA25A9
- Outdoor Unit
- RXM25R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 2.600
- Refrigerator capacity (kcal / h)
- 2.236
- Nominal consumption Cold (W)
- 680
- Energy class (cold)
- A+
- SEER
- 5,7
- Heat capacity (W)
- 3.200
- Heat capacity (Kcal / h)
- 2.752
- Nominal heat consumption (W)
- 800
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 23,0
- Weight Outdoor Unit (Kg)
- 32,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 20m2 aprox.
- Dimensions UI (ANXFXH) mm
- 750 x 200 x 620
- EU dimensions (anxfxh) mm
- 840 x 350 x 552
