Air Conditioning Mitsubishi Electric MSPEZ-140VJA
Refrigeration 13400W 日本語 Heating 15000W ̄s Efficiency A Δ R-32 Δ Standard series

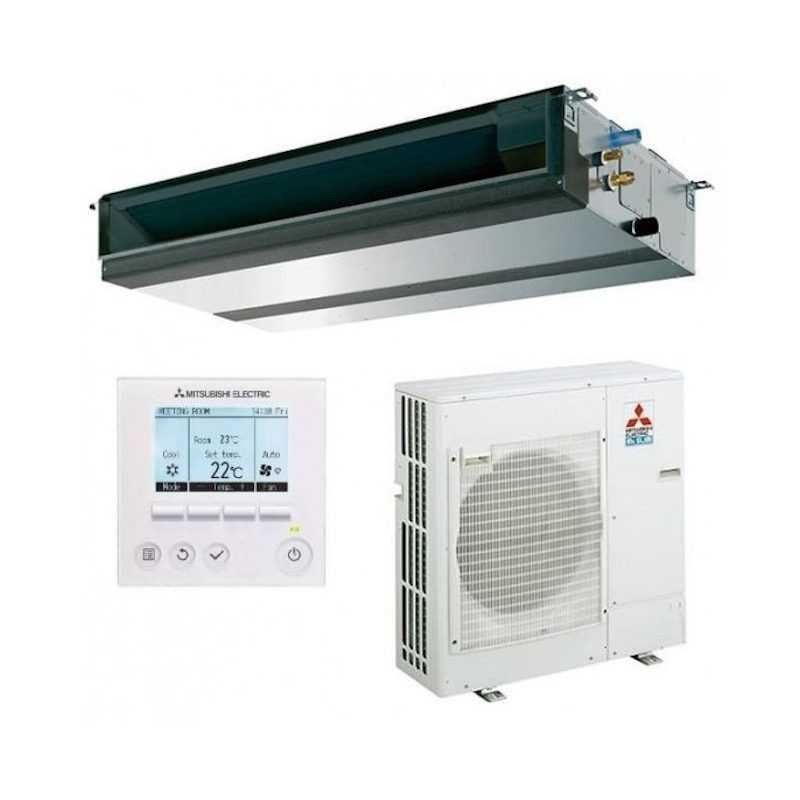

The Air Conditioning Mitsubishi Electric MSPEZ-140VJA is the absolute maximum power solution of the Standard Inverter series with 13400W in cooling and 15000W heating. With indoor Unit only 250mm high, this system of occult ducts offers extreme and discrete air conditioning for industrial spaces that require maximum monophasic energy performance available.
13️ 13400W Refrigeration
EER 2,81 - Maximum Power
15000W Heating
COP 3.61 - Extreme
▪ SEER 5.2 / SCOP 3,8
Efficiency A/A
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M140JA
Outdoor Unit: PUZ-M140VKA
Air flow: 32,0-46,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 34 dBA
Annual consumption: 895 kWh/year
Refrigerant Gas: R-32 (3.60 kg)
PAR-41MAA Command: Advanced control
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MSPEZ-140VJA Standard Inverter Single-Phase Ducted
Referencia: MSPEZ-140VJA
€4,635.99
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MSPEZ-140VJA
Refrigeration 13400W 日本語 Heating 15000W ̄s Efficiency A Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-140VJA is the absolute maximum power solution of the Standard Inverter series with 13400W in cooling and 15000W heating. With indoor Unit only 250mm high, this system of occult ducts offers extreme and discrete air conditioning for industrial spaces that require maximum monophasic energy performance available.
13️ 13400W Refrigeration
EER 2,81 - Maximum Power
15000W Heating
COP 3.61 - Extreme
▪ SEER 5.2 / SCOP 3,8
Efficiency A/A
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M140JA
Outdoor Unit: PUZ-M140VKA
Air flow: 32,0-46,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 34 dBA
Annual consumption: 895 kWh/year
Refrigerant Gas: R-32 (3.60 kg)
PAR-41MAA Command: Advanced control
Security policy
Delivery policy
Refund policy
Mitsubishi Electric MSPEZ-140VJA
Ducted Air Conditioner 13400W Standard Inverter Monophase series
A Maximum Absolute Power Standard Series
The MSPEZ-140VJA represents the maximum absolute power of the Standard Series with advanced monophasic Inverter technology. With 13400W in cooling and 15000W heating, provides extreme air conditioning for large industrial and commercial spaces. Your rating SEER 5.2 A maintains efficiency 895 kWh/year, ideal for surfaces of 110-170m2.
Tecnología Technology R32 Maximum Power
Equipped with refrigerant R32, optimizes efficiency in absolute power applications. The load 3,60 kg is dimensioned for this extreme power, ensuring sustainable operation in the most demanding applications. Its ecological design meets the most advanced European ErP standards for high-power equipment.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 13400W
- • Operation Range: 6,1-14,1 kW
- • EER: 2,81 (Maximum Power)
- • SEER: 5.2 A (Efficient)
- • Consumption: 4.76 kW nominal
Performance Heating
- • Nominal power: 15000W
- • Operation Range: 4.2-15.8 kW
- • COP: 3.61 (Excellent)
- • SCOP: 3.8 A (High Efficiency)
- • Consumption: 4,15 kW nominal
S Technical characteristics
- • Indoor Unit: PEAD-M140JA
- • Outdoor Unit: PUZ-M140VKA
- • Dimensions: 250x1600x732mm
- • Interior weight: 42.0 kg
- • Tuberia: Ø9,52/15,88mm
Y️ Control and Functionality
- • PAR-41MAA Command: Advanced control
- • Air flow: 32,0-46,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 34-43 dBA
- • Food: 230V/1~ 32.8A
▼ Maximum Power Annual Consumption
895 kWh/year cooling ⋅ 3399 kWh/year heating
Maximum absolute power optimized with Inverter Standard Monophasic Series technology
Installation and Dimensions Standard Series Maximum Power

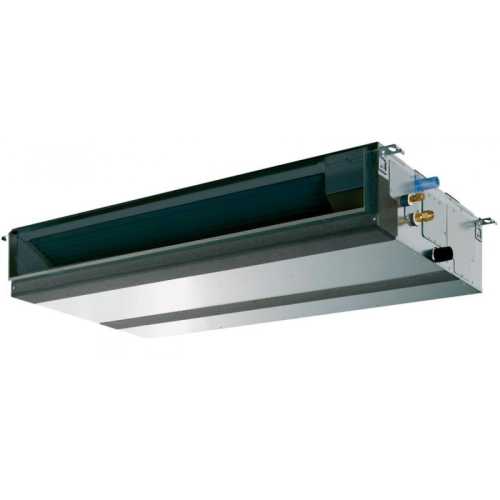

📐 Indoor Unit PEAD-M140JA
- • Dimensions: 250 x 1600 x 732 mm
- • Compact height: Only 250mm
- • Weight: 42,0 kg (maximum power)
- • Air flow: 32,0-39,0-46,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 34-38-43 dBA

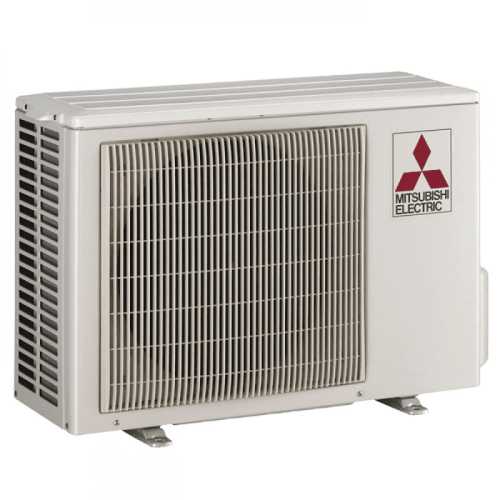

🏢 Outdoor Unit PUZ-M140VKA
- • Dimensions: 981 x 1050 x 330 mm (+40)
- • Weight: 84 kg (sturdy excess)
- • Air flow: 86 m3/min
- • Sound level: 55 dBA
- • Food: 230V/1~ - 32.8A
- • Operation range: -15°C to +46°C

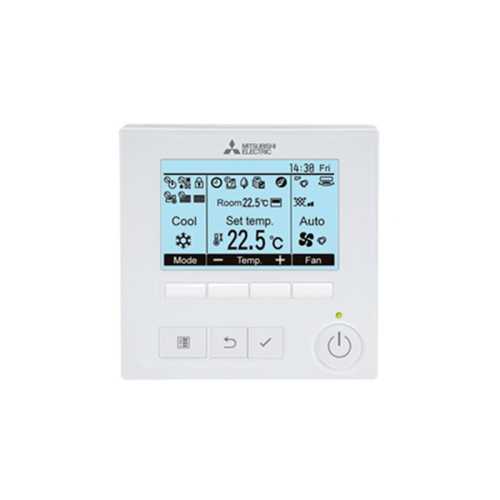

️ Control PAR-41MAA Maximum Power
Includes command PAR-41MAA with comprehensive control of the system of maximum absolute power. Full weekly programming, precision temperature control, intelligent automatic modes and extreme energy monitoring. Compatible with industrial automation systems and optional WiFi control for maximum control.
Featured functions: Programming 7 days, Multizone control, Automatic echo mode, Extreme diagnosis
Con Extreme Connectivity
System prepared for advanced extreme integration. Optional WiFi connection MAC-587IF for full remote control by smartphone. Interface M-NET for integration with centralized energy management systems and high-power intelligent buildings.
Available options: Smart WiFi, centralized M-NET, External signals, Remote temperature sensor
Y️ Installation and Extreme Maintenance
Requirements Installation
- • Tuberia: Ø9,52/15,88mm
- • Max length: 65m total / 30m vertical
- • Electrical connection: 230V/1~ monophasic
- • Max intensity. : 32.8A
S️ Included Protections
- • Condensing control: Incorporated
- • Dehydrator filter: Standard series
- • Overload protection: Automatic
- • Self-diagnosis: Complete system
Gos️ Rangos Operation
- • Refrigeration: -15°C to +46°C ext.
- • Heating: -15°C to +21°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Y Warranty and Certifications
Warranty Mitsubishi Electric 日本語 CE Certification Cumple ErP 2021
Japanese quality with specialized technical support and national extreme service network
El Maximum Absolute Power with MSPEZ-140VJA
Extreme air conditioning of 13400W with efficiency A and advanced control PAR-41MAA
️
SEER 5.2 A
Extreme 895 kWh/year
🔥
COP 3.61
Extreme 15000W heating
🔇
34 dBA Controlled
Silence for maximum power
▪
230V Monof Classic
Standard installation
️ Control PAR-41MAA Include + R32 Ecological
Advanced command with weekly programming • Refrigerant Gas R32 reduced environmental impact • Japanese Inverter technology • Installation occult ducts • Spaces 110-170m2
▷ Includes in the Price
- • Indoor Unit PEAD-M140JA
- • Outdoor Unit PUZ-M140VKA
- • PAR-41MAA
- • Basic installation kit
S Unique benefits
- • Warranty Mitsubishi Electric
- • Professional installation available
- • Specialized technical support
- • Certified efficiency
▪ Maximum Absolute Power Available!
MSPEZ-140VJA with Inverter technology and efficiency A - Extreme Standard Series
🎯 Spaces: 110-170m2
▪ Consumption: 895 kWh/year
🌿 Gas: R32 Ecological
📱 Control: PAR-41MAA
🏆 Mitsubishi Electric Standard MSPEZ-140VJA series
Extreme air conditioning with Japanese technology • Advanced control PAR-41MAA included • Professional installation available
MSPEZ-140VJA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-M140JA
- Outdoor Unit
- PUZ-M140VKA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 4.760
- Energy class (cold)
- TO
- SEER
- 5,2
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 4.150
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 34
- Weight Indoor Unit (Kg)
- 42,0
- Weight Outdoor Unit (Kg)
- 84,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 110m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1600 x 732 x 250
- EU dimensions (anxfxh) mm
- 1050 x 330 x 981
