Ducted Air Conditioner LG UM60F CONFORT+ UM60F.N21 + UUD1.U30
Air conditioning system with 14.6 kW of nominal capacity, designed for large commercial and industrial spaces. This team of the CONFORT+ range combines maximum performance with A+/A energy efficiency and advanced control technology, ideal for shopping centers, large offices, industrial ships and spaces that require high-level air conditioning.
- ▷ Nominal power of 14,6 kW in cold and 16.8 kW in heat for large spaces
- ▷ Modulant capacity of 5,80-15,77 kW cold and 6,70-18,14 kW heat
- ▷ Energy efficiency A+/A with SEER 5,60 and SCOP 4,00
- ▷ Static pressure up to 147 Pa for large complex installations
- ▷ Maximum pipe length up to 85 meters for maximum flexibility
- ▷ Refrigerant Gas eco-friendly R32 and capacitors pump included
Reference: UM60F.N21 + UUD1.U30
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG UM60F CONFORT+ UM60F.N21 + UUD1.U30
Referencia: KITCONDCM60F_CONFORT+
€4,061.04
Tax included
Envío GRATIS en España (Península) a partir de 300€ + info
We do not have stock at this time.
Ask us about availability!!
Ducted Air Conditioner LG UM60F CONFORT+ UM60F.N21 + UUD1.U30
Air conditioning system with 14.6 kW of nominal capacity, designed for large commercial and industrial spaces. This team of the CONFORT+ range combines maximum performance with A+/A energy efficiency and advanced control technology, ideal for shopping centers, large offices, industrial ships and spaces that require high-level air conditioning.
- ▷ Nominal power of 14,6 kW in cold and 16.8 kW in heat for large spaces
- ▷ Modulant capacity of 5,80-15,77 kW cold and 6,70-18,14 kW heat
- ▷ Energy efficiency A+/A with SEER 5,60 and SCOP 4,00
- ▷ Static pressure up to 147 Pa for large complex installations
- ▷ Maximum pipe length up to 85 meters for maximum flexibility
- ▷ Refrigerant Gas eco-friendly R32 and capacitors pump included
Reference: UM60F.N21 + UUD1.U30
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG UM60F CONFORT+ represents the hub of commercial and industrial air conditioning, designed to provide superior comfort in large spaces that require high power and maximum reliability. This team from the Free Combination CONFORT+ range LG it combines a nominal power of 14,6 kW in cold and 16.8 kW in heat with an exceptional modulant capacity ranging from 5,80 to 15,77 kW in cooling and from 6,70 to 18,14 kW in heating.

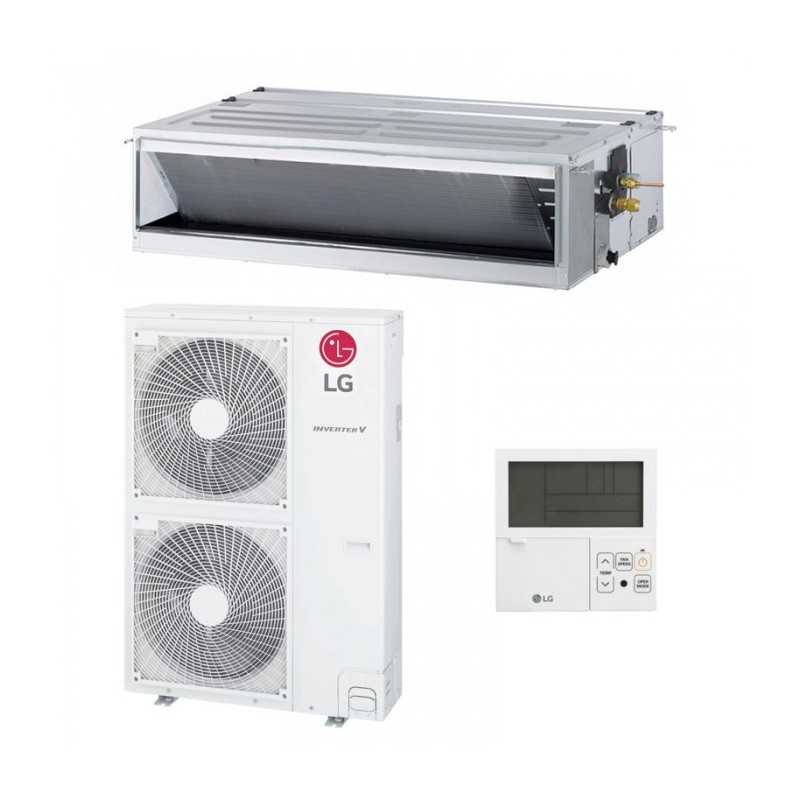

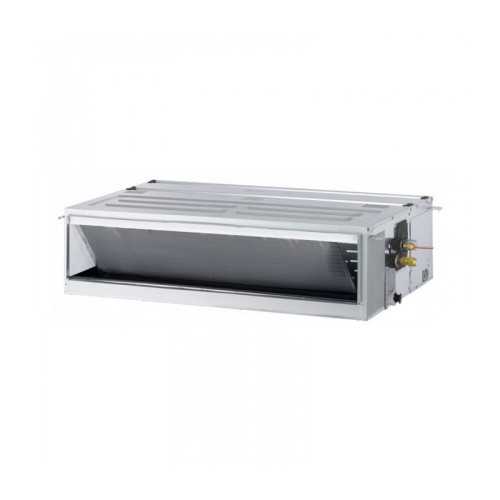

Composed of indoor Unit UM60F.N21 and the outdoor Unit UUD1.U30, this system stands out for its ability to handle large-scale installations with pipe lengths up to 85 meters and static pressure up to 147 Pa. La indoor Unit, with dimensions of 1,250 x 360 x 700 mm, has been specifically designed for horizontal installation in large commercial spaces, providing an airflow of up to 50 m3/min with controlled sound levels of 42/40/39 dB according to the selected speed.

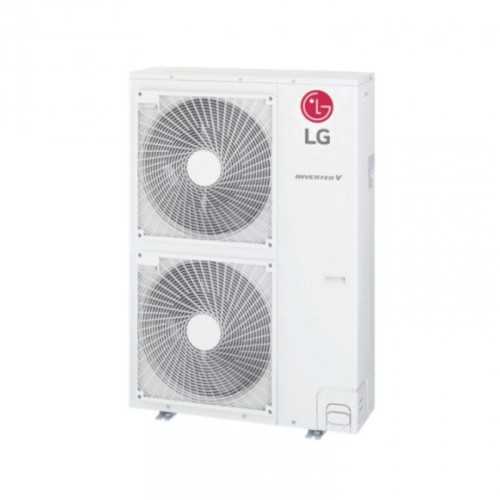

La outdoor Unit UUD1.U30, with its 950 x 1.380 x 330 mm dimensions, incorporates dual fan technology (55 x 2 m3/min) to maximize thermal exchange and ensure optimal performance even in extreme environmental conditions. With a range of operation ranging from -20°C to 52°C in cooling and from -25°C to 18°C in heating, this system uses 3.0 kg of R32 ecological coolant, demonstrating the commitment to LG with environmental sustainability without compromising performance.
Main features
🏭
Maximum Power
Rated power of 14,6 kW in cold and 16.8 kW in heat, with advanced modulation from 5,80-15,77 kW in cooling and 6,70-18,14 kW in heating.
📏
Facilities of Great Scope
Maximum length of pipe up to 85 meters with a height of 30 meters, ideal for multi-storey buildings and large surfaces.
️
Operation Extended Range
It works efficiently from -20°C to 52°C in cooling and from -25°C to 18°C in heating.
🔧
Elevada Static Pressure
Up to 147 Maximum static pressure pa to overcome resistances in complex and long ducts.
️
Double External Fan
Double fan system (55 x 2 m3/min) which guarantees maximum thermal exchange and efficiency in all conditions.
🌱
Sustainable technology
Refrigerant Gas Ecological R32 with 3.0 kg load, combining high performance with environmental responsibility.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | UM60F.N21 + UUD1.U30 |
| Cold Capacity (Mín-Nom-Máx) | 5,80 - 14,60 - 15,77 kW |
| Heat capacity (Mín-Nom-Máx) | 6,70 - 16,80 - 18,14 kW |
| EER / COP | 2,95 / 3,65 |
| SEER / SCOP | 5,60 / 4,00 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 1.250 x 360 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 1.380 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 42 / 40 / 39 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 54 / 54 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 50 / 45 / 40 m3/min |
| Air flow rate Outdoor Unit | 55 x 2 m3/min |
| Static Pressure (Standard/Maximum) | 39 / 147 Pa |
| Refrigerant Gas / Charge | R32 / 3.0 kg |
| Length Tuberia (Min/Máx) | 5 / 85 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 41.8 kg |
| Weight Outdoor Unit | 89 kg |
Air Conditioning Benefits LG UM60F CONFORT+
✓
Professional solution for large spaces
With 14.6 kW of rated power, it is perfect for shopping malls, large offices, industrial warehouses, hotels, and commercial spaces that require high-performance and reliable air conditioning.
✓
Maximum installation flexibility
With pipe lengths up to 85 meters and high static pressure, it allows airing multi-storey buildings and complex architectural configurations.
✓
Large-scale energy efficiency
Advanced modulation technology and A+/A classification ensure optimized energy consumption even in large-scale installations, significantly reducing operating costs.
✓
Operation in extreme conditions
Its wide range of operation allows efficient operation from -25°C to 52°C, ensuring comfort throughout the year regardless of the weather conditions.
Why choose Air Conditioning LG UM60F COMFORT+?
Main applications
🏢
Shopping Centres
Large surfaces, department stores and commercial spaces that require strong and reliable air conditioning.
🏭
Industrial ships
Industrial facilities, warehouses and production spaces that need high-performance climate control.
🏨
Hotels and Hospitals
Large service buildings that require constant and efficient air conditioning in multiple areas and plants.
Installation Information
Important considerations:
- La indoor Unit UM60F.N21 is designed exclusively for horizontal installation.
- Maximum length of pipe: 85 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 50 g/m for upper lengths.
- Frigorific connections: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8") in both units.
- La outdoor Unit UUD1.U30 requires adequate space due to its dimensions (950 x 1.380 x 330 mm) and weight (89 kg).
- External double fan system that requires free ventilation on both sides for optimal operation.
- Installation by technical staff specialized in commercial systems and authorized by LG to ensure proper functioning and maintain the validity of the warranty.
The ultimate solution for large spaces that require excellence!
Air Conditioning by Conduct LG UM60F CONFORT+ represents the hub of commercial and industrial air conditioning. Invests in cutting-edge technology, maximum performance and energy efficiency with premium quality assurance LG for your big project.
Request your custom budget today!
KITCONDCM60F_CONFORT+
Data sheet
- Brand
- LG
- Indoor Unit
- UM60F.N31
- Outdoor Unit
- UUD1.U30
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Fridge capacity (W)
- 14.600
- Fridge capacity (Kcal/h)
- 12.556
- Nominal consumption Cold (W)
- 4.950
- SEER
- 5,6
- Heating Capacity (W)
- 16.800
- Heating capacity (Kcal/h)
- 14.448
- Nominal heat consumption (W)
- 4.600
- SCOP
- 4,0
- Minimum sound pressure UI dB
- 39
- Weight Indoor Unit (Kg)
- 41,8
- Weight Outdoor Unit (Kg)
- 89,0
- Diameter Liquid Tubery
- 3/8"
- Diameter Gas Tuberia
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended surface
- Estancia de 120m2 aprox.
- IU dimensions (AnxFxH) mm
- 1250 x 700 x 360
- EU dimensions (AnxFxH) mm
- 950 x 330 x 1380
