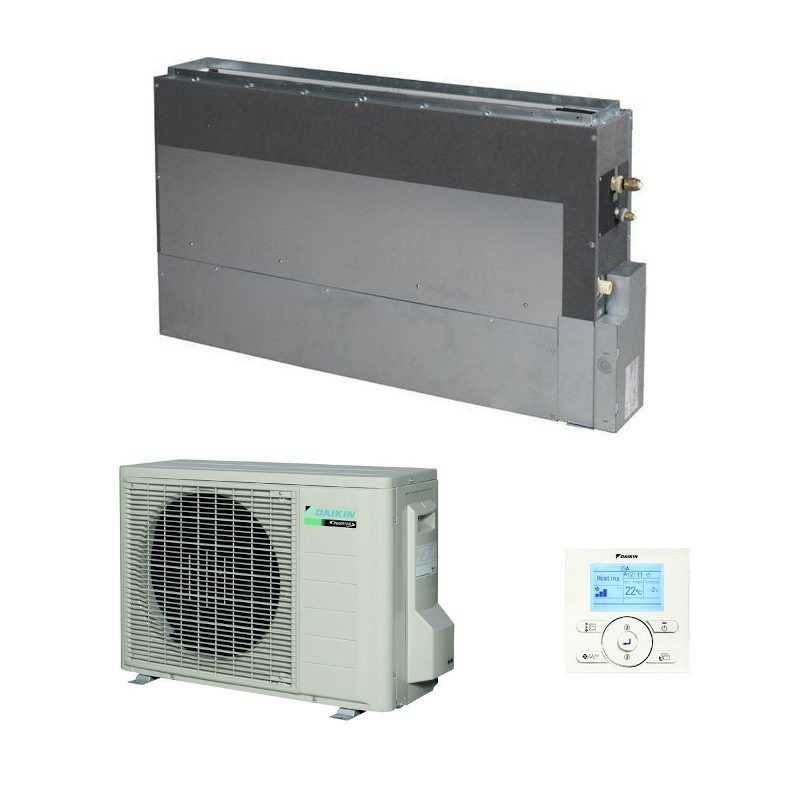

Ducted Air Conditioner Soil Daikin NAS60A
SKY AIR Series Advance Δ R-32 Δ 6000W Cold Only 200mm Depth Δ SEER 5,56 Δ A+/A
The Air Conditioning by Soil Behaviors Daikin NAS60A of the prestigious Sky Air Advance Series represents the innovative solution for floor or wall installation with state-of-the-art R-32 coolant. Its exceptional capacity of 6000W in cooling and 7000W in heating, combined with a revolutionary design of only 200 mm deep, makes it the perfect choice for residential applications, shops, offices and hotels where space is limited. With energy rating A+/A (SEER 5,56 / SCOP 4,16), static pressure up to 49Pa and optional WiFi control, guarantees maximum efficiency and installation flexibility in spaces with architectural restrictions.
️ 6000W Cold
7000W heat / R-32 advanced
Just 200mm
Minimum revolutionary depth
Pressure 49Pa
16 m3/min airflow
▪ SEER 5,56
A+/A higher efficiency
Product Specifications Advance Series
Cold capacity: 6000W
Heat capacity: 7000W
Cold consumption: 2220W
Consumption heat: 2250W
Air flow: 16 m3/min
Dimensions: 620×1150×200mm
Refrigerant Gas: R-32 (1.45 kg)
Max pipe: 30 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Vertical Conduct Daikin NAS60A SKY AIR SERIE ADVANCE
Referencia: NAS60A
€2,486.83
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Soil Daikin NAS60A
SKY AIR Series Advance Δ R-32 Δ 6000W Cold Only 200mm Depth Δ SEER 5,56 Δ A+/A
The Air Conditioning by Soil Behaviors Daikin NAS60A of the prestigious Sky Air Advance Series represents the innovative solution for floor or wall installation with state-of-the-art R-32 coolant. Its exceptional capacity of 6000W in cooling and 7000W in heating, combined with a revolutionary design of only 200 mm deep, makes it the perfect choice for residential applications, shops, offices and hotels where space is limited. With energy rating A+/A (SEER 5,56 / SCOP 4,16), static pressure up to 49Pa and optional WiFi control, guarantees maximum efficiency and installation flexibility in spaces with architectural restrictions.
️ 6000W Cold
7000W heat / R-32 advanced
Just 200mm
Minimum revolutionary depth
Pressure 49Pa
16 m3/min airflow
▪ SEER 5,56
A+/A higher efficiency
Product Specifications Advance Series
Cold capacity: 6000W
Heat capacity: 7000W
Cold consumption: 2220W
Consumption heat: 2250W
Air flow: 16 m3/min
Dimensions: 620×1150×200mm
Refrigerant Gas: R-32 (1.45 kg)
Max pipe: 30 meters
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Soil Behaviors Daikin NAS60A represents the most advanced innovation of the prestigious Sky Air Advance Series, designed specifically for floor or wall installation where space is a critical factor. With a nominal capacity of 6000W in refrigeration (5160 kcal/h) and 7000W in heating (6020 kcal/h), this system incorporates the revolutionary R-32 coolant technology that guarantees maximum energy efficiency and environmental sustainability, maintaining an A+/A energy rating with SEER 5,56 and SCOP 4,16, ideal for residential applications compatible with domestic units, shops, offices or hotels that demand installation flexibility.
Its revolutionary design of only 200 mm deep with dimensions of 620×1150×200 mm and weight of 30 kg, represents a milestone in the air conditioning industry, allowing installation in spaces where it was traditionally impossible to place duct equipment. The high external static pressure (ESP) up to 49Pa allows flexible installation with ducts to the ceiling, while the down-oriented connecting port eliminates the need to connect auxiliary pipes, significantly simplifying the installation.
The system operates with airflows of 16 m3/min in both refrigeration and heating, providing efficient and homogeneous air conditioning. Its silent operation and optional WiFi technology compatibility using the ES.DKNWSERVER adapter allows remote control from smartphone, computer or tablet from any location, representing the highest evolution in intelligent control of residential and light commercial air conditioning.
La outdoor Unit RXM60N9 with SWING compressor incorporates 1.45 kg R-32 coolant load (TCO2 eq 0.98 / PCA 675), dimensions of 734×940×320 mm and weight of 47 kg, with operating limits extended to -15oC both in cooling and in heating. The system allows installations with maximum pipe length of 30 meters and height of up to 20 meters, with frigorphic connections of Ø6,4" (1/4") liquid and Ø12,7" (1/2") gas, monophasic power 220V with 3+T interconnection threads, ensuring maximum installation flexibility in residential and light commercial applications.
Features Sky Air Advance Series
📐
Revolutionary 200mm Depth
Only 200 mm deep, a milestone in the industry that allows installation in spaces where it was traditionally impossible to place duct equipment.
▪
Installation Floor or Pared
Designed for flexible installation on floor or wall, ideal for residential applications compatible with household units, shops and offices.
💨
High Statistical Pressure 49Pa
External static pressure up to 49Pa allows flexible installation with ducts to the ceiling, ideal for complex configurations.
📱
Optional WiFi control
Smart control from smartphone, computer or tablet with ES.DKNWSERVER adapter, representing the maximum evolution in domotics.
🌿
R-32 Advanced
R-32 technology with load of 1.45 kg guarantees maximum energy efficiency and environmental sustainability in residential applications.
🔧
Simplified installation
Downward-oriented connection port eliminates auxiliary pipes, significantly simplifying the installation.
Technical Specifications Advance Series
| Feature | Value |
|---|---|
| Model Set | NAS60A (Sky Air Advance Series) |
| Refrigeration capacity | 6000W (5160 kcal/h) |
| Capacity Heating | 7000W (6020 kcal/h) |
| Consumption Refrigeration | 2220W |
| Consumption Heating | 2250W |
| SEER / SCOP | 5,56 / 4,16 |
| Energy label ( Cold/Calor) | A+ / A |
| Charge Design Refrigeration | 6,00 kW |
| Charge Design Heating (-10oC) | 4,60 kW |
| Consumption Energy Annual Refrigeration | 378 kWh |
| Consumption Annual Energy Heating | 1547 kWh |
| Frigorific connections | Liquid Ø6,4" (1/4") - Gas Ø12.7" (1/2") |
| Electrical supply | Monof Classic 220V |
| No Hilos Interconnection | 3 + T |
| Maximum Length Tuberia | 30 meters |
| Maximum level | 20 meters |
| Refrigerant Gas / Charge | R-32 / 1.45 kg (TCO2 eq 0.98 / PCA 675) |

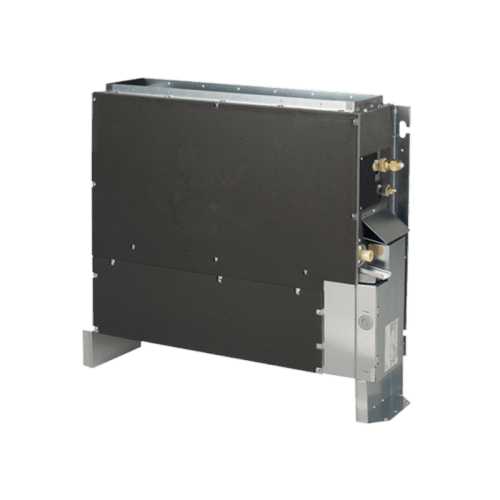

Specifications Indoor Unit FNA60A9
| Feature | Value |
|---|---|
| Air flow rate (A/B) | 16,0 / 13,5 m3/min |
| High/Nominal Available Pressure | 49 / 40 Pa |
| Dimensions (Alto×Ancho×Fondo) | 620×1150×200 mm |
| Weight | 30 kg |
| Revolutionary Depth | Only 200 mm |
| Installation type | Floor or Pared |
| Connection port | Focus down |
| Control WiFi | Optional with ES.DKNWSERVER |

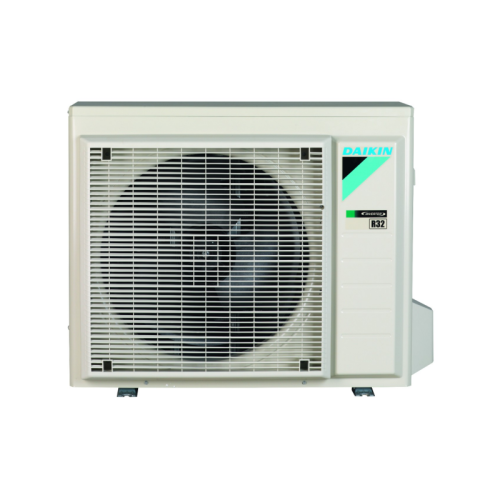

Specifications Outdoor Unit RXM60N9
| Feature | Value |
|---|---|
| Type of Compressor | SWING |
| Dimensions (Alto×Ancho×Fondo) | 734×940×320 mm |
| Weight | 47 kg |
| Sound pressure Refrigeration (A/B) | 49 / 46 dB(A) |
| Sound pressure Heating | 49 / 46 dB(A) |
| Level Acoustic Power | 63 dB(A) |
| Charge Refrigerant Gas | 10 meters |
| Additional charge | 20 gr/m |
| Limits Functioning | -15oC cooling and heating |
Advantages Sky Air Advance Series
✓
Revolution in duct installation
Only 200 mm deep allows installation where it was traditionally impossible, revolutionizing the possibilities of air conditioning through channels in limited spaces.
✓
Residential and commercial support
Compatible with domestic units, ideal for residential applications, shops, offices or hotels that require installation flexibility.
✓
Smart control WiFi
Control from smartphone, computer or tablet with optional ES.DKNWSERVER adapter, representing the maximum evolution in domotic air conditioning.
✓
Premium simplified installation
Downward-oriented connection port eliminates auxiliary pipes, facilitating installation on floor or wall with maximum simplicity.
✓
Energy efficiency A+/A
SEER 5,56 and SCOP 4,16 with A+/A classification guarantee maximum energy savings and environmental sustainability in residential and light commercial applications.
✓
Extended operation up to -15oC
Operating limits up to -15oC in both cooling and heating, ensuring reliable operation in extreme weather conditions.
Main applications
▪
Residential applications
Single-family homes, apartments, penthouses and residential applications compatible with domestic units where space is limited.
🏪
Shops and Trades
Small and medium stores, boutiques, commercial spaces with space limitations that require discreet and efficient air conditioning.
🏢
Offices and Hotels
Small and medium offices, professional offices, hotel rooms and corporate spaces with architectural restrictions.
Advantages of Soil Behavior Systems
✓
Flexibility of revolutionary installation
Installation on floor or wall with only 200 mm depth allows air conditioning through ducts in spaces where it was traditionally impossible.
✓
Maximum use of space
Take advantage of minimal spaces that cannot be used by conventional systems, maximizing the use of available space.
✓
Compatibility with domestic systems
Compatible with domestic interior units, allowing perfect integration into existing or new residential facilities.
✓
Simplified installation
Low-facing port and compact design significantly simplify installation and reduce labor costs.
Climate Change: Only 200mm Depth!
The Daikin NAS60A Sky Air Advance Series revolutionizes duct air conditioning with only 200 mm depth, 6000W capacity, R-32 technology, optional WiFi control and residential compatibility. The definitive solution for spaces where space is critical without compromising A+/A power or efficiency.
Request your budget for space-restricted applications!
▪ DAIKIN NAS60A SKY AIR ADVANCE ⋅
6000W + SOLO 200mm + WIFI + A+/A
Revolution 200mm
Only 200mm depth
Installation where it was impossible
Suelo or Pared
Total flexible installation
Compatible domestic units
Control WiFi
Smartphone, tablet, PC
Optional ES.DKNWSERVER adapter
▪ SEER 5,56 A+/A
Maximum efficiency
6000W with minimum consumption
▪ Residential + commercial
🌿 Organic R-32 1.45kg
️ Up to -15oC operation
💨 49Pass static pressure
📏 30m pipe + 20m
🔧 Port facing down
SERIE ADVANCE REVOLUTION 200MM
6000W with only 200mm depth + WiFi control + A+/A efficiency
Perfect for homes, shops, offices and hotels with space limitations
▷ SPECIALIZED INSTRUMENTS
️ Warranty Daikin Officer
🔧 National Technical Service
📋 Certification A+/A
▪ Residential applications
NAS60A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FNA60A9
- Outdoor Unit
- RXM60R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.000
- Refrigerator capacity (kcal / h)
- 5.160
- Nominal consumption Cold (W)
- 2.220
- Energy class (cold)
- TO
- SEER
- 5,6
- Heat capacity (W)
- 7.000
- Heat capacity (Kcal / h)
- 6.020
- Nominal heat consumption (W)
- 2.250
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 30,0
- Weight Outdoor Unit (Kg)
- 49,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 45m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1150 x 200 x 620
- EU dimensions (anxfxh) mm
- 954 x 401 x 734
