The Giatsu GIAC400IX49BDT3 dominates extreme industrial spaces with a colossal power 40kW (136500 BTU) designed for mega-complete that requires massive air conditioning. With technology compressor DC Inverter and configuration 380-415V, guarantees superior performance mass industrial centres, production plants and logistical complexes up to 650 m2 with continuous operation 24/7.
40kW COLOSAL
136500 Extreme BTU
7600 m3/h
Massive
DC INVERTER
Advanced technology
Up to 650 m2
Megacomplete
Main Technical Specifications
Power: 40kW / 136500 BTU
Caudal: 7600 m3/h
Food: 380-415V
Technology: DC Inverter
Application: Industrial Megacomplete
Installation: Conduct
Reference: GIAC400IX49BDT3 Δ Giatsu BIG DUCT IX49B Industrial Complex
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

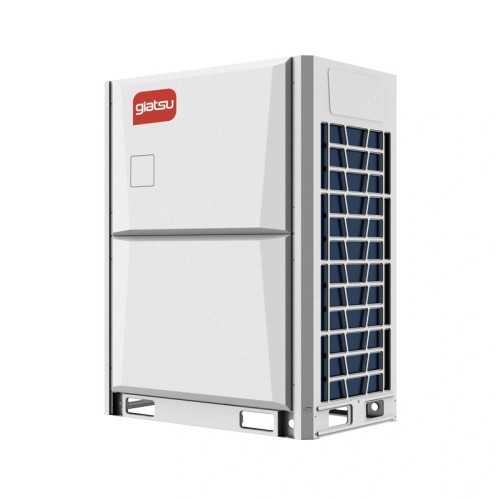

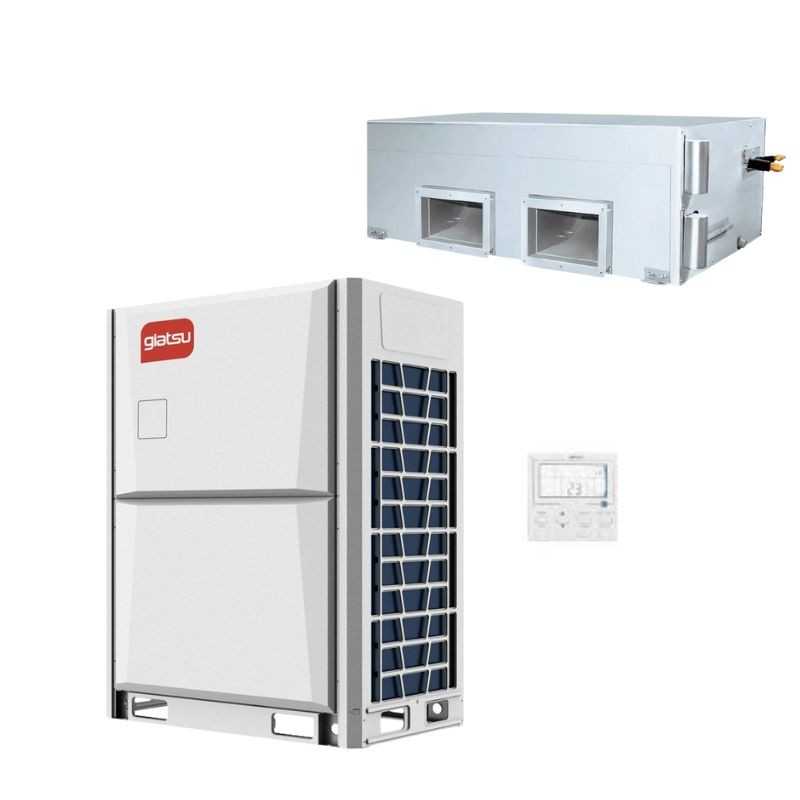

Ducted Air Conditioner Giatsu GIAC400IX49BDT3 Big Duct
Referencia: GIAC400IX49BDT3
€7,248.42
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The Giatsu GIAC400IX49BDT3 dominates extreme industrial spaces with a colossal power 40kW (136500 BTU) designed for mega-complete that requires massive air conditioning. With technology compressor DC Inverter and configuration 380-415V, guarantees superior performance mass industrial centres, production plants and logistical complexes up to 650 m2 with continuous operation 24/7.
40kW COLOSAL
136500 Extreme BTU
7600 m3/h
Massive
DC INVERTER
Advanced technology
Up to 650 m2
Megacomplete
Main Technical Specifications
Power: 40kW / 136500 BTU
Caudal: 7600 m3/h
Food: 380-415V
Technology: DC Inverter
Application: Industrial Megacomplete
Installation: Conduct
Reference: GIAC400IX49BDT3 Δ Giatsu BIG DUCT IX49B Industrial Complex
Security policy
Delivery policy
Refund policy
SUPERIOR INDUSTRIAL
GIATSU GIAC400IX49BDT3
Big Duct - High Power Industrial Airconditioning
40 kW
Frigorific power
5800 m3/h
Air flow rate
800 m2
Maximum coverage
Main features
▪ SUPERIORITY
40 kW Refrigeration
Refrigeration capacity of 40,000W for high volume industrial spaces and maximum thermal demand.
️ MASSIVE CAUDAL
5800 m3/h Air
Massive air flow that guarantees uniform distribution in industrial vessels up to 800 m2.
️ CONDUCTS
Hidden Installation
System of tubes for installation hidden in false ceiling, keeping the aesthetic of space.
🎛️ ADVANCED CONTROL
Inverter Premium
State-of-the-art inverter technology with precise temperature control and maximum energy efficiency.
📋 Technical Specifications GIAC400IX49BDT3
⚡ PERFORMANCE
• Cooling Capacity: 40,000W (40 kW)
• Heating Power: 45,000W (45 kW)
• Consumption Cold: 12,500W
• Heat Consumption: 11,800W
• EER: 3.20
• COP: 3.81
• Heating Power: 45,000W (45 kW)
• Consumption Cold: 12,500W
• Heat Consumption: 11,800W
• EER: 3.20
• COP: 3.81
🌪️ FLOW AND PRESSURE
• Air Flow: 5800 m3/h
• Static pressure: 150 Pa
• Speed: 3 speeds
• Control: Inverter variable
• UI Sound Level: 52 dB(A)
• EU sound level: 65 dB(A)
• Static pressure: 150 Pa
• Speed: 3 speeds
• Control: Inverter variable
• UI Sound Level: 52 dB(A)
• EU sound level: 65 dB(A)
️ REFRIGERANT
• Type: R410A
• Loading: 6.8 kg
• Connections: 1/2" + 7/8"
• Maximum length: 50 m
• Maximum level: 30 m
• Preload: 15 m
• Loading: 6.8 kg
• Connections: 1/2" + 7/8"
• Maximum length: 50 m
• Maximum level: 30 m
• Preload: 15 m
DIMENSIONS

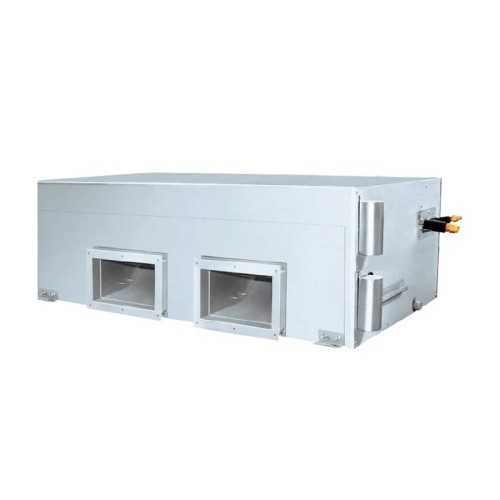

• Indoor Unit:
- High: 320 mm
- Width: 1200 mm
- Fund: 850 mm
• UI weight: 68 kg
• EU Weight: 145 kg
- High: 320 mm
- Width: 1200 mm
- Fund: 850 mm
• UI weight: 68 kg
• EU Weight: 145 kg
S Specific Industrial Applications
🏬
Great Surfaces
Shopping centers, hypermarkets, showrooms
🏭
Industrial ships
Warehouses, logistics centres, factories
🏢
Corporate offices
Office buildings, business headquarters
🏥
Health Centres
Hospitals, clinics, medical centers
🎓
Educational centres
Universities, colleges, auditoriums
🏨
Sector Hotelero
Hotels, restaurants, convention centres
Competitive advantages of GIAC400IX49BDT3
√ MAXIM POTENCE
40 kW of frigorific capacity for the most demanding projects, covering up to 800 m2 with uniform and efficient air conditioning.
▪ EFFICIENCY
Advanced inverter technology with EER 3.20 and COP 3.81, optimizing energy consumption and reducing operating costs.
VERY STATEMENT
Hidden duct system with 150 Pa static pressure, allowing complex installations up to 50 meters away.
GIATSU QUALITY
Brand spanish leader with more than 30 years of experience, extended warranty and specialized technical service network.
Y️ Warranty and Specialized Technical Service
▷ Manufacturer's Warranty: 2 years in equipment + 5 years in compressor
Official technical service: National Network of Specialized Techniques
Technical support: Specialized technical assistance 24/7
Certifications: CE, EUROVENT, ISO 9001
Official technical service: National Network of Specialized Techniques
Technical support: Specialized technical assistance 24/7
Certifications: CE, EUROVENT, ISO 9001
GIATSU - SPANISH INDUSTRIAL CLIMATE
GIAC400IX49BDT3
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 40.000
- Refrigerator capacity (kcal / h)
- 34.400
- Nominal consumption Cold (W)
- 9.760
- SEER
- 6,3
- Heat capacity (W)
- 45.000
- Heat capacity (Kcal / h)
- 38.700
- Nominal heat consumption (W)
- 9.340
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 60
- Weight Indoor Unit (Kg)
- 222,0
- Weight Outdoor Unit (Kg)
- 275,0
- Diameter Liquid pipe
- 5/8"
- Diameter Gas Pipe
- 1 1/8"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 2165 x 916 x 676
- EU dimensions (anxfxh) mm
- 1340 x 840 x 1740
