Ducted Air Conditioner LG UM42F CONFORT+ UM42F.N21 + UUD1.U30
High-powered air conditioning system with 11.2 kW nominal capacity, designed for large commercial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced technology, ideal for medium-large offices, shopping centers, hotels and spaces that require high quality professional air conditioning.
- ▷ Nominal power of 11,2 kW in cold and 13,2 kW in heat for wide spaces
- ▷ Modulant capacity of 4,60-13,20 kW cold and 5,50-14,80 kW heat
- ▷ Higher energy efficiency with SEER 5,90 and SCOP 4,00 (A+/A)
- ▷ Static pressure up to 147 Pa for large installations
- ▷ Maximum pipe length up to 85 meters for maximum flexibility
- ▷ Quiet operation (35 dB) and ecological coolant R32
Reference: UM42F.N21 + UUD1.U30
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG UM42F CONFORT+ UM42F.N21 + UUD1.U30
Referencia: KITCONDCM42F_CONFORT+
€2,303.53
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner LG UM42F CONFORT+ UM42F.N21 + UUD1.U30
High-powered air conditioning system with 11.2 kW nominal capacity, designed for large commercial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced technology, ideal for medium-large offices, shopping centers, hotels and spaces that require high quality professional air conditioning.
- ▷ Nominal power of 11,2 kW in cold and 13,2 kW in heat for wide spaces
- ▷ Modulant capacity of 4,60-13,20 kW cold and 5,50-14,80 kW heat
- ▷ Higher energy efficiency with SEER 5,90 and SCOP 4,00 (A+/A)
- ▷ Static pressure up to 147 Pa for large installations
- ▷ Maximum pipe length up to 85 meters for maximum flexibility
- ▷ Quiet operation (35 dB) and ecological coolant R32
Reference: UM42F.N21 + UUD1.U30
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG UM42F CONFORT+ is a high-end air conditioning system designed to provide superior comfort in large commercial spaces that require power, reliability and maximum energy efficiency. This team of the prestigious Free Combination CONFORT+ range LG combines a nominal power of 11.2 kW in cold and 13.2 kW in heat with an exceptional modulant capacity ranging from 4.60 to 13.20 kW in cooling and from 5.50 to 14.80 kW in heating.

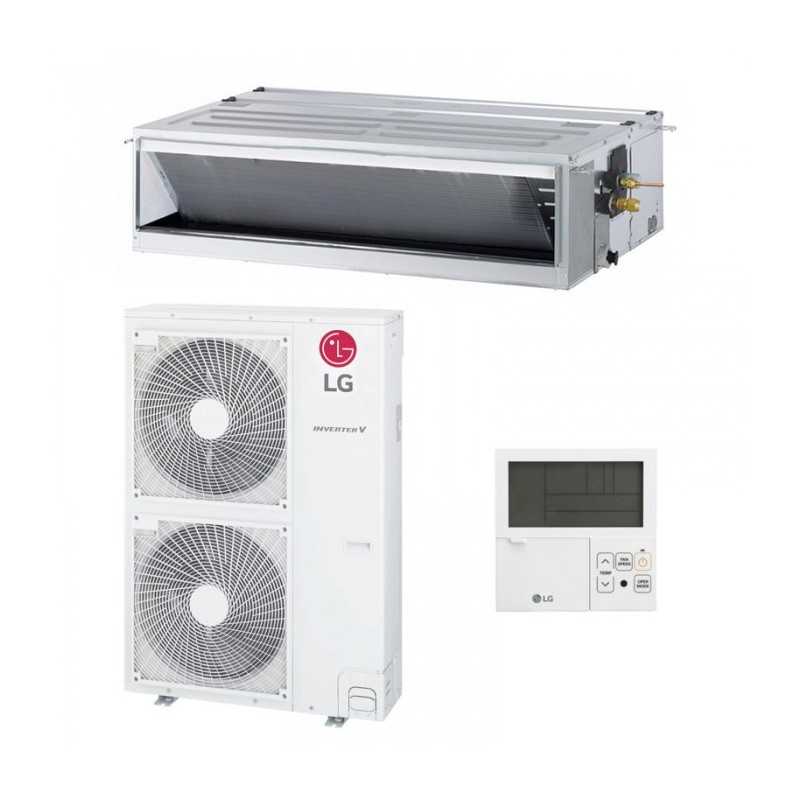

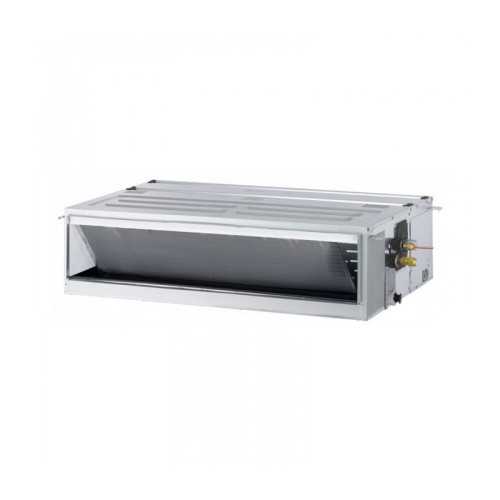

Composed of indoor Unit UM42F.N21 and the outdoor Unit UUD1.U30, this system stands out for its ability to handle large-scale installations with pipe lengths up to 85 meters and static pressure up to 147 Pa. La indoor Unit, with dimensions of 1,250 x 270 x 700 mm, has been specifically designed for horizontal installation in commercial spaces, providing an airflow of up to 35 m3/min with exceptional sound levels of 39/37/35 dB according to the selected speed.

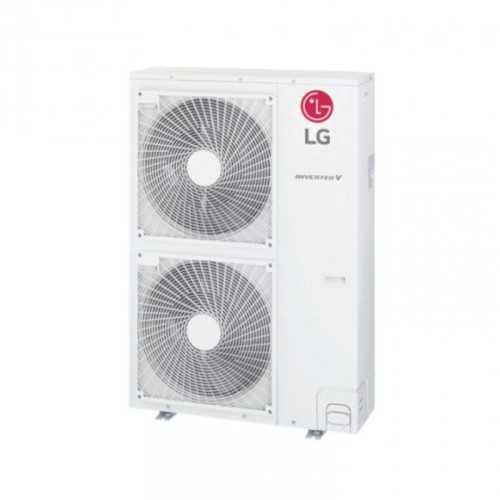

La outdoor Unit UUD1.U30, with its 950 x 1.380 x 330 mm dimensions, incorporates dual fan technology (55 x 2 m3/min) to maximize thermal exchange and ensure optimal performance even in extreme environmental conditions. With a range of operation ranging from -20°C to 52°C in cooling and from -25°C to 18°C in heating, this system uses 3.0 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising the professional performance demanded by demanding commercial applications.
Main features
🏢
Optimized Commercial Power
Nominal power of 11,2 kW in cold and 13,2 kW in heat, with intelligent modulation from 4,60-13,20 kW in cooling and 5,50-14,80 kW in heating.
📏
Facilities of Great Scope
Maximum length of pipe up to 85 meters with a 30 meters high, ideal for commercial buildings of multiple plants and complex configurations.
️
Operation Extreme Range
It works efficiently from -20°C to 52°C in cooling and from -25°C to 18°C in heating, ensuring comfort in any condition.
🔇
Exceptional Acoustic Comfort
Reduced sound levels of 39/37/35 dB indoor Unit, ideal for commercial environments that require tranquility.
️
Dual Ventilator Technology
External double fan system (55 x 2 m3/min) which guarantees maximum thermal exchange and constant efficiency.
🌱
Environmental responsibility
Refrigerant Gas Ecological R32 with 3.0 kg load, combining high performance with lower environmental impact.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | UM42F.N21 + UUD1.U30 |
| Cold Capacity (Mín-Nom-Máx) | 4,60 - 11,20 - 13,20 kW |
| Heat capacity (Mín-Nom-Máx) | 5,50 - 13,20 - 14,80 kW |
| EER / COP | 3,11 / 3,66 |
| SEER / SCOP | 5,90 / 4,00 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 1.250 x 270 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 1.380 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 39 / 37 / 35 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 52/53 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 35 / 30 / 25 m3/min |
| Air flow rate Outdoor Unit | 55 x 2 m3/min |
| Static Pressure (Standard/Maximum) | 39 / 147 Pa |
| Refrigerant Gas / Charge | R32 / 3.0 kg |
| Length Tuberia (Min/Máx) | 5 / 85 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 36.5 kg |
| Weight Outdoor Unit | 89 kg |
Air Conditioning Benefits LG UM42F CONFORT+
✓
Perfect solution for large commercial spaces
With 11.2 kW rated power, it is ideal for medium-sized offices, shopping centers, showrooms, wide restaurants and commercial spaces that require high quality professional air conditioning and constant performance.
✓
Maximum installation flexibility
With pipe lengths up to 85 meters and high static pressure, it allows to air complex commercial buildings, even those with challenging architecture and multiple plants.
✓
Higher energy efficiency
Advanced modulation technology and the A+/A rating with SEER 5,90 ensure optimized energy consumption, significantly reducing long-term operating costs.
✓
Comfortable working environment
Its reduced sound levels (from 35 dB) guarantee a quiet working environment, ideal for offices, meeting rooms and commercial spaces where acoustic comfort is essential.
Why choose Air Conditioning LG UM42F CONFORT+?
Main applications
🏢
Medium-Great Offices
Spacious workspaces, corporate offices and business centers that require silent and efficient air conditioning during long working days.
️
Shopping Centres
Medium stores, showrooms and commercial spaces that need comfortable environment to improve the customer's shopping experience.
️
Restaurants and Hotels
Comprehensive hospitality facilities that require constant and comfortable air conditioning to ensure the satisfaction and comfort of their guests.
Installation Information
Important considerations:
- La indoor Unit UM42F.N21 is designed exclusively for horizontal installation.
- Maximum length of pipe: 85 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 50 g/m for upper lengths.
- Frigorific connections: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8") in both units.
- La outdoor Unit UUD1.U30 requires adequate space due to its dimensions (950 x 1.380 x 330 mm) and weight (89 kg).
- External double fan system that requires free ventilation on both sides for optimal operation.
- Installation by technical staff specialized in commercial systems and authorized by LG to ensure proper functioning and maintain the validity of the warranty.
The perfect balance between power and efficiency for your business!
Air Conditioning by Conduct LG UM42F CONFORT+ combines commercial power, superior energy efficiency and installation flexibility to provide the ideal air conditioning solution for large commercial spaces. Invest in technology LG CONFORT+ and guarantee the comfort of your customers and employees.
Request your custom budget today!
KITCONDCM42F_CONFORT+
Data sheet
- Brand
- LG
- Indoor Unit
- Outdoor Unit
- UUD1.U30
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 12.000
- Refrigerator capacity (kcal / h)
- 10.320
- Nominal consumption Cold (W)
- 3.480
- Energy class (cold)
- A+
- SEER
- 5,6
- Heat capacity (W)
- 13.500
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.740
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 34
- Weight Indoor Unit (Kg)
- 39,0
- Weight Outdoor Unit (Kg)
- 85,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 100m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1250 x 700 x 270
- EU dimensions (anxfxh) mm
- 950 x 330 x 1380
