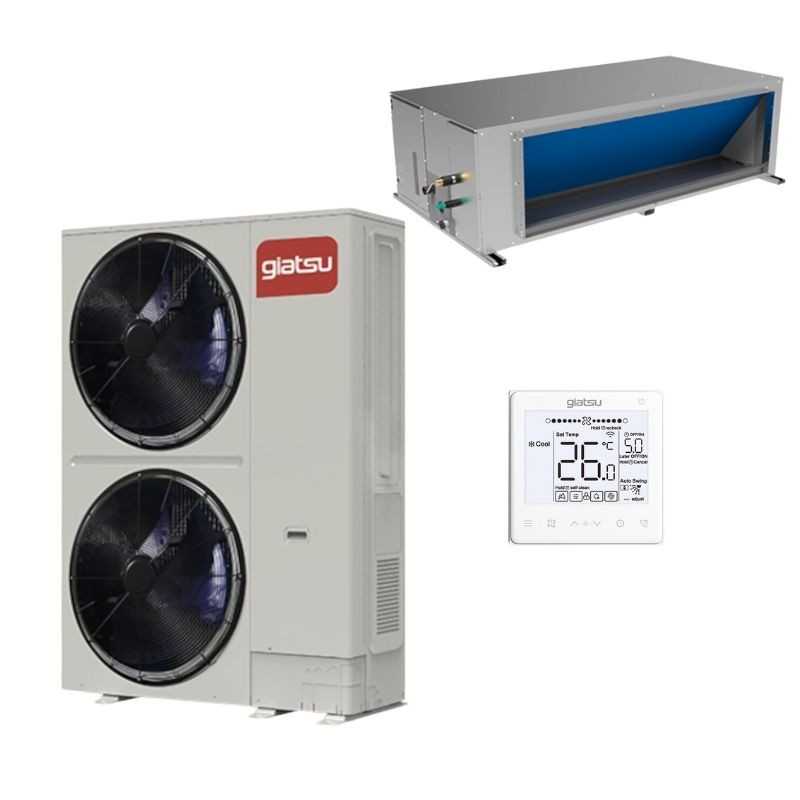

Ducted Air Conditioner Giatsu GIA-BD-56IX56A
Series BIG DUCT IX56A Δ 56000 W Δ 400Pa Δ R410A Δ Tope Gama Industrial
The Giatsu GIA-BD-56IX56A is the range top of the BIG DUCT IX56A Series with 56kW and 400 Pa static pressure. For industrial spaces of 250-300 m2, SEER 6.9 maximum flow 3200 m3/h, R410A inverter technology and advanced weekly control for maximum efficiency and professional performance.
400 Pa
Industrial pressure
3️ 3200 m3/h
Maximum rate
▪ SEER 6.9
Top efficiency
250-300 m2
Industrial application
Reference: GIA-BD-56IX56A Giatsu BIG DUCT IX56A Top Gama
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-BD-56IX56A Big Duct
Referencia: GIA-BD-56IX56A
€10,519.86
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-BD-56IX56A
Series BIG DUCT IX56A Δ 56000 W Δ 400Pa Δ R410A Δ Tope Gama Industrial
The Giatsu GIA-BD-56IX56A is the range top of the BIG DUCT IX56A Series with 56kW and 400 Pa static pressure. For industrial spaces of 250-300 m2, SEER 6.9 maximum flow 3200 m3/h, R410A inverter technology and advanced weekly control for maximum efficiency and professional performance.
400 Pa
Industrial pressure
3️ 3200 m3/h
Maximum rate
▪ SEER 6.9
Top efficiency
250-300 m2
Industrial application
Reference: GIA-BD-56IX56A Giatsu BIG DUCT IX56A Top Gama
Security policy
Delivery policy
Refund policy
The Absolute Excellence of the BIG DUCT IX56A Series
The Air Conditioning by Conduct Giatsu GIA-BD-56IX56A represents the technological summit of the BIG DUCT IX56A Series, establishing new standards in industrial climate control 56000 W Extreme Power. Maintaining the exceptional static pressure 400 Pa characteristic of the series, this model is designed for the most demanding applications that require absolute industrial power and massive air distribution.
Your technology inverter with coolant R410A achieves summit efficiency SEER 6.9, while the massive flow of 3200 m3/h guarantees effective air conditioning for industrial spaces of 250-300 m2. With advanced control and optimised industrial configuration, it is positioned as the ultimate solution for large industrial complexes, logistics centers and megaprojects that demand the maximum benefit in air conditioning through ducts.
🏭
56000 W Tope Gama
Absolute industrial power for large complexes, logistics centers and megaprojects up to 300 m2.
️
Massive flow 3200 m3/h
Massive flow for uniform distribution in industrial mega installations and logistical complexes.
▪
SEER 6,9 Summit
Energy efficiency summit with R410A inverter technology for maximum savings in industrial applications.
👑
Industrial configuration
Optimized industrial configuration with advanced control for megaprojects and critical applications.
Technical Specifications Tope Gama
| Feature | Specification | Unit |
|---|---|---|
| Model | GIA-BD-56IX56A | - |
| Frigorific power | 56000 | W |
| Calorific power | 58000 | W |
| SEER (Scheduling) | 6,9 | - |
| Electrical supply | 220-240V/50Hz | V/Hz |
| Maximum Static Pressure | 400 | Pa |
| Massive Air Caudal | 3200 | m3/h |
| Industrial sound level | 55/53/50/47 | dB(A) |
| Refrigerant Gas | R410A | - |
| Settings | Optimized Industrial | - |
| Industrial Coverage | 250-300 | m2 |
| Category | TOPE GAMA | - |
Why choose to choose Giatsu GIA-BD-56IX56A Tope Gama?
: Industrial applications Extreme:
- Large logistics centres and industrial stores
- Industrial complexes and production plants
- Large-surface shopping centres
- Airports and transport terminals
- Large-scale medical facilities and hospitals
- Megaprojects requiring 250-300 m2 coverage
▼ Advantages Top Gama:
- Total industrial power 56000 W with SEER 6,9
- High static pressure 400 Pa for complex installations
- Massive 3200 m3/h flow for mega-installations
- Optimized industrial configuration for critical applications
- High efficiency R410A inverter technology
- Robust design for continuous industrial operation
Specialized Industrial Installation
🔧
Industrial Project
Specialized design megaprojects
️
Certified Installation
Industrial specialized technicians
️
Industrial guarantee
Full coverage tope range
📞
24/7 support
Continuous industrial assistance
GIA-BD-56IX56A
Data sheet
- Brand
- Giatsu

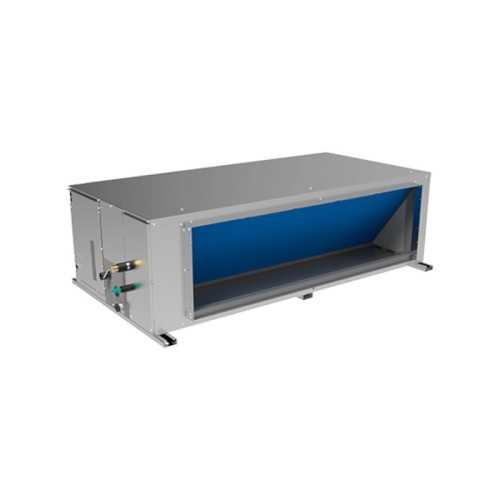

- Indoor Unit

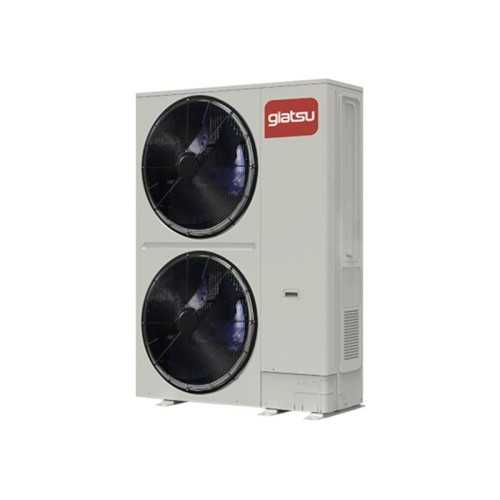

- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 56.000
- Refrigerator capacity (kcal / h)
- 48.160
- Nominal consumption Cold (W)
- 28.000
- SEER
- 5,9
- Heat capacity (W)
- 63.000
- Heat capacity (Kcal / h)
- 54.180
- Nominal heat consumption (W)
- 17.120
- SCOP
- 4,4
- Minimum sound pressure UI DB
- 49
- Weight Indoor Unit (Kg)
- 170,0
- Weight Outdoor Unit (Kg)
- 234,0
- Diameter Liquid pipe
- 5/8"
- Diameter Gas Pipe
- 1 1/8"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 1850 x 900 x 580
- EU dimensions (anxfxh) mm
- 1250 x 445 x 1760
