Air Conditioning Mitsubishi Electric MSPEZ-60VJA
Refrigeration 6100W 日本語 Heating 7000W ̄s Efficiency A+ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-60VJA is the powerful solution of the Standard Inverter series with 6100W in cooling and 7000W heating. With indoor Unit only 250mm high, this hidden duct system offers robust and discrete air conditioning for medium-large spaces that require high power and maximum energy efficiency.
6️ 6100W Refrigeration
EER 3.60 - Powerful
7 7000W Heating
COP 3,80 - Excellent
▪ SEER 6,1 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M60JA
Outdoor Unit: SUZ-M60VA
Air flow: 14.5-21.0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 25 dBA
Annual consumption: 345 kWh/year
Refrigerant Gas: R-32 (1.25 kg)
PAR-41MAA Command: Advanced control
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MSPEZ-60VJA Standard Inverter Single-Phase Ducted
Referencia: MSPEZ-60VJA
€2,063.64
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MSPEZ-60VJA
Refrigeration 6100W 日本語 Heating 7000W ̄s Efficiency A+ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-60VJA is the powerful solution of the Standard Inverter series with 6100W in cooling and 7000W heating. With indoor Unit only 250mm high, this hidden duct system offers robust and discrete air conditioning for medium-large spaces that require high power and maximum energy efficiency.
6️ 6100W Refrigeration
EER 3.60 - Powerful
7 7000W Heating
COP 3,80 - Excellent
▪ SEER 6,1 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M60JA
Outdoor Unit: SUZ-M60VA
Air flow: 14.5-21.0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 25 dBA
Annual consumption: 345 kWh/year
Refrigerant Gas: R-32 (1.25 kg)
PAR-41MAA Command: Advanced control
Security policy
Delivery policy
Refund policy
Mitsubishi Electric MSPEZ-60VJA
Ducted Air Conditioner 6100W Standard Inverter Series
High Power Standard Series
The MSPEZ-60VJA offers high power with advanced Inverter technology for demanding spaces. With 6100W in cooling and 7000W heating, provides robust air conditioning for large surfaces. Your rating SEER 6,1 A++ ensures controlled consumption 345 kWh/year, ideal for spaces of 50-75m2.
Optimized R32 Technology
Equipped with refrigerant R32, maximize efficiency while reducing environmental impact. The load 1.25 kg is optimized for this power, ensuring sustainable operation. Its ecological design complies with the European regulations ErP and prepares the equipment for future environmental regulations.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 6100W
- • Operation Range: 1.6-6.3 kW
- • EER: 3.60 (Excellent)
- • SEER: 6.1 A++ (Ultraefficient)
- • Consumption: 1,69 kW nominal
Performance Heating
- • Nominal power: 7000W
- • Operation Range: 1.6-8.0 kW
- • COP: 3.80 (Excellent)
- • SCOP: 4.1 A+ (High Efficiency)
- • Consumption: 1.84 kW nominal
S Technical characteristics
- • Indoor Unit: PEAD-M60JA
- • Outdoor Unit: SUZ-M60VA
- • Dimensions: 250x1100x732mm
- • Interior weight: 29.5 kg
- • Tuberia: Ø6,35/15,88mm
Y Control and Functionality
- • PAR-41MAA Command: Advanced control
- • Air flow: 14.5-21.0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 25-33 dBA
- • Food: 230V/1~ 16.4A
▼ Annual Consumption Controlled
Only 345 kWh/year cooling Δ 1558 kWh/year heating
Power controlled with Inverter Standard Series efficient technology
Installation and Dimensions Standard Series

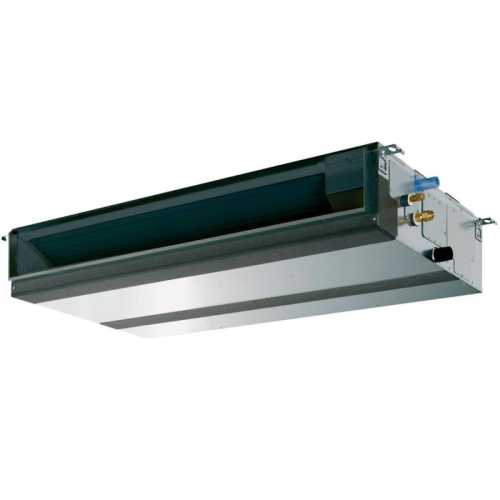

📐 Indoor Unit PEAD-M60JA
- • Dimensions: 250 x 1100 x 732 mm
- • Compact height: Only 250mm
- • Weight: 29.5 kg (robust)
- • Air flow: 14.5-18.0-21.0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 25-29-33 dBA

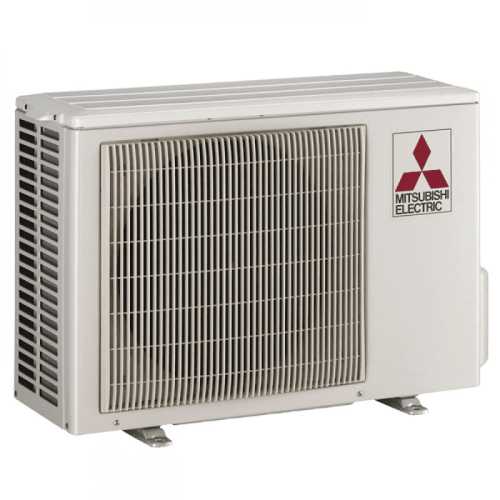

🏢 Outdoor Unit SUZ-M60VA
- • Dimensions: 880 x 840 x 330 mm
- • Weight: 54 kg (robust)
- • Air flow: 50 m3/min
- • Sound level: 49 dBA
- • Food: 230V/1~ - 16.4A
- • Operation range: -15°C to +46°C

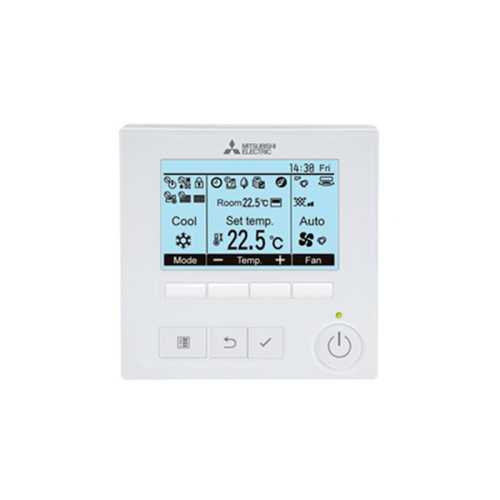

PAR-41MAA Advanced Control
Includes command PAR-41MAA with comprehensive control of the high-power system. Advanced weekly programming, precision temperature control, intelligent automatic modes and real-time energy monitoring. Compatible with optional WiFi automation and control systems.
Featured functions: Programming 7 days, Multizone Control, Automatic Eco Mode, Full Diagnosis
Y Connectivity and Expansion
System prepared for complete home integration. Optional WiFi connection MAC-587IF for remote control by smartphone. Interface M-NET for integration with centralized energy management systems and high-power intelligent buildings.
Available options: Smart WiFi, centralized M-NET, External signals, Remote temperature sensor
Y️ Installation and Maintenance
Requirements Installation
- • Tuberia: Ø6,35/15,88mm
- • Max length: 30m total / 30m vertical
- • Electrical connection: 230V/1~ monophasic
- • Minimum space: According to installation standards
S️ Included Protections
- • Condensing control: Incorporated
- • Dehydrator filter: Standard series
- • Overload protection: Automatic
- • Self-diagnosis: Complete system
Gos️ Rangos Operation
- • Refrigeration: -15°C to +46°C ext.
- • Heating: -10°C to +24°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Y Warranty and Certifications
Warranty Mitsubishi Electric 日本語 CE Certification Cumple ErP 2021
Japanese quality with specialized technical support and national technical service network
El Higher Power with MSPEZ-60VJA
High power of 6100W with maximum efficiency A++ and advanced control PAR-41MAA
️
SEER 6,1 A++
Controlled 345 kWh/year
🔥
COP 3.80
Powerful 7000W Heating
🔇
25 dBA Silent
Ultrasilious operation
📏
250mm Compact
Standard discreet series
PAR-41MAA Control Include + Ecological R32
Advanced command with weekly programming • Refrigerant Gas R32 reduced environmental impact • Japanese Inverter technology • Installation occult ducts • Spaces 50-75m2

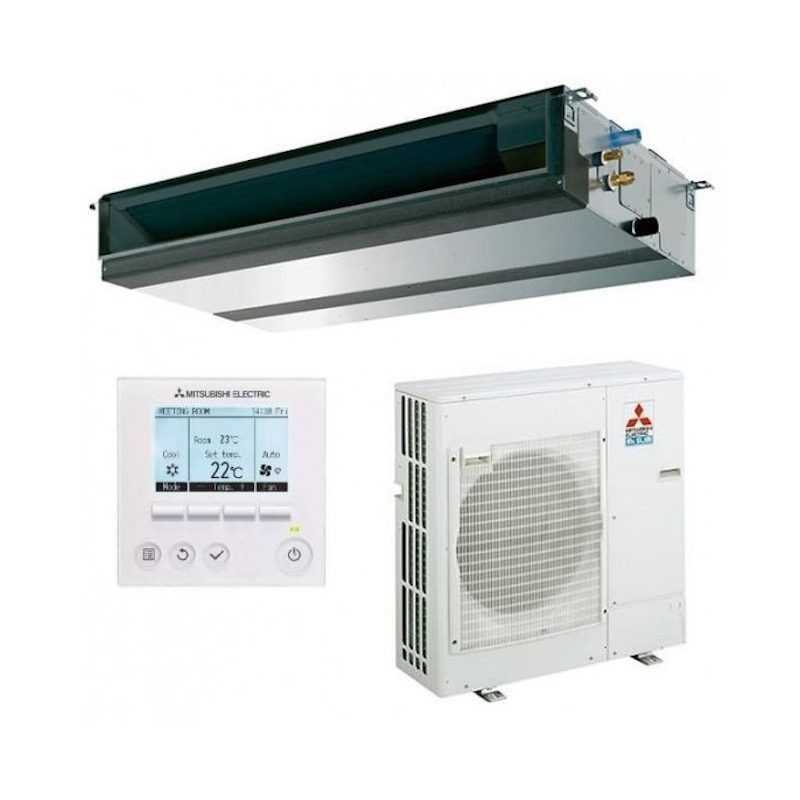

▷ Includes in the Price
- • Indoor Unit PEAD-M60JA
- • Outdoor Unit SUZ-M60VA
- • PAR-41MAA
- • Basic installation kit
S Unique benefits
- • Warranty Mitsubishi Electric
- • Professional installation available
- • Specialized technical support
- • Certified A++ Efficiency
▪ High Power Available!
MSPEZ-60VJA with Inverter technology and efficiency A++ - Powerful Standard Series
🎯 Spaces: 50-75m2
▪ Consumption: 345 kWh/year
🌿 Gas: R32 Ecological
📱 Control: PAR-41MAA
🏆 Mitsubishi Electric Standard MSPEZ-60VJA series
Powerful air conditioning with Japanese technology • Advanced control PAR-41MAA included • Professional installation available
MSPEZ-60VJA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-M60JA
- Outdoor Unit
- SUZ-M60VA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.093
- Refrigerator capacity (kcal / h)
- 5.240
- Nominal consumption Cold (W)
- 1.690
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 7.000
- Heat capacity (Kcal / h)
- 6.020
- Nominal heat consumption (W)
- 1.840
- Energy class (heat)
- A+
- SCOP
- 4.1
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 29,5
- Weight Outdoor Unit (Kg)
- 54,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 50m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1100 x 732 x 250
- EU dimensions (anxfxh) mm
- 840 x 330 x 880
