Air Conditioning Mitsubishi Electric MGPEZ-140YJA-C41
Refrigeration 13400W Δ Heating 15000W Δ Triphasic 400V Δ Mando PAR-40/41 Δ Serie PRO
The Air Conditioning Mitsubishi Electric MGPEZ-140YJA-C41 is the ultimate three-phase absolute power solution of the PRO Mr.SLIM Series with 13400W in cooling and 15000W heating. With indoor Unit ultra compact single 250mm high and 400V triphase power supply, this occult duct system offers maximum absolute power air conditioning with maximum electrical stability for huge commercial and industrial spaces that require extreme performance.
13️ 13400W Refrigeration
EER 2,70 - Maximum Absolute
15000W Heating
COP 3.50 - Extreme Calor
▪ SEER 210.1% / SCOP 150.2%
Extreme efficiency
400V Triphasic
Maximum Stability
Key Specifications Conduct Triphasic PRO Series
Indoor Unit: PEAD-SM140JA
Outdoor Unit: PUZ-SM140YKA
Food: 400V/3~ - 14,3A
Air flow: 32,0-46,0 m3/min
Sonic Pressure: 34 dBA
Annual consumption: 996 kWh/year
Refrigerant Gas: R-32 (3.60 kg)
Included Command: PAR-40/41
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MGPEZ-140YJA Three-Phase Ducted
Referencia: MGPEZ-140YJA-C41
€4,255.80
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MGPEZ-140YJA-C41
Refrigeration 13400W Δ Heating 15000W Δ Triphasic 400V Δ Mando PAR-40/41 Δ Serie PRO
The Air Conditioning Mitsubishi Electric MGPEZ-140YJA-C41 is the ultimate three-phase absolute power solution of the PRO Mr.SLIM Series with 13400W in cooling and 15000W heating. With indoor Unit ultra compact single 250mm high and 400V triphase power supply, this occult duct system offers maximum absolute power air conditioning with maximum electrical stability for huge commercial and industrial spaces that require extreme performance.
13️ 13400W Refrigeration
EER 2,70 - Maximum Absolute
15000W Heating
COP 3.50 - Extreme Calor
▪ SEER 210.1% / SCOP 150.2%
Extreme efficiency
400V Triphasic
Maximum Stability
Key Specifications Conduct Triphasic PRO Series
Indoor Unit: PEAD-SM140JA
Outdoor Unit: PUZ-SM140YKA
Food: 400V/3~ - 14,3A
Air flow: 32,0-46,0 m3/min
Sonic Pressure: 34 dBA
Annual consumption: 996 kWh/year
Refrigerant Gas: R-32 (3.60 kg)
Included Command: PAR-40/41
Security policy
Delivery policy
Refund policy
MITSUBISHI ELECTRIC MGPEZ-140YJA-C41
Ducted Air Conditioner PRO series Mr.SLIM 13400W Triphasic
MÁXIMA POTENCIA ABSOLUTA TRIFÁSICA JAPONESA
The Mitsubishi Electric MGPEZ-140YJA-C41 represents maximum exponent of triphasic air conditioning through in the PRO Series Mr.SLIM. This team combines 13400W cooling and 15000W heating with 400V triphase power supply and one ultra compact design of only 250mm height, being the ultimate solution for huge commercial and industrial spaces where maximum absolute power is required with maximum electrical stability.
La technology Inverter triphase maximum absolute power along with the refrigerant R-32 eco and the advanced PAR-40/41 control ensures operation extreme with 34dBA minimum and one extreme energy efficiency SEER 210.1% which translates into a annual consumption of 996 kWh, providing the definitive balance between maximum absolute three-phase power, extreme efficiency and environmental sustainability for maximum commercial and industrial applications.
▪ TRIFÁSICO REPRESENTATIVE
13️ Refrigeration 13400W
EER 2,70 - Maximum three-phase absolute power for spaces 110-170m2
Heating 15000W
COP 3.50 - Extreme three phase heat all year round
▪ Three-phase food: 400V/3~ - 14,3A maximum stability Control: Advanced PAR-40/41 control Sound level: 34dBA Extreme ̄s 🌿 Refrigerant Gas: Organic R-32 (3.60 kg)
TÉCNICAS TRIFÁSICS OF MÁXIMA POTENCIA ABSOLUTA

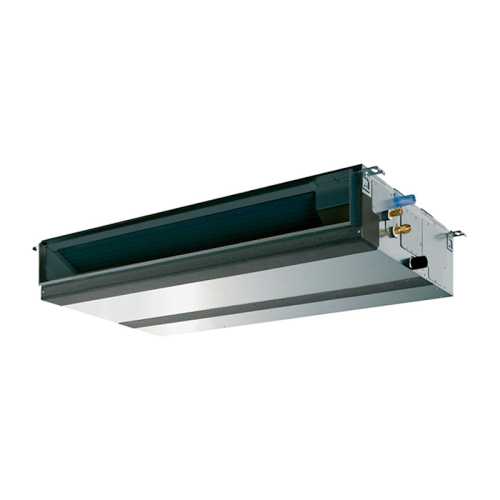

📦 Indoor Unit PEAD-SM140JA
- Dimensions: Ultra compact 250mm height
- Air flow: 32,0-46,0 m3/min variable
- Static pressure: 35-150 Pa adjustable
- Installation: Horizontal occult conduct

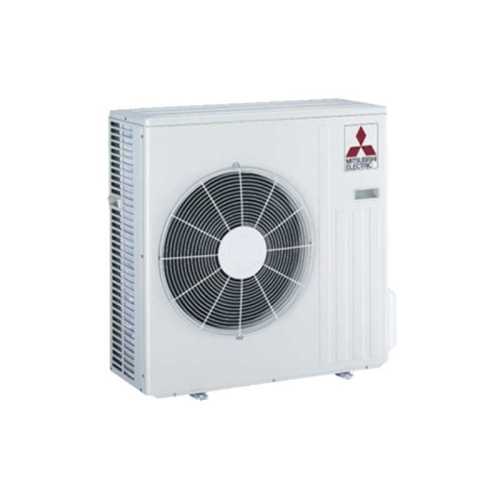

▪ Outdoor Unit PUZ-SM140YKA
- Technology: Total maximum triphase inverter
- Food: 400V/3~ - 14,3A maximum
- Refrigerant Gas: Organic R-32 (3.60 kg)
- Pipe length: Up to 40m maximum

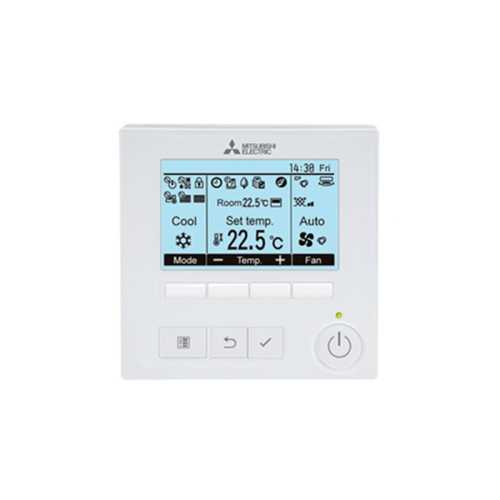

CONTROL EXTREM PAR-40/41 AND MÁXIMA TRIFÁSIC FUNTIONS
PAR-40/41 Included
Extremely high-performance triphasic control with specialized management for maximum 400V power, optimized fan speeds for extreme triphasic, advanced weekly programming and specialized functions for high-end commercial and industrial applications and absolute performance.
️ Control Extremo
13400W precise
Programme
Industrial hours
▪ Stability
400V Maximum
▷ INCLUYE COMPLETE TRIFÁSICO MÁXIMA POTENCIA ABSOLUTA

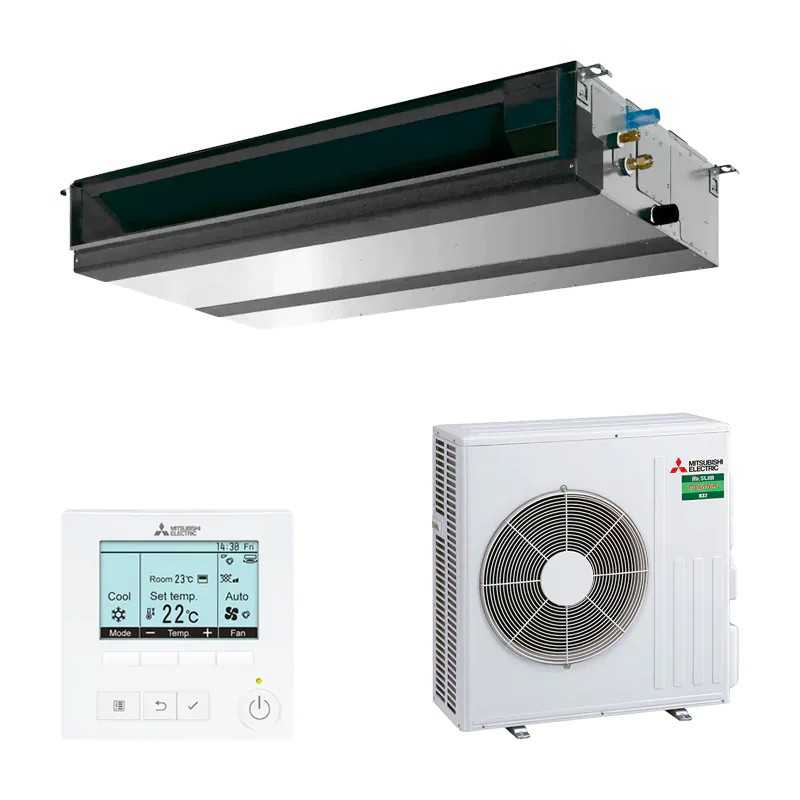

Indoor Unit + Outdoor Unit Triphasic + PAR-40/41 handle + Official warranty Mitsubishi Electric
・ 400V Triphasic 日本語 : Surface: 110-170m2 Δ 34dBA Extremo Δ - R-32 Ecological
BUY TU MGPEZ-140YJA-C41
Air Conditioning Mitsubishi Electric PRO 13400W Triphasic Series
WHERE'S THE MGPEZ-140YJA-C41?
・ 13400W Maximum Absolute
SEER 210.1% - 996 kWh/year
400V Triphasic
Maximum electrical stability
34 34dBA Extreme
Maximum silent power
▷ WHAT YOU'RE INCLUDING
▷ Indoor Unit PEAD-SM140JA
▷ Outdoor Unit PUZ-SM140YKA
▷ PAR-40/41
▷ Official guarantee
▷ Technical Support
▷ User manual
OH, MY GOD!
Air conditioning Triphasic series of maximum absolute power for enormous industrial and commercial applications
・ 400V Triphasic Δ para Ideal for 110-170m2 Δ - Control PAR-40/41 Δ 34dBA
MGPEZ-140YJA-C41
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-SM140JA
- Outdoor Unit
- PUZ-SM140YKA
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 13.400
- Refrigerator capacity (kcal / h)
- 11.524
- Nominal consumption Cold (W)
- 4.960
- Heat capacity (W)
- 15.000
- Heat capacity (Kcal / h)
- 12.900
- Nominal heat consumption (W)
- 4.280
- Minimum sound pressure UI DB
- 34
- Weight Indoor Unit (Kg)
- 44,0
- Weight Outdoor Unit (Kg)
- 84,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 110m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1600 x 732 x 250
- EU dimensions (anxfxh) mm
- 1050 x 330 x 981
