Air Conditioning Panasonic KIT-125PF3Z5
Refrigeration 12100W 日本語 Heating 12100W ̄s Efficiency 257.4% Δ R-32 Δ Ultra High Power Monof
The Air Conditioning Panasonic KIT-125PF3Z5 represents the ultra high power in monophasic power 220-240V of the PACi NX Standard Series. Offer exceptional 12100W power with Inverter+ and eco-friendly R-32 coolant technology. PF3 revolutionary design that allows horizontal and vertical installation with nanoetm X Mark 2 series. Ideal for large spaces of 120-150m2 that require maximum air conditioning.
12️ 12100W Refrigeration
EER 3.40 - Ultra High Power
12 12100W Heating
COP 3.56 - High performance
≤227.4% / ηsh 142.6%
Maximum efficiency
・ Monofásico
220-240V • 12100W
Specifications Ultra High Power Key
Indoor Unit: S-1014PF3E
Outdoor Unit: U-125PZ3E5
Air flow: 34,0/29,0/23,0 m3/min
Static pressure: 50 Pa (10-150 Pa)
Sonic Pressure: 35/31/27 dBA
Seasonal efficiency: 257,4% oceania
Refrigerant Gas: R-32 (2.80 kg)
Length Tuberia: 5-50m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

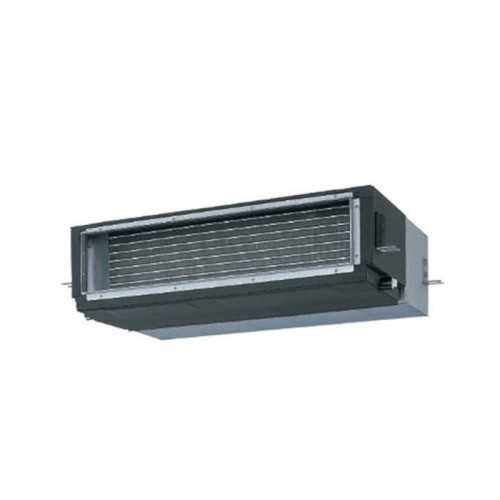

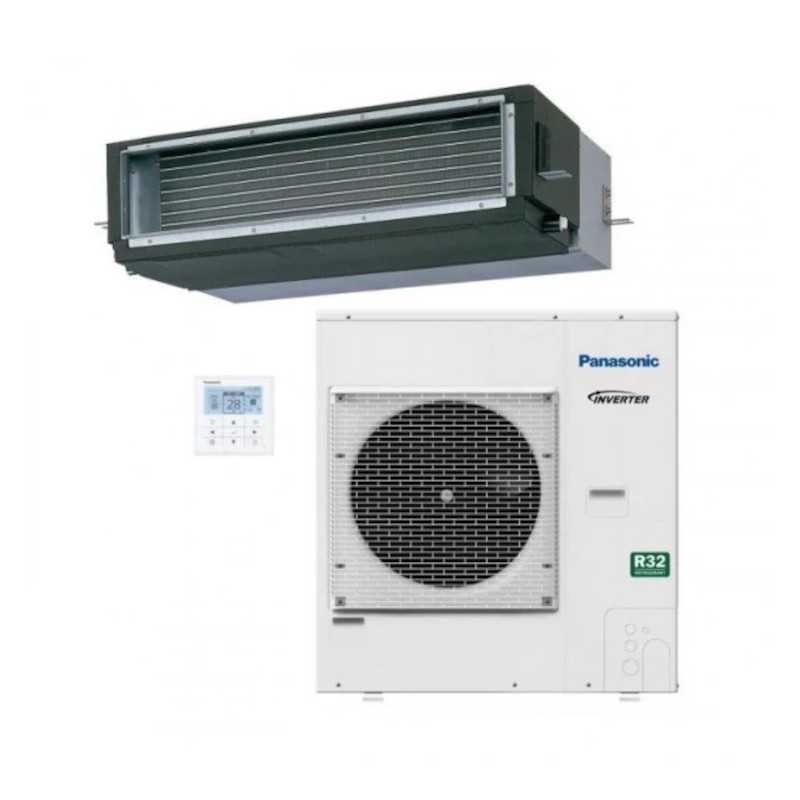

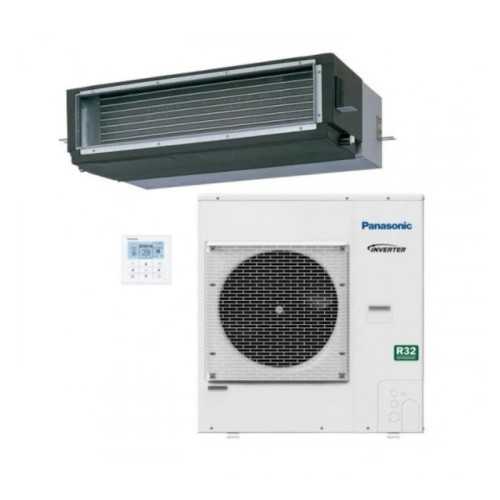

Ducted Air Conditioner Panasonic KIT-125PF3Z5-6W PACi NX Standard Series
Referencia: KIT-125PF3Z5-6W
€2,647.69
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-125PF3Z5
Refrigeration 12100W 日本語 Heating 12100W ̄s Efficiency 257.4% Δ R-32 Δ Ultra High Power Monof
The Air Conditioning Panasonic KIT-125PF3Z5 represents the ultra high power in monophasic power 220-240V of the PACi NX Standard Series. Offer exceptional 12100W power with Inverter+ and eco-friendly R-32 coolant technology. PF3 revolutionary design that allows horizontal and vertical installation with nanoetm X Mark 2 series. Ideal for large spaces of 120-150m2 that require maximum air conditioning.
12️ 12100W Refrigeration
EER 3.40 - Ultra High Power
12 12100W Heating
COP 3.56 - High performance
≤227.4% / ηsh 142.6%
Maximum efficiency
・ Monofásico
220-240V • 12100W
Specifications Ultra High Power Key
Indoor Unit: S-1014PF3E
Outdoor Unit: U-125PZ3E5
Air flow: 34,0/29,0/23,0 m3/min
Static pressure: 50 Pa (10-150 Pa)
Sonic Pressure: 35/31/27 dBA
Seasonal efficiency: 257,4% oceania
Refrigerant Gas: R-32 (2.80 kg)
Length Tuberia: 5-50m
Security policy
Delivery policy
Refund policy
🏢 Ducted Air Conditioner Panasonic KIT-125PF3Z5
PACi NX Standard • Inverter+ • R32 • nanoeTM X Mark 2
12️ 12100W Refrigeration • 12 12100W Heating • ك ULTRA ALTA POTENCIA MONOFÁSICA
Product Details
The Air Conditioning by Conduct Panasonic KIT-125PF3Z5 represents the ultra high monophase power within the PACi NX Standard Series, offering exceptional 12100W capacity with standard 220-240V power. This Inverter+ system with R32 coolant is designed for large 120-150m2 spaces that require maximum air conditioning with the comfort of a conventional monophase power supply.
The revolutionary pF3 design allows for the first time the installation both horizontal and vertical, providing unprecedented flexibility in high-power applications. With an external static pressure of up to 150 Pa, this equipment is ideal for large spaces where the units must be located away from the heated areas, with pipe lengths of up to 50 meters and deniveles of up to 30 meters.
Incorporates technology nanoeTM X Mark 2 series, which generates 9.6 billion hydroxyl radicals per second, essential to maintain air quality in large spaces with high occupation. The drainage pump included and the indoor Unit large (1400mm) guarantee professional performance for the most demanding applications.
This model represents the ultra high power in monophase power, being the perfect solution for large homes, corporate offices and commercial spaces that need maximum air conditioning capacity while maintaining the simplicity of standard monophase feeding. Its exceptional seasonal efficiency Bolivarian 257.4% guarantees economic performance despite its ultra high power.
Maximum Seasonal Efficiency
θ2 257,4%
ηsh 142.6%
️ EER 3.40
COP 3.56
De Ultra High Power Features
▪
Ultra High-Power Monof
12100W with standard power 220-240V. Smart modulation from 3200W to 13500W for maximum efficiency.
🔄
Dual PF3 Advanced Installation
Horizontal or vertical assembly with indoor Unit 1400mm. External static pressure of 150 Pa for complex applications.
🦠
nanoeTM X Mark 2 Advanced
Professional purification with 9.6 billion hydroxyl/second radicals. Essential for large spaces.
🔧
Maximum range 50m
Tubing up to 50m and 15/30m for remote applications in large spaces.
📱

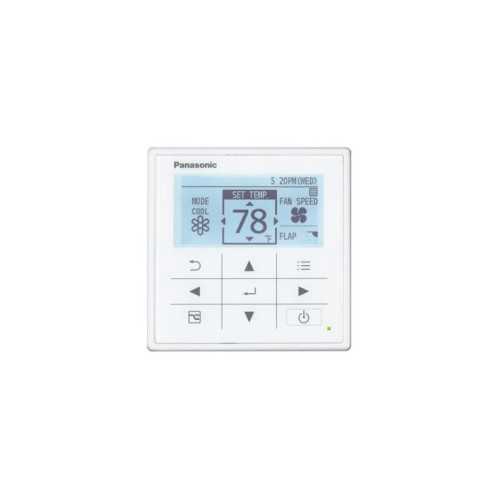

Advanced Professional Control
Compatible with BMS systems, centralized control and remote management for professional applications.
🌿
R32 Advanced Ecological
Refrigerant Gas R32 with low GWP. 2.80 kg load equivalent to 1.89 T CO2, optimized for ultra high power.
Technical Specifications Kit KIT-125PF3Z5
Refrigeration capacity
12.1 kW (3.2-13.5 kW)
Capacity Heating
12.1 kW (3.3-15.0 kW)
EER Nominal
3.40 (2.76-5.08)
COP Nominal
3.56 (3.16-5.24)
Seasonal efficiency
257,4% oceania
Efficient heating
142.6% oceania
Nominal consumption Cold
3.56 kW (0.63-4.90)
Nominal heat consumption
3.40 kW (0.63-4.74)
Refrigerant Gas R32
2.80 kg / 1.89 T CO2 Eq
Electrical supply
220-230-240 V
Operation range
-10°C to +43°C / -15°C to +24°C

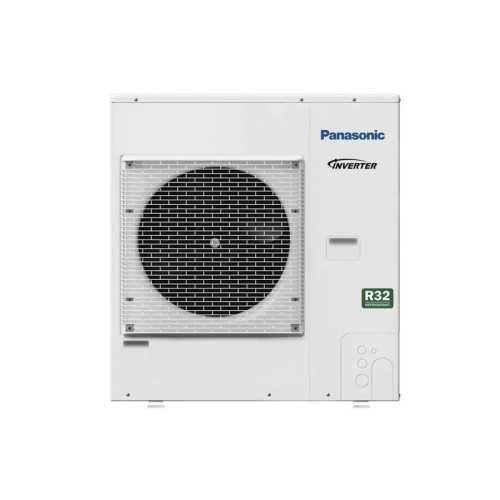

Русский Outdoor Unit U-125PZ3E5
Outdoor Unit Ultra High Power Condenser
Electrical supply
220-230-240 V
Intensity Cold
17,20-16,40-15,80 A
Intensity Calor
16,40-15,70-15,00 A
Cold Air/Calor
82.0/80.0 m3/min
Cold Sound Pressure/Calor
55/55 dB(A)
Frío/Calor Sonora Power
73/73 dB(A)
Dimensions (Al x An x Pr)
996x980x370 mm
Weight
87 kg
Liquid Tube
3/8" (9.52 mm)
Tubería Gas
5/8" (15.88 mm)
Range Longitude Tube
5-50 meters
Uneven Height (int./ext.)
15/30 meters
Competitive Advantages Ultra High Power
- ▷ Ultra High-Power Monophosic: 12100W without three-phase feeding, ideal for large spaces with standard power
- ▷ Higher Seasonal Efficiency: bolivarian 257.4% guarantees economic performance in ultra high power
- ▷ nanoeTM X Mark 2 Advanced: Essential professional purification for large spaces with high occupation
- ▷ Maximum range 50m: Tubing up to 50m for remote applications in large spaces
- ▷ Indoor Unit 1400mm: Larger airflow and advanced performances
- ▷ Professional Control: Compatible with BMS systems and centralized control for advanced management
- ▷ Included Drining Pump: No additional cost, increased moisture disposal capacity (4.1 L/h)
- ▷ R32 Advanced: Refrigerant Gas optimized for ultra high power intensive use
Es Ideal applications
▪
Large dwellings
Villas • Single Houses • Duplex
Villas • Single Houses • Duplex
🏢
Corporate offices
Complete plants • Executive spaces
Complete plants • Executive spaces
🏪
Great Trades
Supermarkets • Shopping centers
Supermarkets • Shopping centers
🏥
Health Centres
Clinics • Medical centers • Laboratories
Clinics • Medical centers • Laboratories
🏫
Educational centres
Colleges • Academies • Libraries
Colleges • Academies • Libraries
🏨
Hotel
Hotels • Tourist apartments
Hotels • Tourist apartments
️
Sports Centres
Gyms • Wellness Centres • Spas
Gyms • Wellness Centres • Spas
️
Restoration
Restaurants • Dining rooms • Catering
Restaurants • Dining rooms • Catering
Request Your Ultra High Power Uncompromised Budget!
Air conditioning Panasonic KIT-125PF3Z5 Ultra High Power with professional service included.
▷ Price transparent − Official guarantee ▷✅ Technical service ▷✅ Ultra high power solution
Specifications Indoor Unit S-1014PF3E
Indoor Unit Ultra High Power Conduct
External Static Pressure
50 Pa (10-150 Pa)
Alto/Med/Bajo Air Force
34,0/29,0/23,0 m3/min
Volume Eliminated Humidity
4.1 L/h
High/Med/Bajo Sonic Pressure
35/31/27 dB(A)
High/Med/Bajo Sonora Power
58/54/50 dB(A)
Dimensions (Al x An x Pr)
250x1400x730 mm
Weight
39 kg
nanoeTM X Generator
Mark 2
KIT-125PF3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PF3E
- Outdoor Unit
- U-125PZ3E5
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 12.099
- Refrigerator capacity (kcal / h)
- 10.405
- Nominal consumption Cold (W)
- 3.560
- Heat capacity (W)
- 12.099
- Heat capacity (Kcal / h)
- 10.405
- Nominal heat consumption (W)
- 3.400
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 39,0
- Weight Outdoor Unit (Kg)
- 87,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 100m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 730 x 250
- EU dimensions (anxfxh) mm
- 980 x 370 x 996
