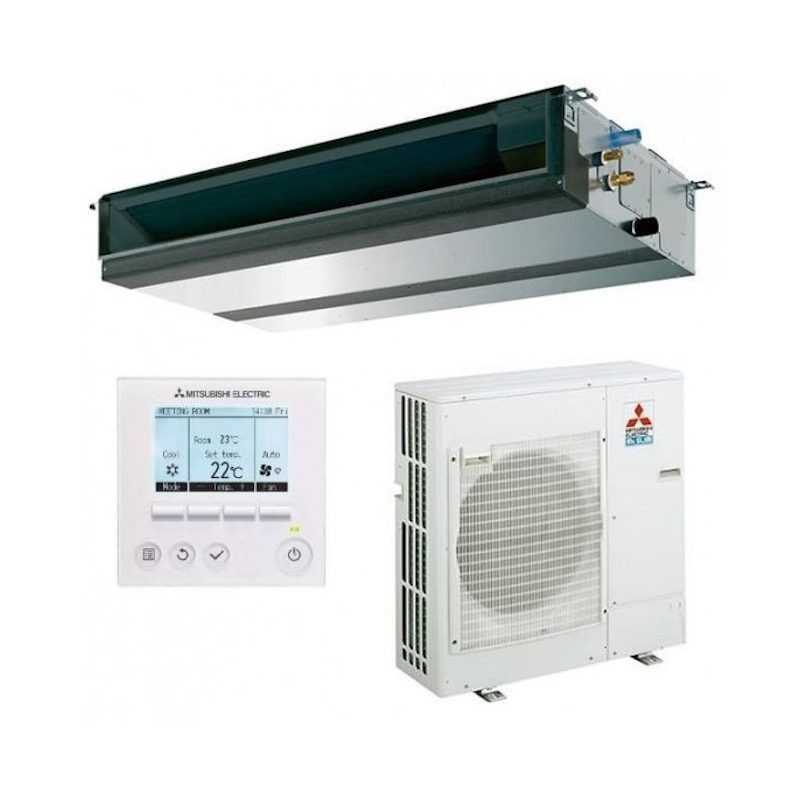

Air Conditioning Mitsubishi Electric MSPEZ-50VJA
Refrigeration 5000W 日本語 Heating 6000W 日本語 Efficiency A++ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-50VJA is the efficient solution of the Standard Inverter series with 5000W in cooling and 6000W heating. With indoor Unit only 250mm high, this hidden duct system offers powerful and discrete air conditioning for medium spaces that require high energy performance and advanced control.
5️ 5000W Refrigeration
EER 3.70 - Efficient
Calefacción 6000W Heating
COP 4,10 - Excellent
▪ SEER 6,3 / SCOP 4,2
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M50JA
Outdoor Unit: SUZ-M50VA
Air flow: 12,0-17,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 26 dBA
Annual consumption: 277 kWh/year
Refrigerant Gas: R-32 (1.20 kg)
PAR-41MAA Command: Advanced control
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MSPEZ-50VJA Standard Inverter Single-Phase Ducted
Referencia: MSPEZ-50VJA
€1,952.53
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MSPEZ-50VJA
Refrigeration 5000W 日本語 Heating 6000W 日本語 Efficiency A++ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-50VJA is the efficient solution of the Standard Inverter series with 5000W in cooling and 6000W heating. With indoor Unit only 250mm high, this hidden duct system offers powerful and discrete air conditioning for medium spaces that require high energy performance and advanced control.
5️ 5000W Refrigeration
EER 3.70 - Efficient
Calefacción 6000W Heating
COP 4,10 - Excellent
▪ SEER 6,3 / SCOP 4,2
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M50JA
Outdoor Unit: SUZ-M50VA
Air flow: 12,0-17,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 26 dBA
Annual consumption: 277 kWh/year
Refrigerant Gas: R-32 (1.20 kg)
PAR-41MAA Command: Advanced control
Security policy
Delivery policy
Refund policy
Mitsubishi Electric MSPEZ-50VJA
Ducted Air Conditioner 5000W Standard Series Inverter
Balanced Power Standard Series
The MSPEZ-50VJA combines power and efficiency with advanced Inverter technology. With 5000W in cooling and 6000W heating, offers complete air conditioning for medium spaces. Your rating SEER 6,3 A++ ensures efficient consumption of only 277 kWh/year, ideal for surfaces of 40-60m2.
R32 Advanced Technology
Equipped with refrigerant R32, significantly reduces environmental impact. The load 1,20 kg optimize efficiency while minimizing emissions. Its ecological design meets the most demanding European standards and ensures long-term sustainable operation.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 5000W
- • Operation Range: 1.7-5.6 kW
- • EER: 3.70 (Excellent)
- • SEER: 6.3 A++ (Ultraefficient)
- • Consumption: 1.35 kW nominal
Performance Heating
- • Nominal power: 6000W
- • Operation Range: 1.5-7.2 kW
- • COP: 4,10 (Excellent)
- • SCOP: 4.2 A+ (High Efficiency)
- • Consumption: 1.46 kW nominal
S Technical characteristics
- • Indoor Unit: PEAD-M50JA
- • Outdoor Unit: SUZ-M50VA
- • Dimensions: 250x900x732mm
- • Interior weight: 26.5 kg
- • Tuberia: Ø6,35/12,7mm
Y️ Control and Functionality
- • PAR-41MAA Command: Advanced control
- • Air flow: 12,0-17,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 26-35 dBA
- • Food: 230V/1~ 14,9A
▼ Optimized Annual Summary
Only 277 kWh/year cooling Δ 1417 kWh/year heating
Maximum energy saving with Inverter Standard Series technology
Installation and Dimensions Standard Series

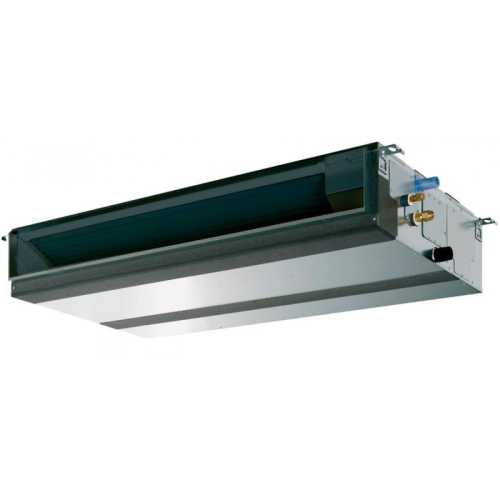

📐 Indoor Unit PEAD-M50JA
- • Dimensions: 250 x 900 x 732 mm
- • Compact height: Only 250mm
- • Weight: 26.5 kg (comfortable handle)
- • Air flow: 12,0-14,5-17,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 26-31-35 dBA

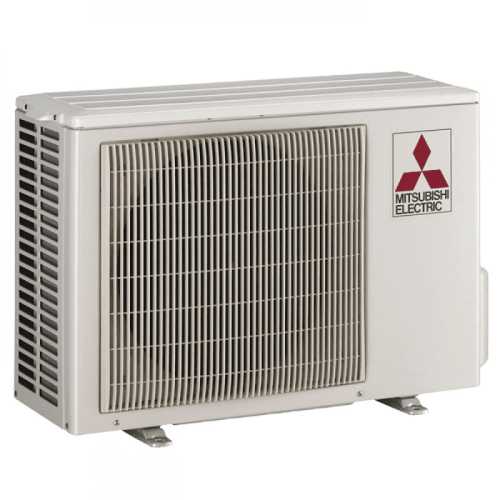

🏢 Outdoor Unit SUZ-M50VA
- • Dimensions: 714 x 800 x 285 mm
- • Weight: 41 kg (robusta)
- • Air flow: 46 m3/min
- • Sound level: 48 dBA
- • Food: 230V/1~ - 14,9A
- • Operation range: -15°C to +46°C

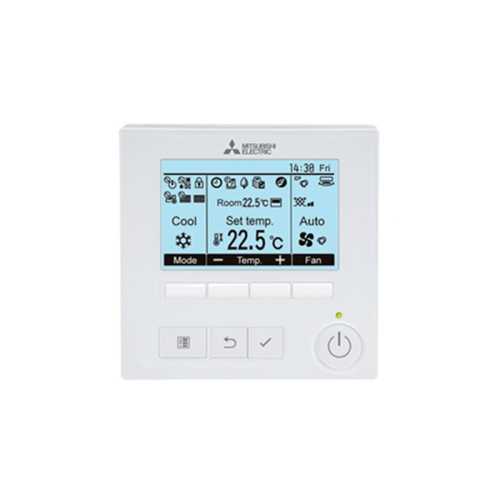

️ PAR-41MAA Advanced Control
Includes command PAR-41MAA with comprehensive control of the system. Advanced weekly programming, precision temperature control, intelligent automatic modes and energy monitoring. Compatible with optional WiFi automation and control systems.
Featured functions: Programming 7 days, Multizone Control, Automatic Eco Mode, Advanced Diagnosis
Y Connectivity and Expansion
System prepared for complete home integration. Optional WiFi connection MAC-587IF for remote control by smartphone. Interface M-NET for integration with centralized energy management systems and smart buildings.
Available options: Smart WiFi, centralized M-NET, External signals, Remote temperature sensor
Y️ Installation and Maintenance
Requirements Installation
- • Tuberia: Ø6,35/12,7mm
- • Max length: 30m total / 30m vertical
- • Electrical connection: 230V/1~ monophasic
- • Minimum space: According to installation standards
S️ Included Protections
- • Condensing control: Incorporated
- • Dehydrator filter: Standard series
- • Overload protection: Automatic
- • Self-diagnosis: Complete system
Gos️ Rangos Operation
- • Refrigeration: -15°C to +46°C ext.
- • Heating: -10°C to +24°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Y Warranty and Certifications
Warranty Mitsubishi Electric 日本語 CE Certification Cumple ErP 2021
Japanese quality with specialized technical support and national service network
▷ Includes in the Price
- • Indoor Unit PEAD-M50JA
- • Outdoor Unit SUZ-M50VA
- • PAR-41MAA
- • Basic installation kit
S Unique benefits
- • Warranty Mitsubishi Electric
- • Professional installation available
- • Specialized technical support
- • Certified A++ Efficiency
Equilibrated Power Available!
MSPEZ-50VJA with Inverter technology and efficiency A++ - Powerful Standard Series
🎯 Spaces: 40-60m2
▪ Consumption: 277 kWh/year
🌿 Gas: R32 Ecological
📱 Control: PAR-41MAA
MSPEZ-50VJA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-M50JA
- Outdoor Unit
- SUZ-M50VA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.350
- Energy class (cold)
- A++
- SEER
- 6,3
- Heat capacity (W)
- 6.000
- Heat capacity (Kcal / h)
- 5.160
- Nominal heat consumption (W)
- 1.460
- Energy class (heat)
- A+
- SCOP
- 4,2
- Minimum sound pressure UI DB
- 26
- Weight Indoor Unit (Kg)
- 26,5
- Weight Outdoor Unit (Kg)
- 41,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 40m2 aprox.
- Dimensions UI (ANXFXH) mm
- 900 x 732 x 250
- EU dimensions (anxfxh) mm
- 800 x 285 x 714
