Air Conditioning Samsung AC071RNMDKG/EU
Refrigeration 6800W 日本語 Heating 8000W ̄s Efficiency A++ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC071RNMDKG/EU is the powerful solution of the Deluxe Series of Conduct with 6800W in refrigeration and 8000W heating. With indoor Unit only 250mm high, this hidden duct system offers robust and discrete air conditioning for medium-large spaces with advanced technology Samsung and optimized static pressure control.
6️ 6800W Refrigeration
EER 2,93 - Powerful
Calefacción 8000W Heating
COP 3,20 - Excellent
▪ SEER 6,1 / SCOP 4,0
Efficiency A+ / A+
Compact 250mm
Deluxe Conduct
Specifications Key Conduct Deluxe Samsung
Indoor Unit: AC071RNMDKG/EU
Outdoor Unit: AC071RXADKG/EU
Air flow: 11,0-17,0 m3/min
Static pressure: 0-147 Pa
Sonic Pressure: 24 dBA
Tactile control: MWR-SH11N
Nominal consumption: 2,3 kW cold
Refrigerant Gas: R-32 (1.7 kg)
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Samsung KIT-071MDKG Inverter Deluxe Monof.
Referencia: F-AC071MDKG
€1,307.59
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Samsung AC071RNMDKG/EU
Refrigeration 6800W 日本語 Heating 8000W ̄s Efficiency A++ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC071RNMDKG/EU is the powerful solution of the Deluxe Series of Conduct with 6800W in refrigeration and 8000W heating. With indoor Unit only 250mm high, this hidden duct system offers robust and discrete air conditioning for medium-large spaces with advanced technology Samsung and optimized static pressure control.
6️ 6800W Refrigeration
EER 2,93 - Powerful
Calefacción 8000W Heating
COP 3,20 - Excellent
▪ SEER 6,1 / SCOP 4,0
Efficiency A+ / A+
Compact 250mm
Deluxe Conduct
Specifications Key Conduct Deluxe Samsung
Indoor Unit: AC071RNMDKG/EU
Outdoor Unit: AC071RXADKG/EU
Air flow: 11,0-17,0 m3/min
Static pressure: 0-147 Pa
Sonic Pressure: 24 dBA
Tactile control: MWR-SH11N
Nominal consumption: 2,3 kW cold
Refrigerant Gas: R-32 (1.7 kg)
Security policy
Delivery policy
Refund policy
Samsung AC071RNMDKG/EU
Ducted Air Conditioner 6800W Deluxe Conduct Series
High Power Deluxe
The AC071RNMDKG/EU represents the high power of technology Samsung Deluxe driver with 6800W in refrigeration and 8000W heating. Equipped with 450-step electronic expansion valve (EEV) for precise refrigerant control and variable static pressure of 0-147 Pa. Your rating SEER 6,1 A++ guarantees superior energy efficiency for spaces of 50-70m2.
Optimized R32 Technology
Use coolant R32 of new generation, significantly reducing the environmental impact. The load 1.7 kg is optimized for this higher power, ensuring maximum efficiency while minimizing emissions. It includes Auto Restart function that automatically restarts the system after power cuts, ensuring operational continuity.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 6800W
- • Operation Range: 1.5-8.7 kW
- • EER: 2,93 (Excellent)
- • SEER: 6.1 A++ (Ultraefficient)
- • Nominal consumption: 2.3 kW
Performance Heating
- • Nominal power: 8000W
- • Operation Range: 1,9-9,0 kW
- • COP: 3,20 (Excellent)
- • SCOP: 4.0 A+ (High Efficiency)
- • Nominal consumption: 2.5 kW
S Technical characteristics
- • Indoor Unit: AC071RNMDKG/EU
- • Outdoor Unit: AC071RXADKG/EU
- • Dimensions: 850x250x700mm
- • Interior weight: 26.5 kg
- • Tuberia: Ø1/4" - 5/8"
Y️ Control and Functionality
- • Tactile control: MWR-SH11N
- • Air flow: 11,0-17,0 m3/min
- • Static pressure: 0-147 Pa variable
- • Sound level: 24-30 dBA
- • Food: 220-240V/1~
▼ Advanced technology Samsung
450-step EEV valve Δ Static pressure 0-147 Pa Δ Auto Restart
High power optimized with technology Samsung Latest generation Deluxe Drive
Installation and Dimensions Conduct Deluxe

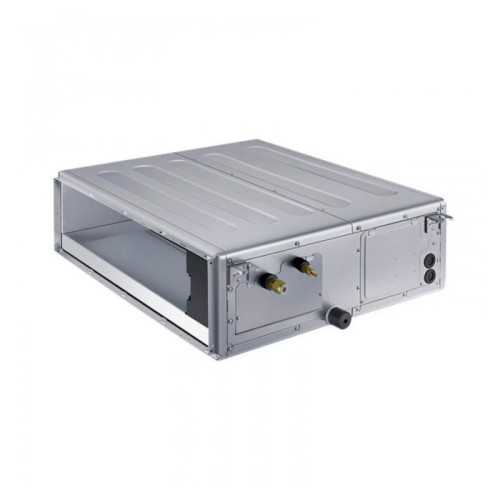

📐 Indoor Unit AC071RNMDKG/EU
- • Dimensions: 850 x 250 x 700 mm
- • Ultra compact height: Only 250mm
- • Weight: 26.5 kg (comfortable handle)
- • Air flow: 11,0-14,0-17,0 m3/min
- • Static pressure: 0-147 Pa variable
- • Sound level: 24-27-30 dBA

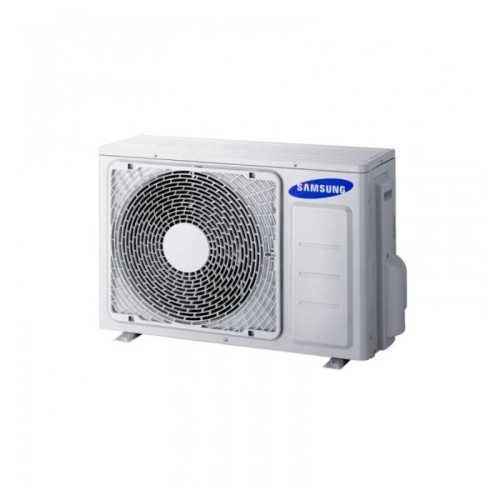

🏢 Outdoor Unit AC071RXADKG/EU
- • Dimensions: 880 x 798 x 310 mm
- • Weight: 51.0 kg (robusta)
- • Sound level: 49-51 dBA
- • Food: 220-240V/1~
- • Max intensity: 20A
- • Protection: External IPX4

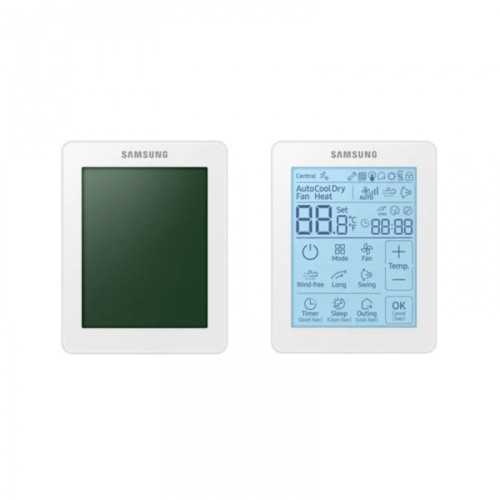

️ Control Táctil MWR-SH11N
Includes touch control MWR-SH11N with LCD display and intuitive navigation for high power control. Advanced weekly programming, precision temperature control and multiple optimized operating modes. Optional Wi-Fi kit compatible MIM-H04EN for remote control by smartphone.
Featured functions: LCD touch screen, variable static pressure control, optional Wi-Fi
Y Connectivity and Accessories
System prepared for accessories Samsung high power. Wi-Fi Kit MIM-H04EN for smartphone control, optional drain pump MDP-G075SP/SQ with elevation of 750mm, and optional SPi ionizer MSD-CAN1 for advanced air purification.
Accessories available: Wi-Fi Kit, SPi Ionizer, External Termostato
Y️ Installation and Advanced Features
Requirements Installation
- • Liquid pipe: Ø1/4" (6,35mm)
- • Gas pipe: Ø5/8" (15.88mm)
- • Max length: 50m total / 30m vertical
- • Disclaimer: VP25 (Ext.32, Int.25mm)
Das️ Advanced Features
- • EV valve: 450 steps precision
- • Permanent filter: Laundry included
- • Auto Restart: Automatic reinstatement
- • Variable pressure: 0-147 Pa adaptable
Gos️ Rangos Operation
- • Refrigeration: -15°C to +50°C ext.
- • Heating: -15°C to +24°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Y Warranty and Certifications Samsung
Warranty Samsung Certified CE Δ Cumple ErP 2019
Korean quality with specialized technical support and national service network
Alta High Power with AC071RNMDKG/EU
6800W robust air conditioning with maximum A++ efficiency and MWR-SH11N touch control
️
SEER 6,1 A++
Ultra-efficient Samsung
🔥
COP 3,20
Powerful 8000W heating
🔇
24 dBA Silent
Ultrasilious operation
📏
250mm Compact
Discreet Deluxe Conduct
A️ MWR-SH11N Tactile Control + EEV valve
Advanced LCD touch control • Electronic expansion valve 450 steps • Variable static pressure 0-147 Pa • Refrigerant Gas Ecological R32 • Washable permanent filter • Auto Restart • Spaces 50-70m2
▷ Includes in the Price
- • Indoor Unit AC071RNMDKG/EU
- • Outdoor Unit AC071RXADKG/EU
- • MWR-SH11N Tactile Control
- • Washable permanent filter
S Unique benefits
- • Warranty Samsung
- • Professional installation available
- • Specialized technical support
- • Deluxe Conduct Technology
▪ High Power Available!
AC071RNMDKG/EU with EEV valve and A++ efficiency - Deluxe driver Samsung
🎯 Spaces: 50-70m2
▪ Consumption: 2.3 kW nominal
🌿 Gas: R32 Ecological
️ Control: Touch MWR-SH11N
🏆 Samsung Conduct Deluxe AC071RNMDKG/EU
Robust air conditioning with Korean technology • MWR-SH11N Touch Control included • Available professional installation
F-AC071MDKG
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC071RNMDKG
- Outdoor Unit
- AC071RXADKG
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 7.100
- Refrigerator capacity (kcal / h)
- 6.106
- Nominal consumption Cold (W)
- 2.300
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 8.000
- Heat capacity (Kcal / h)
- 6.880
- Nominal heat consumption (W)
- 2.500
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 24
- Weight Indoor Unit (Kg)
- 26,5
- Weight Outdoor Unit (Kg)
- 51,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Wifi Opcional con módulo MIM-H04EN
- Recommended area
- Estancia de 60m2 aprox.
- Dimensions UI (ANXFXH) mm
- 850 x 700 x 250
- EU dimensions (anxfxh) mm
- 880 x 310 x 798
