Air Conditioning by Inverter Conducts with Heat Pump LG series Great Capacity model UB85/UU85W with three-phase feeding at 380v and a 19,780 fridge power
High Pressure conduit equipment designed for large areas such as bars, restaurants, cafes, gyms, libraries, etc... Efficient equipment with great durability.
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

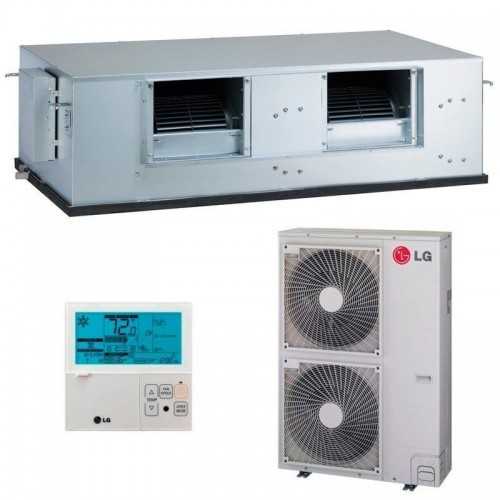

Ducted Air Conditioner High Pressure LG UB85 TRIFÁSICA
Referencia: KITCONDUB85
€5,705.69
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning by Inverter Conducts with Heat Pump LG series Great Capacity model UB85/UU85W with three-phase feeding at 380v and a 19,780 fridge power
High Pressure conduit equipment designed for large areas such as bars, restaurants, cafes, gyms, libraries, etc... Efficient equipment with great durability.
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioned by High Pressure Conduct LG UB85 TRIFÁSICA is a high-capacity industrial air conditioning system specifically designed for the most demanding commercial and industrial facilities that require maximum power, absolute reliability and constant performance. This equipment of the industrial range LG combines a nominal power of 22.4 kW in cold and 25.0 kW in heat with an exceptional modulant capacity ranging from 7.5 to 24.0 kW in cooling and from 8.0 to 27.5 kW in heating.

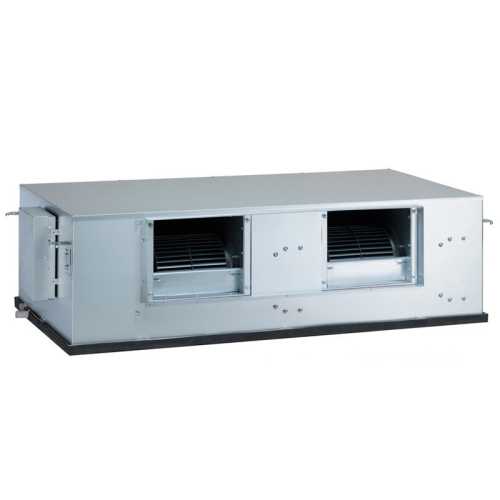

This three-phase system stands out for its robust construction designed for continuous operation in intensive applications, with static pressure up to 150 Pa and pipe lengths up to 50 meters. La indoor Unit, with industrial dimensions of 1,200 x 600 x 800 mm and weight of 115 kg, provides an airflow of up to 65 m3/min with controlled sound levels of 49/47/45 dB according to the selected speed, optimized for industrial environments where the yield premium on absolute silence.

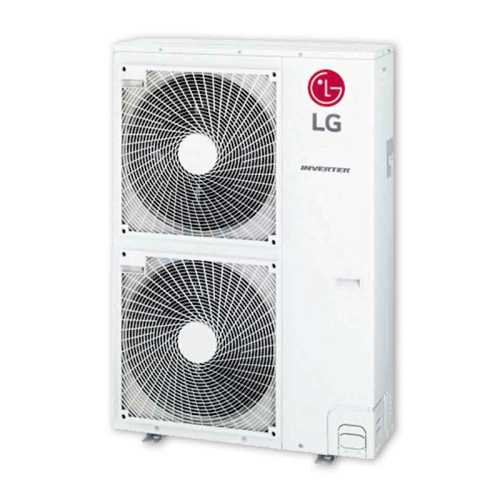

La outdoor Unit, with its industrial dimensions of 1,240 x 1.380 x 800 mm and weight of 291 kg, it incorporates robust high-performance technology with airflow of 280 m3/min to maximize thermal exchange in large-scale applications. With an extended range of operation ranging from -10°C to 48°C in cooling and from -20°C to 18°C in heating, this system uses 8.5 kg of R-410A coolant, ensuring maximum reliability and constant performance in the most demanding operating conditions that demand large-scale industrial and commercial installations.
Main features
🏭
Maximum Industrial Power
Rated power of 22.4 kW in cold and 25.0 kW in heat, with robust modulation from 7.5-24.0 kW in cooling and 8.0-27.5 kW in heating for large volumes.
▪
Robust Triphasic System
Three-phase food for maximum stability and efficiency in continuous industrial applications with high energy demands.
🔧
High Static Pressure
Up to 150 Maximum static pressure pa to overcome resistances in large ducts and complex industrial configurations.
💨
Elevado Industrial Caudal
Air flow up to 65 m3/min in the indoor Unit and 280 m3/min on the outside to air large industrial volumes.
📏
Extensive facilities
Maximum length of pipe up to 50 meters with a height of 30 meters, ideal for large industrial and commercial installations.
️
Refrigerant Gas R-410A Fiable
It uses R-410A coolant with 8.5 kg load for maximum reliability and constant performance in intensive industrial applications.
Technical Specifications
| Feature | Value |
|---|---|
| Model | UB85 TRIFÁSICA |
| Cold Capacity (Mín-Nom-Máx) | 7.5 - 22.4 - 24,0 kW |
| Heat capacity (Mín-Nom-Máx) | 8,0 - 25,0 - 27.5 kW |
| EER / COP | 2,79 / 3,01 |
| SEER / SCOP | 3,60 / 3,61 |
| Energy label ( Cold/Calor) | C/C |
| Food | Tripha |
| Dimensions Indoor Unit (AnxAlxProf) | 1,200 x 600 x 800 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 1.240 x 1.380 x 800 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 49 / 47 / 45 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 58 / 60 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 65 / 58 / 50 m3/min |
| Air flow rate Outdoor Unit | 280 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 80 / 150 Pa |
| Refrigerant Gas / Charge | R-410A / 8.5 kg |
| Length Tuberia (Min/Máx) | 5 / 50 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 115 kg |
| Weight Outdoor Unit | 291 kg |
Air Conditioning Benefits LG UB85 TRIFÁSICA
✓
Industrial solution for large installations
With 22.4 kW of nominal triphase power, it is ideal for industrial ships, large shopping centers, hospitals, large hotels and industrial spaces that require maximum capacity air conditioning with continuous operation and absolute reliability.
✓
Maximum flexibility in extensive facilities
With pipe lengths up to 50 meters, high static pressure (150 Pa) and large airflow (65 m3/min), it allows to air large industrial installations with complex configurations and multiple plants.
✓
Reliability and robustness for intensive use
The three-phase system with R-410A coolant and robust industrial construction ensures continuous operation in intensive applications, significantly reducing maintenance costs and stop times.
✓
Operation in extreme conditions
Its wide range of operation from -20°C to 48°C and robust construction allow efficient operation in extreme environmental conditions, ideal for demanding industrial applications throughout the year.
Why choose Air Conditioning LG UB85 TRIFÁSICA?
Main applications
🏭
Industrial ships
Industrial facilities, factories, large-scale warehouses and production spaces that require maximum capacity air conditioning with continuous operation.
🏢
Great Shopping Centres
Large surface shopping centers, hypermarkets and large commercial spaces that need high-capacity industrial air conditioning.
🏥
Hospitals and Hotels Grandes
Large-scale hospitals, high-capacity hotels and service buildings that require continuous industrial air conditioning with maximum reliability.
Installation Information
Important considerations:
- Triphasic system that requires proper industrial electrical installation and dimensioned for nominal power.
- Maximum length of pipe: 50 meters, with a maximum height of 30 meters between the inner and outer units.
- R-410A coolant preload for 30 meters of pipe, it is necessary to add 50 g/m for upper lengths.
- Industrial fridge connections: Liquid 15.88 mm (5/8") / Gas 28.58 mm (1-1/8") in both units.
- La outdoor Unit requires wide space due to its industrial dimensions (1,240 x 1,380 x 800 mm) and high weight (291 kg).
- La indoor Unit (115 kg) requires proper support structure for its weight and industrial dimensions.
- Installation is required by highly specialized technical staff in three-phase industrial systems and certified by LG to ensure proper functioning and maintain the validity of the industrial guarantee.
The ultimate industrial solution for maximum installations!
The Ducted Air Conditioner High Pressure LG UB85 TRIFÁSICA represents the highest industrial air conditioning capacity LG. With 22.4 kW of three-phase power, robust construction and absolute reliability, it is the definitive choice for large-scale industrial and commercial projects that demand maximum performance.
Request your custom budget today!
KITCONDUB85
Data sheet
- Brand
- LG
- Indoor Unit
- UB85.N95
- Outdoor Unit
- UU85W.U74
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 23.000
- Refrigerator capacity (kcal / h)
- 19.780
- Nominal consumption Cold (W)
- 8.190
- Heat capacity (W)
- 27.000
- Heat capacity (Kcal / h)
- 23.220
- Nominal heat consumption (W)
- 8.310
- Minimum sound pressure UI DB
- 40
- Weight Indoor Unit (Kg)
- 90,0
- Weight Outdoor Unit (Kg)
- 139,0
- Diameter Liquid pipe
- 1/2"
- Diameter Gas Pipe
- 7/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 80m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1563 x 791 x 458
- EU dimensions (anxfxh) mm
- 1090 x 380 x 1625
