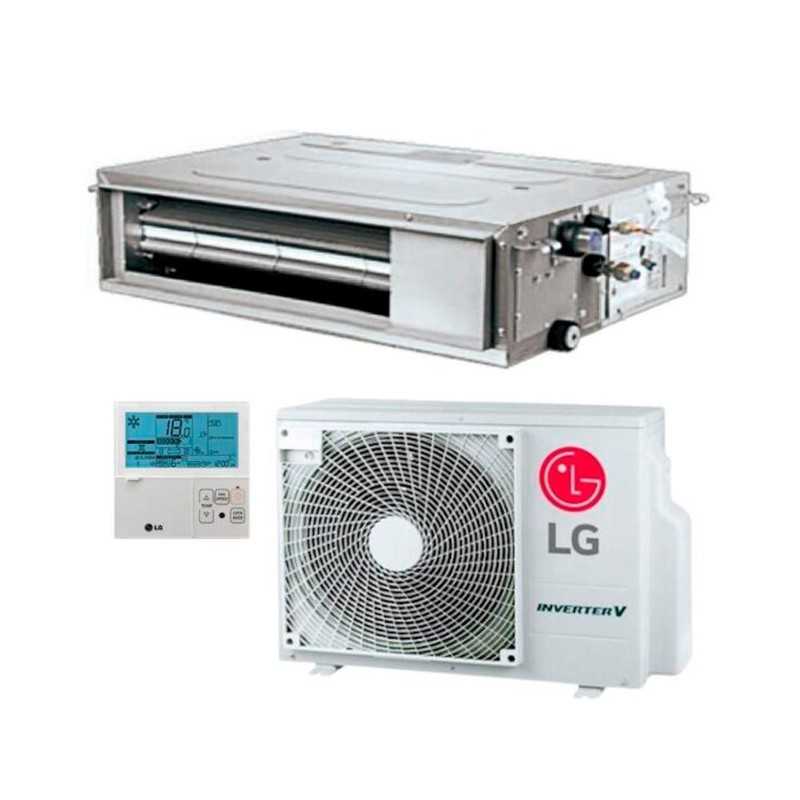

Ducted Air Conditioner LG CM24F CONFORT+ CM24F.NA0 + UUC1.U40
Air conditioning system with 6.8 kW of nominal capacity, designed for small-medium commercial spaces. This team of the CONFORT+ range combines excellent performance with energy efficiency A+/A+ and advanced technology, ideal for small offices, professional consultations, specialized clinics and spaces that require high quality professional air conditioning.
- ▷ Nominal power of 6.8 kW in cold and 7.4 kW in heat for medium-sized small spaces
- ▷ Modulant capacity of 2,70-7,50 kW cold and 3,00-8,20 kW heat
- ▷ Higher energy efficiency with SEER 5,70 and SCOP 4,10 (A+/A+)
- ▷ Static pressure up to 150 Pa for flexible installations
- ▷ Ultra silent operation with only 36/32/29 dB
- ▷ Horizontal/vertical installation and outdoor Unit robust
Reference: CM24F.NA0 + UUC1.U40
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG CM24F CONFORT+ CM24F.NA0 + UUC1.U40
Referencia: KITCONDCM24F_CONFORT+
€1,718.68
Tax included
Envío GRATIS en España (Península) a partir de 300€ + info
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Ducted Air Conditioner LG CM24F CONFORT+ CM24F.NA0 + UUC1.U40
Air conditioning system with 6.8 kW of nominal capacity, designed for small-medium commercial spaces. This team of the CONFORT+ range combines excellent performance with energy efficiency A+/A+ and advanced technology, ideal for small offices, professional consultations, specialized clinics and spaces that require high quality professional air conditioning.
- ▷ Nominal power of 6.8 kW in cold and 7.4 kW in heat for medium-sized small spaces
- ▷ Modulant capacity of 2,70-7,50 kW cold and 3,00-8,20 kW heat
- ▷ Higher energy efficiency with SEER 5,70 and SCOP 4,10 (A+/A+)
- ▷ Static pressure up to 150 Pa for flexible installations
- ▷ Ultra silent operation with only 36/32/29 dB
- ▷ Horizontal/vertical installation and outdoor Unit robust
Reference: CM24F.NA0 + UUC1.U40
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG CM24F CONFORT+ is a high-end air conditioning system designed to provide superior comfort in small and medium commercial spaces that require balanced power, exceptional reliability and maximum energy efficiency. This team of the prestigious Free Combination CONFORT+ range LG combines a nominal power of 6.8 kW in cold and 7.4 kW in heat with an exceptional modulant capacity ranging from 2.70 to 7.50 kW in cooling and from 3,00 to 8,20 kW in heating.

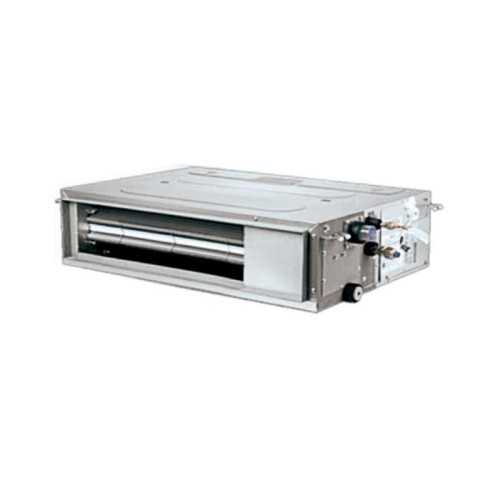

Composed of indoor Unit CM24F.NA0 and outdoor Unit UUC1.U40, this system stands out for its versatility of installation with static pressure up to 150 Pa and pipe lengths up to 50 meters. La indoor Unit, with compact dimensions of 900 x 245 x 700 mm, offers the unique flexibility of installation both horizontal and vertical through the ABDAMA0 accessory, providing an airflow of up to 18 m3/min with ultra silent sound levels of 36/32/29 dB according to the selected speed.

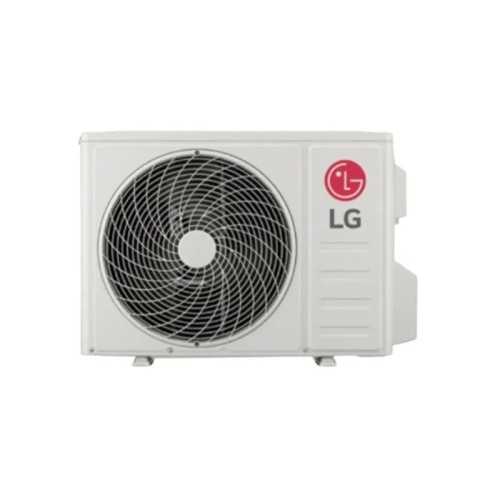

La outdoor Unit UUC1.U40, with its robust dimensions of 950 x 834 x 330 mm and weight of 59 kg, incorporates advanced technology to maximize thermal exchange by ensuring optimal performance in demanding commercial applications. With a range of operation ranging from -10°C to 48°C in cooling and from -15°C to 18°C in heating, this system uses 1.9 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising professional performance that demand the most demanding commercial applications.
Main features
🏢
Compact Commercial Power
Rated power of 6.8 kW in cold and 7.4 kW in heat, with intelligent modulation from 2.70-7.50 kW in cooling and 3.00-8.20 kW in heating.
🔄
Dual Premium installation
Horizontal or vertical installation capacity by ABDAMA0 accessory, with outdoor Unit robust UUC1.U40 for maximum reliability.
📐
Optimized Compact Design
Indoor Unit of 900x245x700 mm and weight of 27.9 kg, ideal for spaces with space limitations on the false ceiling.
🔇
Absolute Silence
Exceptional sound levels of 36/32/29 dB indoor Unit, practically unheard for noise-sensitive commercial environments.
🔌
Versatile Static Pressure
From 20 Pa (standard) to 150 Pa (maximum), allowing to adapt to different configurations of ducts and distributions.
🌱
Maximum Ecological Efficiency
Refrigerant Gas Organic R32 with A+/A+ rating and SEER 5,70 / SCOP 4,10 for maximum energy saving.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CM24F.NA0 + UUC1.U40 |
| Cold Capacity (Mín-Nom-Máx) | 2.70 - 6.80 - 7.50 kW |
| Heat capacity (Mín-Nom-Máx) | 3,00 - 7.40 - 8,20 kW |
| EER / COP | 2,91 / 3,41 |
| SEER / SCOP | 5,70 / 4,10 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 245 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 834 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 36 / 32 / 29 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 54 / 56 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 18 / 15 / 12 m3/min |
| Air flow rate Outdoor Unit | 50 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.9 kg |
| Length Tuberia (Min/Máx) | 5 / 50 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 27.9 kg |
| Weight Outdoor Unit | 59.0 kg |
| Vertical Installation | ABDAMA0 |
Air Conditioning Benefits LG CM24F CONFORT+
✓
Ideal for compact commercial spaces
With 6.8 kW of nominal power, it is perfect for small offices, medical consultations, specialized clinics, professional offices and small shops that require high quality professional air conditioning without oversize.
✓
Flexibility of premium installation
Horizontal or vertical installation capacity and outdoor Unit robust UUC1.U40 allows to adapt to any architectural configuration, even in spaces with strict limitations.
✓
Maximum energy efficiency
Advanced modulation technology and A+/A+ classification with SEER 5,70 and SCOP 4,10 ensure optimized energy consumption, significantly reducing long-term operating costs.
✓
Absolute acoustic comfort
Its ultra-silent sound levels (from 29 dB) guarantee a peaceful working environment, ideal for medical consultations, professional offices and spaces where silence is fundamental.
Why choose Air Conditioning LG CM24F CONFORT+?
Main applications
🏢
Small offices
Professional offices, small executive offices and studies that require ultra silent and efficient air conditioning during working days.
🏥
Specialized Medical Consultations
Medical consultations, specialized clinics and health centers that need ultra silent and comfortable environment for patients and health professionals.
️
Premium shops
Exclusive boutiques, jewellery and premium commercial spaces that require comfortable and quiet environment to improve the shopping experience of demanding customers.
Installation Information
Important considerations:
- La indoor Unit CM24F.NA0 allows both horizontal and vertical installation through the ABDAMA0 accessory.
- Maximum length of pipe: 50 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 55 g/m for upper lengths.
- Frigorific connections indoor Unit: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8").
- Frigorific connections outdoor Unit: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2").
- La outdoor Unit UUC1.U40 with robust dimensions (950x834x330 mm) ensures maximum reliability in commercial applications.
- Installation by specialized technical staff and certified by LG to ensure proper operation and maintain the validity of the premium CONFORT+ warranty.
The premium choice for compact commercial spaces that require excellence!
Air Conditioning by Conduct LG CM24F CONFORT+ combines compact power, total installation flexibility and A+/A+ energy efficiency to provide the ideal air conditioning solution for your professional business. Invest in technology LG CONFORT+ and guarantee maximum comfort with absolute silence.
Request your custom budget today!
KITCONDCM24F_CONFORT+
Data sheet
- Brand
- LG
- Indoor Unit
- CM24F.NA0
- Outdoor Unit
- UUC1.U40
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Fridge capacity (W)
- 6.800
- Fridge capacity (Kcal/h)
- 5.848
- Nominal consumption Cold (W)
- 1.950
- Energy class
- A++
- SEER
- 6,3
- Heating Capacity (W)
- 7.500
- Heating capacity (Kcal/h)
- 6.450
- Nominal heat consumption (W)
- 2.270
- Energy class (Calor)
- A
- SCOP
- 3,7
- Minimum sound pressure UI dB
- 29
- Weight Indoor Unit (Kg)
- 27,9
- Weight Outdoor Unit (Kg)
- 59,0
- Diameter Liquid Tubery
- 3/8"
- Diameter Gas Tuberia
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended surface
- Estancia de 45m2 aprox.
- IU dimensions (AnxFxH) mm
- 900 x 700 x 245
- EU dimensions (AnxFxH) mm
- 950 x 330 x 834
