Air Conditioning Mitsubishi Electric MSPEZ-71VJA
Refrigeration 7100W 日本語 Heating 8000W ̄s Efficiency A+ R-32 日本語 Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-71VJA is the high power solution of the Standard Inverter series with 7100W in cooling and 8000W heating. With indoor Unit only 250mm high, this hidden duct system offers powerful and discrete air conditioning for large spaces that require maximum performance and superior energy efficiency.
7️ 7100W Refrigeration
EER 3.50 - Powerful
Calefacción 8000W Heating
COP 3,71 - Excellent
▪ SEER 6,2 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M71JA
Outdoor Unit: SUZ-M71VA
Air flow: 17,5-25,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 26 dBA
Annual consumption: 397 kWh/year
Refrigerant Gas: R-32 (1.45 kg)
PAR-41MAA Command: Advanced control
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MSPEZ-71VJA Standard Inverter Single-Phase Ducted
Referencia: MSPEZ-71VJA
€2,325.37
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MSPEZ-71VJA
Refrigeration 7100W 日本語 Heating 8000W ̄s Efficiency A+ R-32 日本語 Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-71VJA is the high power solution of the Standard Inverter series with 7100W in cooling and 8000W heating. With indoor Unit only 250mm high, this hidden duct system offers powerful and discrete air conditioning for large spaces that require maximum performance and superior energy efficiency.
7️ 7100W Refrigeration
EER 3.50 - Powerful
Calefacción 8000W Heating
COP 3,71 - Excellent
▪ SEER 6,2 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M71JA
Outdoor Unit: SUZ-M71VA
Air flow: 17,5-25,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 26 dBA
Annual consumption: 397 kWh/year
Refrigerant Gas: R-32 (1.45 kg)
PAR-41MAA Command: Advanced control
Security policy
Delivery policy
Refund policy
Mitsubishi Electric MSPEZ-71VJA
Ducted Air Conditioner 7100W Standard Inverter Series
M Maximum Power Standard Series
The MSPEZ-71VJA represents the maximum power of the Standard Series with advanced Inverter technology. With 7100W in cooling and 8000W heating, provides complete air conditioning for large and demanding spaces. Your rating SEER 6,2 A++ maintains controlled consumption 397 kWh/year, ideal for surfaces of 60-85m2.
Tecnología High Performance R32 Technology
Equipped with refrigerant R32, maximizes efficiency in high-power applications. The load 1.45 kg is optimized for this higher power, ensuring sustainable and efficient operation. Its advanced ecological design meets the most demanding European ErP regulations.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 7100W
- • Operation Range: 2,2-8.1 kW
- • EER: 3.50 (Excellent)
- • SEER: 6.2 A++ (Ultraefficient)
- • Consumption: 2.02 kW nominal
Performance Heating
- • Nominal power: 8000W
- • Operation Range: 2.0-10.2 kW
- • COP: 3.71 (Excellent)
- • SCOP: 4.1 A+ (High Efficiency)
- • Consumption: 2.15 kW nominal
S Technical characteristics
- • Indoor Unit: PEAD-M71JA
- • Outdoor Unit: SUZ-M71VA
- • Dimensions: 250x1100x732mm
- • Interior weight: 29.5 kg
- • Tuberia: Ø9,52/15,88mm
📱Control and Functionality
- • PAR-41MAA Command: Advanced control
- • Air flow: 17,5-25,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 26-34 dBA
- • Food: 230V/1~ 16.8A
▼ Optimized Annual Summary
Only 397 kWh/year in refrigeration 1973 kWh/year in heating
High power optimized with advanced Standard Series technology
Installation and Dimensions Standard Series

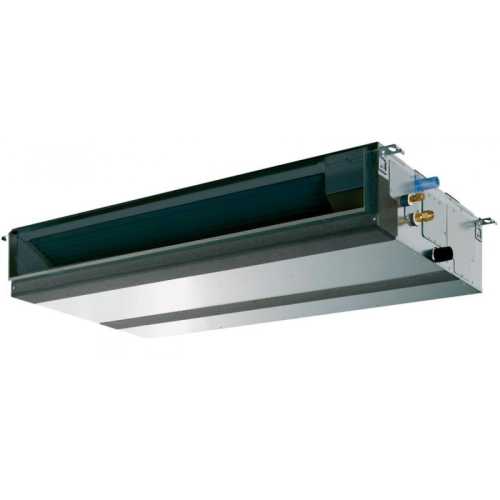

📐 Indoor Unit PEAD-M71JA
- • Dimensions: 250 x 1100 x 732 mm
- • Compact height: Only 250mm
- • Weight: 29.5 kg (robust)
- • Air flow: 17,5-21,0-25,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 26-30-34 dBA

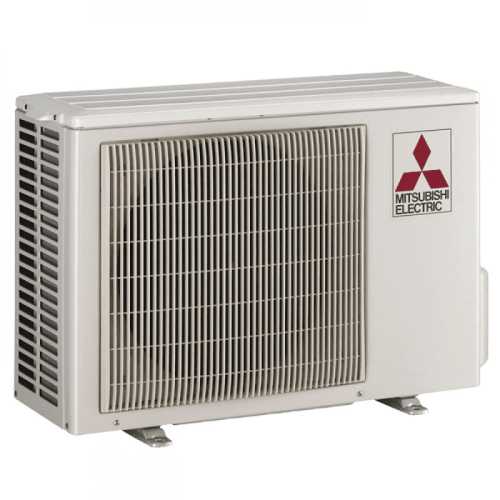

🏢 Outdoor Unit SUZ-M71VA
- • Dimensions: 880 x 840 x 330 mm
- • Weight: 55 kg (resistent)
- • Air flow: 50 m3/min
- • Sound level: 49 dBA
- • Food: 230V/1~ - 16.8A
- • Operation range: -15°C to +46°C

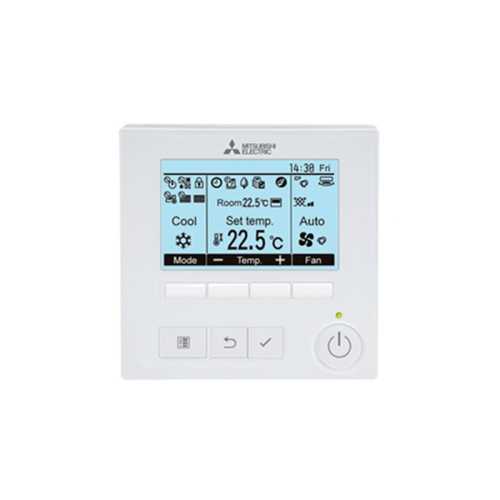

📱PAR-41MAA Advanced Control
Includes command PAR-41MAA with comprehensive control of the high-power system. Full weekly programming, precision temperature control, intelligent automatic modes and advanced energy monitoring. Compatible with optional WiFi automation and control systems for maximum control.
Featured functions: Programming 7 days, Multizone Control, Automatic Eco Mode, Full Diagnosis
Y Connectivity and Expansion
System prepared for advanced home integration. Optional WiFi connection MAC-587IF for full remote control by smartphone. Interface M-NET for integration with centralized energy management systems and high-power intelligent buildings.
Available options: Smart WiFi, centralized M-NET, External signals, Remote temperature sensor
Y️ Installation and Maintenance
Requirements Installation
- • Tuberia: Ø9,52/15,88mm
- • Max length: 30m total / 30m vertical
- • Electrical connection: 230V/1~ monophasic
- • Minimum space: According to installation standards
S️ Included Protections
- • Condensing control: Incorporated
- • Dehydrator filter: Standard series
- • Overload protection: Automatic
- • Self-diagnosis: Complete system
Gos️ Rangos Operation
- • Refrigeration: -15°C to +46°C ext.
- • Heating: -10°C to +24°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Y Warranty and Certifications
Warranty Mitsubishi Electric 日本語 CE Certification Cumple ErP 2021
Japanese quality with specialized technical support and national premium service network
El Maximum Power with MSPEZ-71VJA
Superior power of 7100W with maximum efficiency A++ and advanced control PAR-41MAA
️
SEER 6,2 A++
Optimized 397 kWh/year
🔥
COP 3.71
Higher heating 8000W
🔇
26 dBA Silent
Ultrasilious operation
📏
250mm Compact
Standard discreet series
📱PAR-41MAA Control Include + Ecological R32
Advanced command with weekly programming • Refrigerant Gas R32 reduced environmental impact • Japanese Inverter technology • Installation occult ducts • Spaces 60-85m2

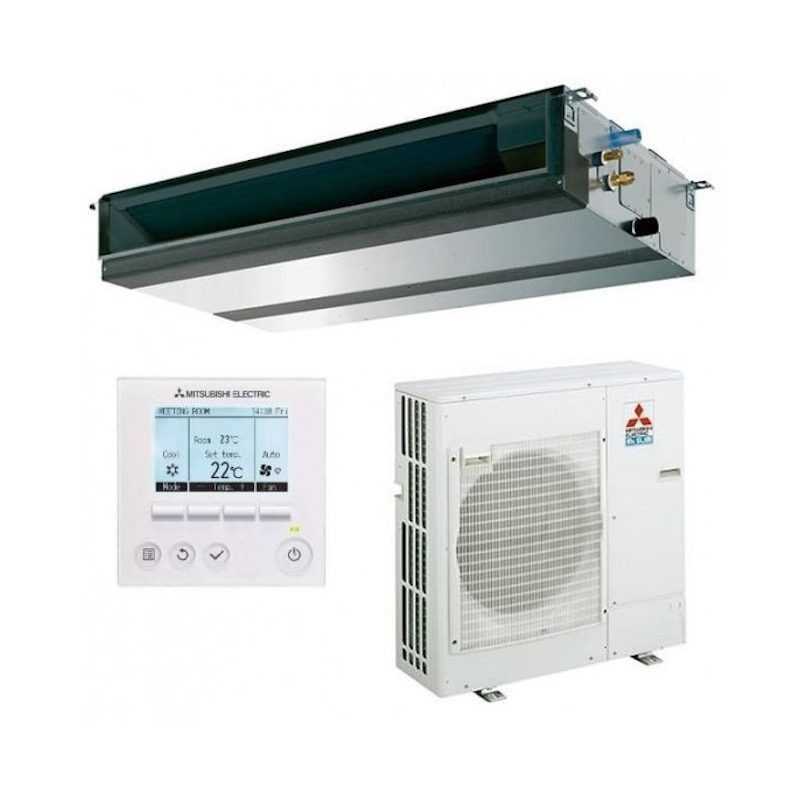

▷ Includes in the Price
- • Indoor Unit PEAD-M71JA
- • Outdoor Unit SUZ-M71VA
- • PAR-41MAA
- • Basic installation kit
S Unique benefits
- • Warranty Mitsubishi Electric
- • Professional installation available
- • Specialized technical support
- • Certified A++ Efficiency
Maximum Power Available!
MSPEZ-71VJA with Inverter technology and efficiency A++ - Superior Standard Series
🎯 Spaces: 60-85m2
▪ Consumption: 397 kWh/year
🌿 Gas: R32 Ecological
📱 Control: PAR-41MAA
🏆 Mitsubishi Electric Standard MSPEZ-71VJA series
Superior air conditioning with Japanese technology • Advanced control PAR-41MAA included • Professional installation available
MSPEZ-71VJA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-M71JA
- Outdoor Unit
- SUZ-M71VA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 7.093
- Refrigerator capacity (kcal / h)
- 6.100
- Nominal consumption Cold (W)
- 2.020
- Energy class (cold)
- A++
- SEER
- 6,2
- Heat capacity (W)
- 8.000
- Heat capacity (Kcal / h)
- 6.880
- Nominal heat consumption (W)
- 2.150
- Energy class (heat)
- A+
- SCOP
- 4.1
- Minimum sound pressure UI DB
- 26
- Weight Indoor Unit (Kg)
- 29,5
- Weight Outdoor Unit (Kg)
- 55,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 60m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1100 x 732 x 250
- EU dimensions (anxfxh) mm
- 840 x 330 x 880
