Air Conditioning Mitsubishi Electric MSPEZ-125VJA
Refrigeration 12100W Δ Heating 13500W 日本語 Efficiency A Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-125VJA is the ultra high power solution of the Standard Inverter series with 12100W in cooling and 13500W heating. With indoor Unit only 250mm high, this system of occult ducts offers industrial and discrete air conditioning for very large spaces that require maximum monophasic energy performance.
12️ 12100W Refrigeration
EER 3,01 - Ultra Powerful
13 13500W Heating
COP 3,61 - Excellent
▪ SEER 5.3 / SCOP 3,8
Efficiency A/A
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M125JA
Outdoor Unit: PUZ-M125VKA
Air flow: 29.5-42,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 33 dBA
Annual consumption: 792 kWh/year
Refrigerant Gas: R-32 (3.60 kg)
PAR-41MAA Command: Advanced control
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MSPEZ-125VJA Standard Inverter Single-Phase Ducted
Referencia: MSPEZ-125VJA
€3,902.38
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MSPEZ-125VJA
Refrigeration 12100W Δ Heating 13500W 日本語 Efficiency A Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-125VJA is the ultra high power solution of the Standard Inverter series with 12100W in cooling and 13500W heating. With indoor Unit only 250mm high, this system of occult ducts offers industrial and discrete air conditioning for very large spaces that require maximum monophasic energy performance.
12️ 12100W Refrigeration
EER 3,01 - Ultra Powerful
13 13500W Heating
COP 3,61 - Excellent
▪ SEER 5.3 / SCOP 3,8
Efficiency A/A
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M125JA
Outdoor Unit: PUZ-M125VKA
Air flow: 29.5-42,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 33 dBA
Annual consumption: 792 kWh/year
Refrigerant Gas: R-32 (3.60 kg)
PAR-41MAA Command: Advanced control
Security policy
Delivery policy
Refund policy
Mitsubishi Electric MSPEZ-125VJA
Ducted Air Conditioner 12100W Standard Inverter Monophase Series
Ultra High Power Standard Series
The MSPEZ-125VJA represents the ultra high power of the Standard Series with advanced monophasic Inverter technology. With 12100W in cooling and 13500W heating, provides complete air conditioning for large industrial and commercial spaces. Your rating SEER 5.3 A maintains efficiency 792 kWh/year, ideal for surfaces of 100-150m2.
Tecnología Technology R32 Ultra Power
Equipped with refrigerant R32, optimizes efficiency in ultra-high power applications. The load 3,60 kg is dimensioned for this higher power, ensuring sustainable operation in demanding industrial applications. Its ecological design complies with the most advanced European ErP regulations.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 12100W
- • Operation Range: 6.0-13.0 kW
- • EER: 3,01 (Excellent)
- • SEER: 5.3 A (Efficient)
- • Consumption: 4.01 kW nominal
Performance Heating
- • Nominal power: 13500W
- • Operation Range: 4.1-15.0 kW
- • COP: 3.61 (Excellent)
- • SCOP: 3.8 A (High Efficiency)
- • Consumption: 3.73 kW nominal
S Technical characteristics
- • Indoor Unit: PEAD-M125JA
- • Outdoor Unit: PUZ-M125VKA
- • Dimensions: 250x1400x732mm
- • Interior weight: 38.0 kg
- • Tuberia: Ø9,52/15,88mm
Y️ Control and Functionality
- • PAR-41MAA Command: Advanced control
- • Air flow: 29.5-42,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 33-40 dBA
- • Food: 230V/1~ 29.3A
▼ Ultra Power Annual Consumption
792 kWh/year cooling Δ 3070 kWh/year heating
Ultra High Power Optimized with Inverter Standard Series
Installation and Dimensions Standard Series Ultra Power

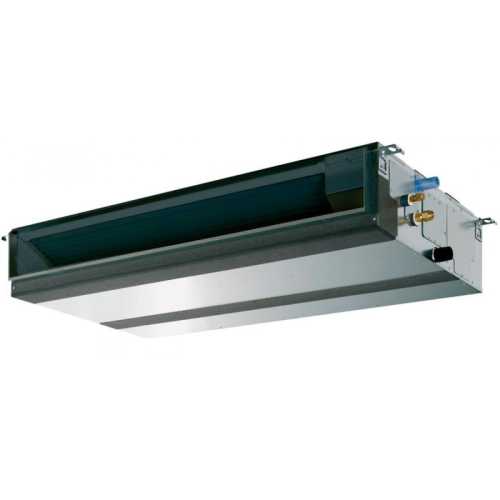

📐 Indoor Unit PEAD-M125JA
- • Dimensions: 250 x 1400 x 732 mm
- • Compact height: Only 250mm
- • Weight: 38.0 kg (ultra power)
- • Air flow: 29.5-35.5-42,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 33-36-40 dBA

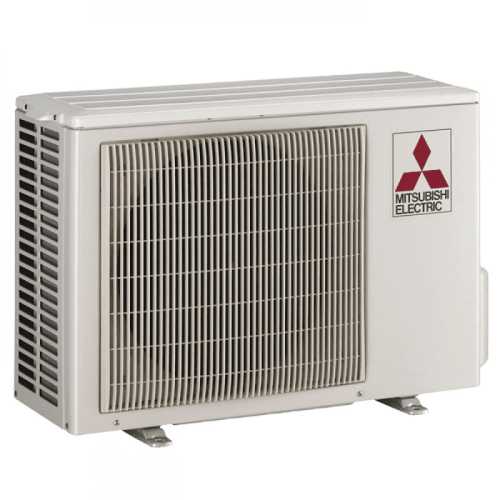

🏢 Outdoor Unit PUZ-M125VKA
- • Dimensions: 981 x 1050 x 330 mm (+40)
- • Weight: 84 kg (hard core)
- • Air flow: 86 m3/min
- • Sound level: 54 dBA
- • Food: 230V/1~ - 29.3A
- • Operation range: -15°C to +46°C

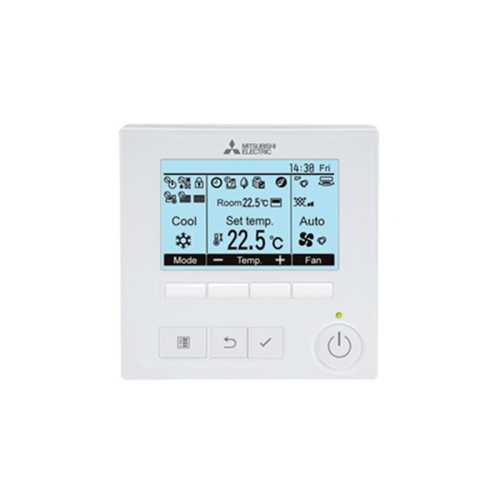

️ Control PAR-41MAA Ultra Power
Includes command PAR-41MAA with comprehensive control of the ultra-high power system. Full weekly programming, precision temperature control, intelligent automatic modes and industrial energy monitoring. Compatible with industrial automation systems and optional WiFi control.
Featured functions: Programming 7 days, Multizone Control, Automatic Eco Mode, Industrial Diagnosis
Industrial Industrial Connectivity
System prepared for advanced industrial integration. Optional WiFi connection MAC-587IF for full remote control by smartphone. Interface M-NET for integration with centralized energy management systems and industrial smart buildings.
Available options: Smart WiFi, centralized M-NET, External signals, Remote temperature sensor
Y️ Industrial Installation and Maintenance
Requirements Installation
- • Tuberia: Ø9,52/15,88mm
- • Max length: 65m total / 30m vertical
- • Electrical connection: 230V/1~ monophasic
- • Max intensity. : 29.3A
S️ Included Protections
- • Condensing control: Incorporated
- • Dehydrator filter: Standard series
- • Overload protection: Automatic
- • Self-diagnosis: Complete system
Gos️ Rangos Operation
- • Refrigeration: -15°C to +46°C ext.
- • Heating: -15°C to +21°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Es Industrial Warranty and Certifications
Warranty Mitsubishi Electric 日本語 CE Certification Cumple ErP 2021
Japanese quality with specialized technical support and national industrial service network
El Ultra High Power with MSPEZ-125VJA
12100W industrial air conditioning with efficiency A and advanced control PAR-41MAA
️
SEER 5.3 A
Industrial 792 kWh/year
🔥
COP 3.61
Heating 13500W ultra
🔇
33 dBA Controlled
Silence for ultra power
▪
230V Monof Classic
Standard installation
️ Control PAR-41MAA Include + R32 Ecological
Advanced command with weekly programming • Refrigerant Gas R32 reduced environmental impact • Japanese Inverter technology • Installation occult ducts • Spaces 100-150m2

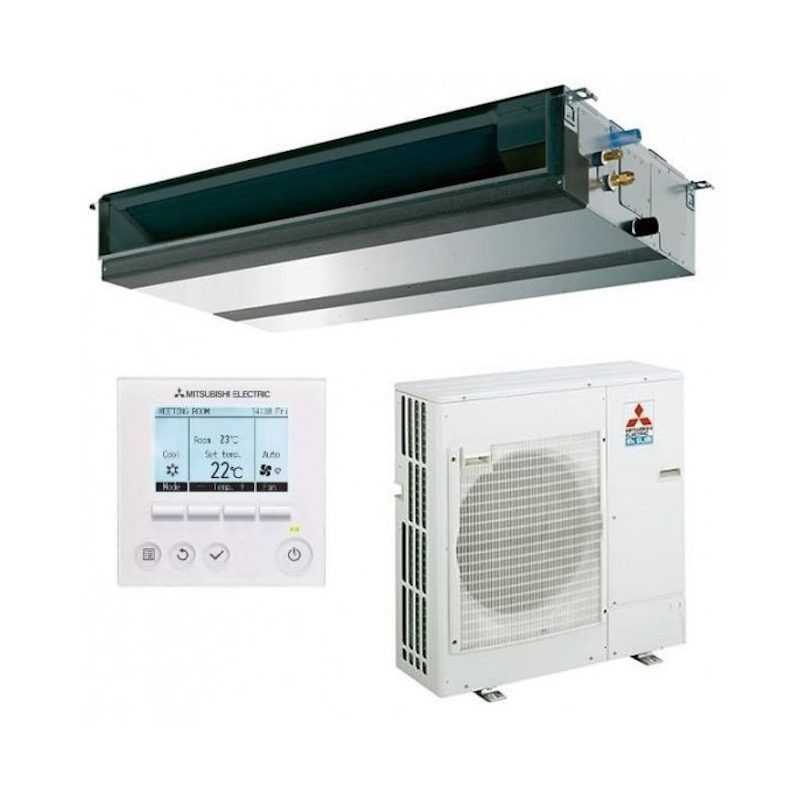

▷ Includes in the Price
- • Indoor Unit PEAD-M125JA
- • Outdoor Unit PUZ-M125VKA
- • PAR-41MAA
- • Basic installation kit
S Unique benefits
- • Warranty Mitsubishi Electric
- • Professional installation available
- • Specialized technical support
- • Certified efficiency
▪ Ultra High Power Available!
MSPEZ-125VJA with Inverter technology and efficiency A - Standard industrial series
🎯 Spaces: 100-150m2
▪ Consumption: 792 kWh/year
🌿 Gas: R32 Ecological
📱 Control: PAR-41MAA
🏆 Mitsubishi Electric Standard MSPEZ-125VJA series
Industrial air conditioning with Japanese technology • Advanced control PAR-41MAA included • Professional installation available
MSPEZ-125VJA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-M125JA
- Outdoor Unit
- PUZ-M125VKA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- Refrigerator capacity (kcal / h)
- Nominal consumption Cold (W)
- Energy class (cold)
- SEER
- Heat capacity (W)
- Heat capacity (Kcal / h)
- 11.610
- Nominal heat consumption (W)
- 3.730
- Energy class (heat)
- SCOP
- Minimum sound pressure UI DB
- Weight Indoor Unit (Kg)
- Weight Outdoor Unit (Kg)
- 84,0
- Diameter Liquid pipe
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Recommended area
- Estancia de 100m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 732 x 250
- EU dimensions (anxfxh) mm
